The centre bearing controls a long rotating shaft without making it rigid
A single long tube would need greater diameter and could reach bending critical speed. Dividing the propshaft allows better packaging and vibration control, while the centre bearing supports the intermediate junction.
Its rubber carrier isolates body noise and accommodates small powertrain movement, but it must not permit the shaft to orbit.
Propshaft support arrangements
| Arrangement | Support | Jointing | Service implication |
|---|---|---|---|
| Two-piece rear-drive shaft | One centre bearing. | Universal joint and sliding spline/CV. | Phasing and support preload matter. |
| Three-piece commercial shaft | Two carrier bearings. | Multiple universal joints. | Angles and support alignment interact. |
| AWD front/rear propshaft | Rubber-mounted intermediate bearing. | CV joints, flex discs or U-joints. | Often supplied as complete balanced shaft. |
| Torque-tube layout | Internal bearing/support. | Enclosed shaft. | Special disassembly and alignment. |
| Bonded non-serviceable carrier | Bearing and rubber fixed to tube assembly. | Factory balanced as one unit. | Complete propshaft replacement may be specified. |
| Retrofit split bearing | Application-specific repair design. | May avoid shaft separation. | Use only where engineered and approved. |

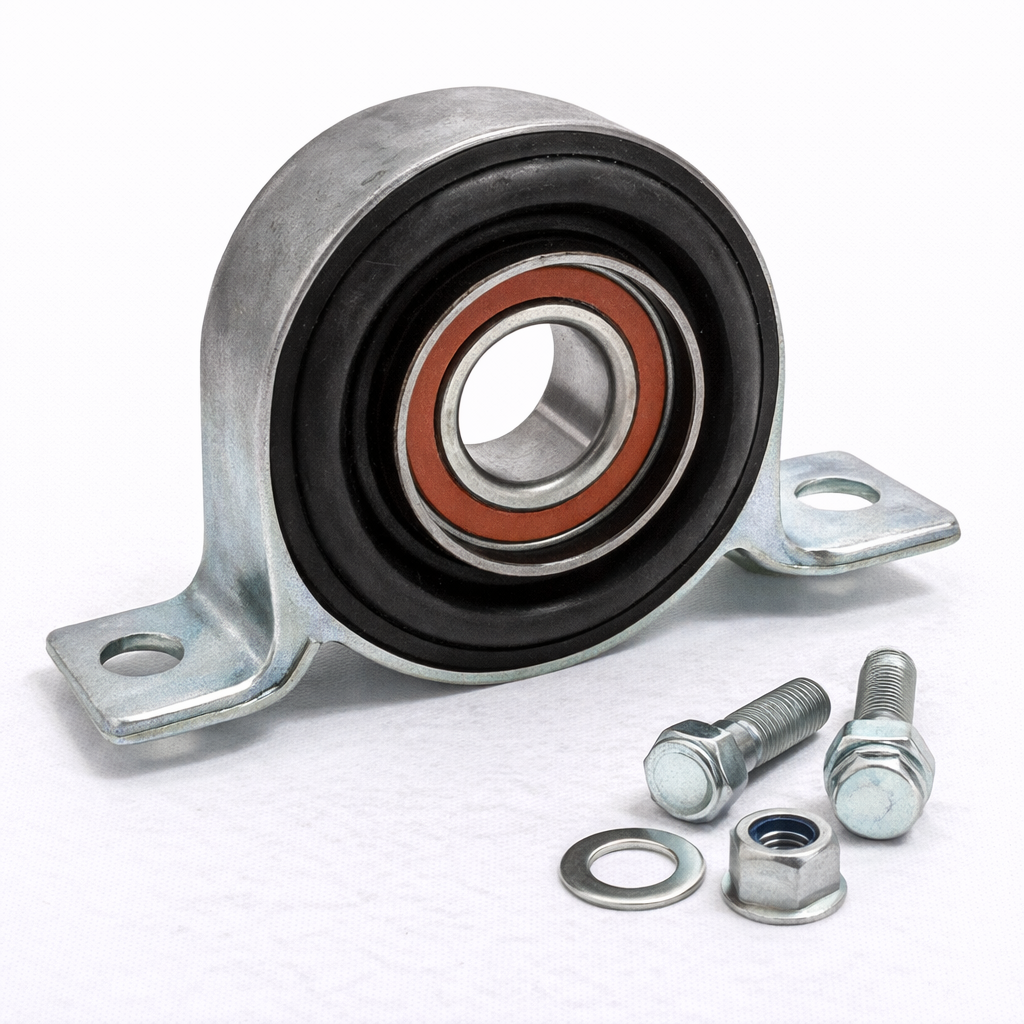

Bearing and rubber mount functions
The rolling element carries radial load from shaft mass and joint forces. Seals retain its grease. The surrounding elastomer tunes stiffness and absorbs high-frequency vibration while a steel bracket fixes the assembly to the body or crossmember.
A good bearing in torn rubber still permits damaging movement; a firm mount with a rough bearing transmits noise.
Critical speed and balance
Small eccentricity becomes a large force as rotational speed rises
Tube straightness, joint centring, balance weights and support position control vibration. Rotating force grows rapidly with speed, which is why a slight issue may be invisible around town but severe on a motorway.
Never remove weights or weld a shaft outside a specialist balancing process.
Part-identification details
| Detail | Variation | Effect of mismatch |
|---|---|---|
| Bearing bore | Shaft journal diameter and shoulder. | Loose fit or impossible installation. |
| Bracket offset | Height/lateral position relative to tunnel. | Wrong operating angles. |
| Mount orientation | Arrow, drain or asymmetric rubber. | Incorrect stiffness and short life. |
| Wheelbase/body | Shaft lengths and support crossmember. | Preload and bolt spacing differ. |
| Transmission/transfer case | Flange, slip and speed range. | Complete shaft family changes. |
| Included parts | Bearing only, rubber, bracket or assembly. | Old damaged pieces may remain. |
| Serviceability | Pressed, staked or bonded construction. | Disassembly may ruin shaft balance/integrity. |
Universal-joint phasing
Forks at each end of a conventional double-U-joint shaft are aligned so their speed fluctuations cancel at equal operating angles. Separating a sliding spline and refitting it one or more teeth out can create cyclic vibration.
Apply factory marks before separation if no permanent index exists, then verify workshop phasing data.
Support preload and bracket position
Some manufacturers specify moving the centre bearing a measured distance forward before tightening. This preloads rubber so driveline torque does not pull it into an unstable position.
Others require neutral, unstrained alignment. Never assume a universal preload direction or amount.
Symptoms and diagnostic distinctions
| Symptom | Centre-bearing possibility | Alternative | Evidence |
|---|---|---|---|
| Vibration at a road-speed band | Shaft orbit from bearing/mount wear. | Wheel/tyre or shaft balance. | Frequency and lift inspection. |
| Thump on take-up | Torn rubber allows shaft movement. | U-joint, mount, differential lash. | Loaded movement with safe restraint. |
| Hum increasing with speed | Dry/rough centre bearing. | Wheel or final-drive bearing. | Chassis ears and hand rotation off vehicle. |
| Shudder only under acceleration | Support position changes joint angle. | Inner CV, engine mount or misfire. | Load/frequency and mount geometry. |
| Metallic scrape in tunnel | Sagging support lets shaft touch. | Loose heat shield/exhaust. | Contact marks and static clearance. |
| New vibration after service | Phasing/preload/orientation error. | Flange not seated or lost weight. | Review marks, runout and torque. |
Road-test observations
Record exact road speed, gear, engine speed and throttle direction. If vibration follows road speed through several gears, rotating driveline or wheels are more likely than engine order. Safely compare drive, coast and very brief neutral only where legal and appropriate.
Severe vibration demands stopping; it can loosen flanges or fracture the mount.
Under-vehicle inspection
With the vehicle securely raised, inspect torn rubber, shiny contact marks, missing bracket fasteners, heat damage and displaced dust shields. Move the shaft gently to assess support without forcing joints beyond their range.
Do not run a driven vehicle on ordinary stands. Rotating shafts can catch clothing and fail violently.
Distinguishing joint faults
A seized universal joint may feel notchy off the vehicle and creates changing angle loads that quickly damage the centre bearing. CV joints can bind, lose grease or develop axial play. Flex discs crack around bolt sleeves.
Replace related worn parts and preserve their correct bolt orientation.
Shaft runout and tube damage
Measure runout at specified positions with the shaft supported as instructed. Dents, previous clamp marks or incorrect lifting under the tube can alter balance and strength.
Specialist assessment or complete replacement is safer than heating or hammer-straightening a thin high-speed tube.
Preparation for removal
Park securely, isolate relevant electrical systems and remove exhaust/undertrays with support. Index flanges, shaft sections and sliding splines using durable marks. Record centre-bracket position before loosening.
Use a transmission stand or helper because long assemblies shift as the last bolt comes free.
Flange and flex-disc fasteners
Counter-hold the flange rather than loading the transmission in gear alone. Note bolt direction through a flexible coupling; arrows or moulded bosses may indicate which flange each bolt head faces.
Renew nuts/bolts where specified and never reuse a deformed locking nut.
Separating the shaft
Keep permanent and added phasing marks aligned. Use a puller or press for tight splines and bearings; striking the tube or universal-joint yoke causes damage. Support races correctly during pressing.
Some staked joints or bonded carriers make the shaft non-serviceable. Stop rather than cutting before confirming repairability.
Bearing removal and installation
Remove dust shields, snap rings and sleeves in sequence. Press the bearing off by its correct race and inspect the journal for fretting or wear. Clean without reducing diameter.
Install by loading only the race with an interference fit. Face seals, shields and the rubber bracket in their marked direction.
Reassembly alignment
Restore shaft phasing and seat all splines/flanges. Fit the centre bracket loosely, attach end flanges and set vehicle ride-height or mount position as required. Apply measured support preload only if specified, then torque the bracket.
Check exhaust and heat-shield clearance through expected driveline movement.
Post-installation checks
Rotate the complete shaft by hand and inspect for binding. Verify every fastener mark and wiring/heat shield. Begin the road test at low speed, then increase progressively while monitoring vibration.
After cooling, re-inspect bracket seating, flange security, rubber position and evidence of heat.
Operating limits and upgrades
Raised suspension, lowered ride height, power increases and altered engine/axle position change joint angles and bearing load. A stiffer mount can transmit noise and does not correct geometry.
Modified vehicles need driveline-angle and critical-speed assessment, not merely a stronger-looking carrier.
UK roadworthiness and urgency
An insecure propshaft or support can cause loss of drive, floor damage or shaft detachment. Stop for heavy knocking, visible sag, loose bracket, binding or severe speed-related vibration.
Driveline security is relevant to UK roadworthiness; an MOT pass does not guarantee a bearing will remain safe after symptoms begin.
Common mistakes
- Ordering without wheelbase, transmission and shaft type.
- Separating a spline without marking phasing.
- Removing balance weights or striking the tube.
- Pressing through the rolling elements.
- Fitting the rubber carrier backwards.
- Inventing centre-bracket preload.
- Ignoring a seized U-joint that overloaded the old bearing.
- Running a driven shaft on unsuitable stands.
Practical propshaft-bearing FAQs
Q: What is a propshaft centre bearing?
A: It supports the middle of a multi-piece propeller shaft in a rubber carrier.
Q: Can the bearing be replaced separately?
A: Only if the shaft design and manufacturer procedure make it serviceable.
Q: Why does vibration occur at one speed?
A: Imbalance or support movement can excite a shaft resonance.
Q: What is propshaft phasing?
A: It is the designed angular alignment of yokes and shaft sections.
Q: Must the bracket be preloaded?
A: Only by the direction and amount specified for that vehicle.
Q: Can torn rubber be replaced without the bearing?
A: It depends on how the carrier assembly is supplied and bonded.
Q: Can a U-joint damage the centre support?
A: Yes, binding or play transfers abnormal loads to it.
Q: Should balance weights be removed?
A: No; preserve them and use a driveline specialist for balancing.
Q: Can the shaft tube be hammered straight?
A: No; improper straightening compromises balance and strength.
Q: Why mark flange positions?
A: Restoring orientation helps preserve runout and balance relationships.
Q: Are flange bolts reusable?
A: Renew any specified single-use bolt or locking nut.
Q: When should driving stop?
A: Stop for severe vibration, knocking, sag or loose support.
Q: What confirms a sound repair?
A: Correct phasing/preload, secure fasteners and smooth operation through speed.
