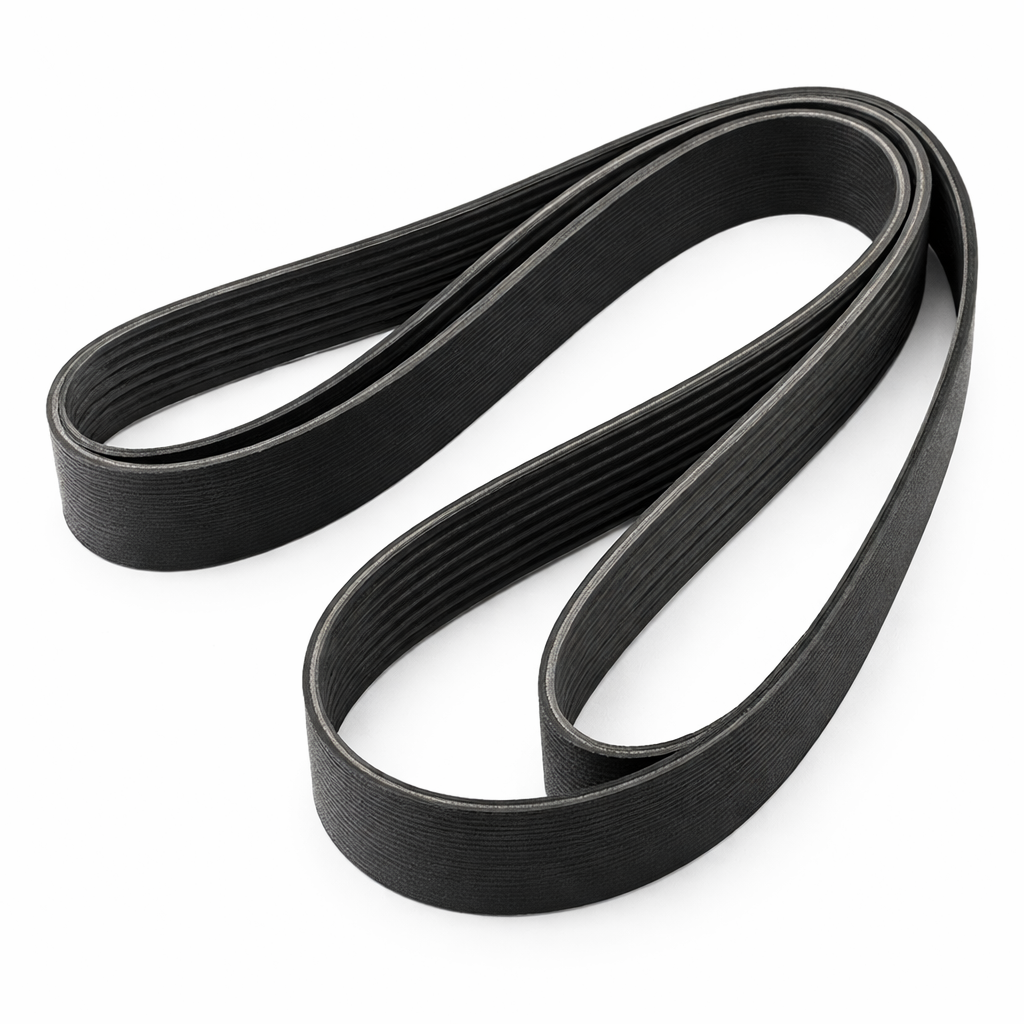

The multi-rib belt transfers engine torque through a compact serpentine route
Longitudinal ribs provide a large friction area while the flexible belt bends around small driven and idler pulleys. One belt can serve several accessories.
Correct tension and alignment let each rib share load. A small tracking error repeatedly works the belt edge and cords until they fail.
Belt constructions
| Element | Function | Typical material | Failure evidence |
|---|---|---|---|
| Rib compound | Transmits frictional torque. | Engineered EPDM compound. | Profile wear, chunks or contamination. |
| Tension cords | Control length and carry tensile load. | Polyester/aramid application-dependent. | Stretch, fray or snapped strands. |
| Backing layer | Protects cords and runs on smooth pulleys. | Wear-resistant elastomer/fabric. | Glaze, cuts and backside cracking. |
| Rib fabric/coating | Controls friction and noise on some belts. | Low-wear textile/coating. | Polish or delamination. |
| Stretch-fit construction | Maintains tension without a tensioner. | Elastic cord system. | Incorrect installation stretch. |
Rib count and effective length
Nominal markings describe geometry, not complete application
A code commonly indicates rib count and an approximate effective length. Manufacturing system and application tolerances still require the correct reference.
A belt one rib narrower may appear to run but concentrates load and leaves grooves exposed. A length error moves the tensioner outside its working arc.
Automatic tensioners
A spring arm applies belt tension while a damping element controls oscillation. Its pulley must remain aligned as the arm moves through the operating range.
A seized pivot, weak spring or failed damper causes flutter, slip and noise. Replacing only the belt leaves abnormal dynamic load unchanged.
Stretch-fit systems
These belts use their elastic construction to maintain load without an adjustable tensioner. Installation requires a guide that walks the belt on without damaging cords.
They are generally removed by the specified tool or cutting when discarded. A used stretch belt may not retain the installation characteristics for reuse.
Overrunning alternator pulleys
A one-way clutch or decoupler lets the alternator smooth torsional speed changes. When seized, it forces crankshaft pulses back into the tensioner.
Excess arm movement, chirp at shutdown or cap contamination can be clues. Test with the designated method and tools.
Crankshaft dampers
Many crank pulleys include a rubber-isolated torsional damper. Separation or radial shift changes belt alignment and may create timing-reference or accessory problems.
Marking the inner and outer rings can reveal relative movement during controlled checks. Replace a deteriorated damper rather than aligning other pulleys around it.
Part selection
Use VIN and option equipment, then verify the routing diagram and pulley count. Check belt code, rib number and whether a second drive is hidden behind the main belt.
Never infer length from the old tensioner position alone. A previous wrong belt can create a misleading baseline.
Wear patterns
| Pattern | Likely mechanism | System checks |
|---|---|---|
| Rib-profile material loss | Normal wear or abrasive pulleys. | Gauge profile and inspect grooves. |
| One damaged edge | Misalignment or flange contact. | Pulley planes, brackets and bearings. |
| Chunks missing | Severe ageing, debris or seizure. | All pulley rotation and foreign objects. |
| Glazed ribs | Slip, low tension or overload. | Tensioner and accessory load. |
| Longitudinal splitting | Groove damage or incorrect seating. | Rib pitch, burrs and route. |
| Backside cuts | Damaged smooth pulley or contact. | Idlers, shields and debris. |
Modern belt inspection
EPDM belts can lose rib material without showing the dramatic transverse cracks associated with older compounds. Use a profile/wear gauge where appropriate.
Inspect across the full length by turning the engine safely in its normal direction. Never reach into the drive while it is running.
Noise diagnosis
A high-pitched squeal often indicates slip; a rhythmic chirp commonly follows misalignment or local contamination. Rattle can come from tensioner or pulley bearings.
Water spray and dressing are not reliable diagnostic cures and can damage modern compounds. Use alignment, tension and acoustic evidence.
Contamination
Oil and fuel can swell rubber; coolant dries to abrasive or slippery deposits. Find and repair the leak before installing a new belt.
Clean pulleys with an approved residue-free method. A contaminated belt is normally replaced rather than washed with solvent.
Alignment measurement
Use a straightedge or purpose-designed laser against known pulley faces. Check offset and angular misalignment across the tensioner's movement.
Bent brackets, worn bearings and incorrectly seated pulleys cause recurring edge wear. Do not add improvised washers to align a safety-critical drive.
Pulley inspection
With the belt removed and engine isolated, rotate each permissible pulley for roughness and play. Check groove damage, rust and embedded fragments.
Some accessories have normal magnetic or compression resistance; use component-specific checks. Never spin an alternator with compressed air.
Tensioner inspection
Observe indicator position, arm alignment and damping. With safe unloading, move through the stated range without binding or excessive side play.
A tensioner can apply static force yet fail dynamically. Excessive flutter at idle or shutdown requires investigation of pulleys and torsional inputs.
Safe preparation
Disconnect power as required and disable start-stop, hybrid restart and remote start. Remove guards only after the engine is fully stopped and keys controlled.
Allow exhaust and coolant components to cool. Support the engine if a mount must be removed and keep the work area clear of spring-tool escape paths.
Recording the route
Use the official diagram and photograph the original layout. Note which pulleys contact ribs and which run on the backing.
Incorrect routing can reverse a water pump, reduce pulley wrap or place the tensioner on the wrong span even when the belt appears to fit.
Releasing tension
Use the designed square, hex or pin and a controlled long-handled tool. Move only in the release direction and lock with the specified pin if allowed.
Do not place fingers between belt and pulley. If the tool slips, stored spring force can trap or strike hands.
Installation controls
| Stage | Control | Failure prevented |
|---|---|---|
| Part comparison | Correct ribs, length and construction. | Wrong tension or load capacity. |
| Pulley cleaning | Dry grooves with no burrs or fluid. | Slip and rib cutting. |
| Routing | Official ribbed/smooth contact path. | Reverse drive or poor wrap. |
| Final pulley | Accessible, low-flange point selected. | Lever damage. |
| Tension release | Return arm slowly and fully. | Shock and tool injury. |
| Seating check | Every rib centred on every grooved pulley. | Immediate shredding. |
Stretch-belt installation
Mount the dedicated guide on the specified pulley, engage the belt and rotate the crank in the correct direction using the approved fastener.
Keep the belt untwisted and follow tool removal timing. Screwdrivers and cable ties can cut ribs, over-stretch cords or damage pulley flanges.
Manual rotation and first start
Turn the engine through the specified revolutions and recheck seating. Refit guards and clear all tools before reconnecting automatic-start functions.
Start from a safe viewing position and watch tracking briefly. Stop immediately for walk-off, smoke, abnormal flutter or contact.
Service intervals and operating limits
Follow time, distance and inspection requirements for the exact vehicle. Severe heat, dust, fluid exposure and high accessory load can shorten life.
A belt inside its interval still needs replacement when damaged. Conversely, age alone should be evaluated against the stated maintenance schedule and evidence.
Common mistakes
Errors include ordering by length only, fitting one rib off, routing around the wrong side of an idler and using belt dressing to hide slip.
Others are ignoring contamination, tensioner faults, alternator decoupler or damper separation, levering on a stretch belt and working with start-stop enabled.
Safety and roadworthiness context
Belt loss can stop coolant circulation, charging, vacuum generation or hydraulic steering assistance depending on layout. Warning lamps and temperature rise can follow quickly.
Do not continue with shredding, smoke, seized accessories or rising temperature. Stop safely and recover the vehicle before belt debris or overheating causes further damage.
Practical V-ribbed-belt FAQs
Q: Is a V-ribbed belt the same as a timing belt?
A: No; it normally drives external accessories.
Q: Can belt length alone identify the part?
A: No; ribs, construction and vehicle layout also matter.
Q: Why are there few visible cracks?
A: Modern EPDM often wears by rib material loss instead.
Q: Should belt dressing stop squeal?
A: Diagnose tension, alignment and contamination instead.
Q: Can a stretch belt be levered on?
A: No; use its dedicated installation guide.
Q: Why does a new belt walk sideways?
A: Check routing, alignment, pulley seating and bearings.
Q: Must the tensioner be replaced with every belt?
A: Inspect it and follow the application service requirement.
Q: Can an oil-soaked belt be cleaned?
A: Repair the leak and replace the contaminated belt.
Q: What causes tensioner flutter?
A: Damper, decoupler, accessory or torsional faults can contribute.
Q: May I turn the engine using an alternator nut?
A: Use the specified crankshaft turning point.
Q: Does a wider belt always fit?
A: No; every rib must match the designed pulley width.
Q: Why record the route?
A: Wrong routing can reverse pumps or reduce pulley wrap.
Q: What confirms correct fitting?
A: Centred tracking, stable tension and normal accessory operation.
