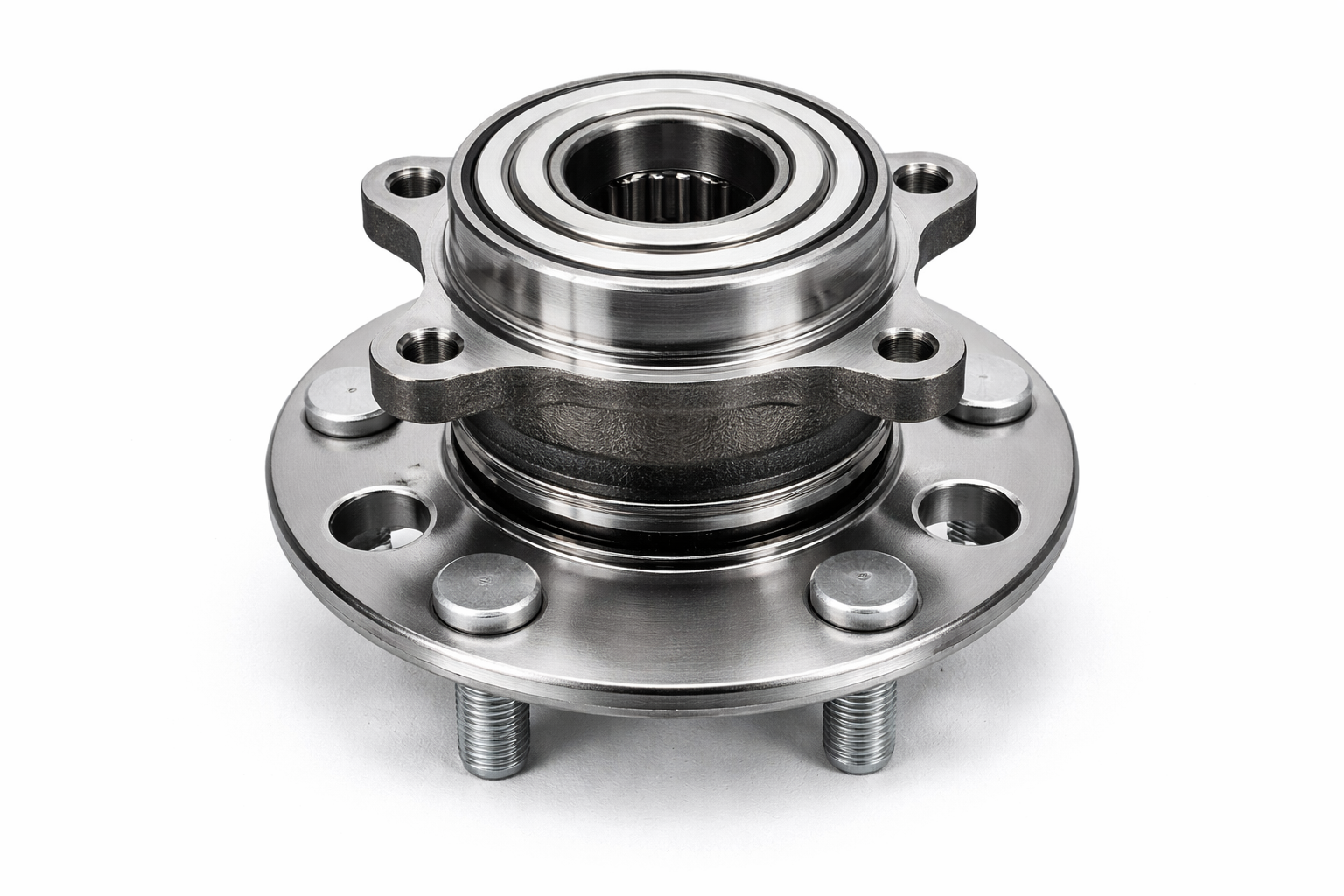

The wheel hub is the vehicle's rotating wheel-location datum
The centre bore, wheel pilot, fixing circle and brake-disc face all depend on the hub flange being dimensionally true. The hub carries radial road load, axial cornering load and torque in both directions while maintaining the wheel and disc on a precise axis.
Small errors matter. Dirt beneath a disc can create measurable run-out; a damaged pilot can prevent a wheel seating; an incorrect flange offset can misalign the brake and alter wheel position.
Hub, bearing and hub unit are different parts
| Arrangement | What rotates | Typical service method | Selection caution |
|---|---|---|---|
| Separate pressed hub | Flange is supported by a press-fit bearing in the knuckle. | Hub and bearing are pressed apart with controlled support. | A removed bearing may be destroyed even if it seemed quiet. |
| Bolt-on hub-bearing unit | Flange and bearing form a sealed assembly. | Unit bolts to the knuckle or axle carrier. | ABS encoder, connector and fixing pattern must match. |
| Serviceable tapered bearings | Hub runs on inner and outer tapered rollers. | Bearings are greased and adjusted to a specified method. | Preload/end-float procedure is vehicle-specific. |
| Driven hub | Driveshaft splines transmit torque through the hub. | Hub nut/bolt controls clamping of shaft and bearing. | Spline form and fastener specification are critical. |
| Non-driven hub | Hub rotates on a stub axle or integrated unit. | May use a nut, cap, carrier bolts or press fit. | Do not assume a visually similar driven version fits. |
How loads pass through the assembly
Vehicle mass and road impacts enter through the tyre and wheel, cross the wheel-to-flange interface, and pass through the bearing into the knuckle or axle. Braking torque travels from the disc through its fixing interface and hub; drive torque travels through shaft splines on a driven axle.
The load reverses during acceleration, overrun and direction changes. That is why flange fatigue, bearing-seat damage and loose splines can worsen quickly once movement begins.
Fitment details that decide compatibility
Wheel and brake geometry
Confirm the pitch-circle diameter, number and type of wheel fixings, centre pilot, flange diameter, disc location and flange offset. A difference of a few millimetres can create contact, brake misalignment or unsafe thread engagement.
Driveshaft and bearing geometry
Driven hubs require the correct spline count, diameter, depth and shoulder. Pressed hubs require a bearing bore and shoulder that suit the specified bearing. Do not choose by outer appearance alone.
ABS provision
Some systems read a toothed ring; others read alternating magnetic poles moulded into a bearing seal. The correct encoder side must face the sensor. A non-magnetic screwdriver cannot reliably identify every encoder, so use suitable viewing film or service data.
Components and interfaces to inspect
| Area | Inspection | Why it matters |
|---|---|---|
| Wheel pilot and face | Corrosion, burrs, cracks and fretting. | Controls wheel seating and concentricity. |
| Studs or threaded holes | Stretch, cross-threading, damaged seats and movement. | Provides wheel clamp load. |
| Brake-disc face | Run-out, rust scale and impact damage. | Sets disc alignment. |
| Bearing seat/shoulder | Scoring, spinning, ovality and corrosion. | Controls bearing fit and axial position. |
| Spline | Fretting, twist, wear and debris. | Transfers drive/braking torque. |
| Encoder or tone ring | Cracks, missing teeth, magnetic debris and wrong orientation. | Creates wheel-speed signal. |
| Protective cap and seal lands | Distortion, grooves and leakage paths. | Excludes water and retains lubricant. |
Materials and manufacture
Hubs are commonly forged or cast from steel or iron and then machined at the bearing, wheel, disc and spline datums. Local heat treatment may provide a hard wear surface while the core retains toughness. Studs are high-strength fasteners installed by interference or another controlled retention method.
Surface coatings slow corrosion but must not create uncontrolled thickness on precision seats. Grinding away corrosion from a damaged pilot can remove location material as well as rust.
Fault symptoms need separation from nearby causes
| Symptom | Hub-area possibilities | Useful next check | Urgency |
|---|---|---|---|
| Wheel movement | Bearing wear, loose fastener, worn seat or fractured hub. | Lift safely and measure movement while separating joint play. | Stop driving until assessed. |
| Speed-related hum | Bearing race damage. | Compare road-load behaviour and inspect tyres first. | Prompt diagnosis. |
| Brake judder/run-out | Dirty or distorted flange. | Measure bare-hub and installed-disc run-out. | Repair before braking deteriorates. |
| ABS warning | Encoder damage, excessive air gap or bearing play. | Scan live wheel speeds and inspect signal pattern. | Prompt; assistance may be disabled. |
| Loose wheel fixing | Damaged thread, seat or cracked flange. | Do not retighten blindly; inspect wheel and all fixings. | Immediate safety issue. |
| Heat at one wheel | Bearing distress or brake drag. | Compare temperatures safely and inspect both systems. | Stop if severe, smoking or noisy. |
Measuring flange and disc run-out
Remove rust and trapped debris without removing base metal. Mount a dial indicator securely, rotate the hub slowly and record total indicated run-out at the specified radius. Mark high points. Then fit the disc in its service position with suitable temporary clamping and measure again.
If disc run-out changes when indexed to a different stud position, diagnose the combined disc/flange relationship. Do not compensate for a damaged hub with uncontrolled machining or spacers.
Safe removal and pressing
Support the vehicle on approved stands and prevent strain on hoses and sensor wiring. Staked or prevailing-torque shaft fasteners are often one-use. Use a hub puller that reacts through the correct structure; striking the shaft can damage threads, joints and transmission components.
For a pressed assembly, map the load path before operating the press. When pushing a hub into an inner bearing race, support that inner race. When installing the outer race into a knuckle, support or drive the outer race. Force through the balls or rollers produces brinelling and an early hum.
Cleaning, lubrication and fastener rules
Keep bearing and encoder surfaces clean. Apply grease or anti-corrosion compound only where the vehicle or component procedure permits; lubricating a dry-specified wheel or hub fastener changes clamp load. Driveshaft splines may have a named lubricant or may be assembled dry.
Use new circlips, self-locking nuts, stake nuts, stretch bolts and seals wherever specified. Torque values depend on thread, coating, lubrication state and tightening sequence, so a generic figure is unsafe.
Post-installation checks
Before fitting the wheel, check rotation and any specified end float. Verify the disc sits flat and measure run-out if the repair followed a judder complaint. Route ABS wiring exactly as designed and inspect the sensor air gap where accessible.
Torque wheel fixings with the vehicle safely positioned and use the correct pattern. During a careful road test, monitor noise, braking feel and wheel-speed data. Stop for abnormal heat, looseness or warning lamps.
UK MOT and road safety
Excessive wheel-bearing play, roughness, insecure wheel attachment, seriously weakened components and relevant ABS defects can lead to MOT failure or dangerous defects. The MOT is a minimum roadworthiness inspection, not proof that a developing hub fault is acceptable until the next test.
A cracked flange, moving stud or insecure wheel requires recovery or repair rather than continued driving.
Practical wheel-hub FAQs
Q: Is a wheel hub the same as a wheel bearing?
A: No. The hub locates the wheel; the bearing supports its rotation. They may be separate or supplied as one unit.
Q: Can I reuse the bearing after pressing the hub out?
A: Often not. Removal can separate or load the bearing destructively; follow the specified service method.
Q: Does every hub include wheel studs?
A: No. Check the listing and vehicle design; studs, bolts, caps and bearings may be separate.
Q: Can a hub cause brake judder?
A: A distorted or contaminated flange can create disc run-out, but the disc, caliper and suspension also need diagnosis.
Q: Why did the ABS light appear after bearing work?
A: Possible causes include a reversed encoder bearing, damaged ring, trapped debris, wrong air gap or disturbed wiring.
Q: May I hammer a hub into a new bearing?
A: No. Use controlled tooling with the correct race supported to avoid precision and bearing damage.
Q: Are driveshaft nuts reusable?
A: Many are staked, locking or torque-to-yield items. Treat them as one-use when the procedure says so.
Q: Should I grease wheel studs or bolts?
A: Only if the vehicle instructions specify it. Lubrication can produce excessive clamp load at a dry torque value.
Q: How is hub run-out checked?
A: Clean the flange and use a dial indicator at the specified radius while rotating the hub slowly.
Q: Can tyre noise resemble a hub-bearing hum?
A: Yes. Feathered or cupped tread can sound similar, so inspect tyres and compare the noise under controlled loading.
Q: Is slight wheel play safe?
A: Play must be compared with the manufacturer's limit and design. New or obvious movement needs prompt assessment.
Q: Must both hubs on an axle be replaced?
A: Not automatically. Inspect both, but replace based on condition, design guidance and diagnosis.
Q: What should be checked after replacement?
A: Rotation, play/preload, disc run-out, fastener torque, ABS operation, road-test noise and abnormal heat.
