Final Drive
Final drive parts: getting engine power to the road
The final drive is the last stage of the drivetrain before power reaches the tyres. It takes the torque leaving the gearbox and transmits it through the differential and shafts to the wheels, while allowing the left and right wheels to rotate at different speeds when cornering. On front-wheel-drive cars this is typically a transaxle arrangement with driveshafts and CV joints; on rear-wheel-drive vehicles it usually involves a propshaft, differential, and half shafts.
When final drive components are in good condition you’ll feel smooth take-up, quiet running and predictable traction. When they’re worn or damaged, symptoms can range from clicking on full lock to vibration under load, driveline clunks, or oil leaks around seals. Because these parts handle high torque and constant movement, small issues (like a split CV boot) can quickly turn into bigger failures if contamination gets inside.
Common component types in the final drive
- Driveshafts (complete shafts for FWD/AWD)
- CV joints and CV joint kits (inner/outer joints, often with grease and clips)
- CV boots and boot kits (protect joints from water and grit)
- Propshafts and universal joints (common on RWD/4x4)
- Flanges, stub axles, and mountings/support bearings
- Differential seals and related hardware to control leaks and maintain lubrication
| Vehicle layout | Typical final drive hardware | Most common early warning signs |
|---|---|---|
| Front-wheel drive | Driveshafts, inner/outer CV joints, CV boots | Clicking on full lock, grease on wheel/arch, vibration on acceleration |
| Rear-wheel drive | Propshaft, U-joints, differential, flanges, half shafts | Clunk on take-up, vibration at speed, whine under load |
| 4x4 / AWD | Combination of shafts, joints, multiple differentials, mountings | Judder, knocks, drivetrain binding, oil leaks |
| Part group | What it does | Why it matters |
|---|---|---|
| CV boot / boot kit | Seals in grease and keeps dirt out | Split boots can rapidly ruin a CV joint |
| CV joint / kit | Transfers torque while steering/suspension moves | Wear can cause clicking, vibration, and loss of drive |
| Diff seal | Keeps gear oil inside the differential | Leaks risk low oil level and accelerated gear/bearing wear |
Explore the compatible final drive parts for your vehicle in the listings below.
Your Current Vehicle
Or
Final Drive Parts
Shop Final Drive by Brand
Vehicle Models and Options for Final Drive
Final Drive Subcategories
Only subcategories containing verified fitment products are shown.
Final drive: how the drivetrain delivers torque to the wheels
1) What the final drive is
The final drive is the set of components that transfers torque from the gearbox output to the driven wheels. It typically includes a reduction gear stage (the “final drive ratio”), the differential mechanism that allows wheel speed differences in corners, and the shafts/joints that physically carry drive to the hubs. In everyday terms: it’s the hardware that turns engine and gearbox output into usable movement at the tyres.
Because the final drive sits under constant load, any wear tends to show up as noise, vibration, or leaks. It’s also a safety-critical area: a failing joint or badly worn universal joint can lead to sudden loss of drive or unpredictable handling.
2) How it works (step-by-step)
- Torque leaves the gearbox through an output shaft or flange.
- Reduction happens at the final drive gears (often within the transaxle or differential casing), lowering rotational speed and increasing torque.
- The differential splits torque between left and right outputs while allowing different wheel speeds during cornering.
- Shafts transmit torque to each hub: driveshafts with CV joints (common on FWD/AWD) or half shafts (common on RWD/4x4 setups).
- Joints accommodate movement: CV joints handle steering angle and suspension travel; universal joints handle angular change along the propshaft.
- Hubs and wheel bearings support the load while the tyres convert torque into traction at the road surface.
3) What final drive performance depends on
- Correct lubrication: appropriate gear oil grade, correct fill level, and clean oil are vital for gears and bearings.
- Sealing integrity: diff seals and CV boots prevent oil loss and contamination.
- Joint condition: CV joints and U-joints must be smooth, tight, and properly greased.
- Alignment and mountings: worn mountings/support bearings can introduce vibration and accelerate wear.
- Operating environment: potholes, kerb strikes, water ingress, and heavy towing loads increase stress.
4) Vehicle types and applications
Final drive layouts vary by vehicle design:
- Front-wheel drive (FWD): transaxle final drive with two driveshafts, inner and outer CV joints, and CV boots.
- Rear-wheel drive (RWD): gearbox to propshaft to differential, then half shafts to the rear hubs; universal joints and propshaft mountings are common wear points.
- All-wheel drive (AWD) / 4x4: multiple differentials (front/rear/centre), several shafts, and more joints—excellent traction but more service points.
- Light commercial vehicles: often operate at higher loads; robust shafts, bearings, and careful lubrication checks matter even more.
5) Modern technologies and related systems
Modern drivetrains integrate the final drive with electronic and stability systems:
- Traction control and ESC: brake interventions and torque management can load the drivetrain suddenly, making sound joints and mountings important.
- Electronic limited-slip functions: some vehicles simulate a limited-slip diff using braking; others use mechanical or electronically controlled LSDs.
- ABS wheel speed sensors: not final drive parts, but faults can mimic drivetrain symptoms (juddering, traction events), so diagnosis matters.
- Hybrid/EV drivetrains: often use reduction gearing and differential arrangements with high instant torque; sealing and bearing condition are critical.
6) Development and evolution (quick overview)
Early vehicles used simple bevel gear differentials and solid shafts with limited joint complexity. As suspension travel increased and front-wheel drive became widespread, constant-velocity joints became the standard because they can transmit torque smoothly at greater steering angles and suspension movement. Over time, sealing materials improved, boots became more heat- and ozone-resistant, and differentials evolved to include limited-slip designs to improve traction.
7) Core components explained (detailed breakdown)
Differential (final drive assembly)
The differential contains the final drive gearset and the mechanism that allows wheel speed difference. Bearings support the gears under load; seals keep gear oil in. A worn diff can whine, clunk, or leak. Because internal wear is progressive, catching low oil level early is key.
Driveshafts and half shafts
Driveshafts carry torque from the diff outputs to the hubs. On FWD cars, each shaft typically has an inner joint (to cope with suspension movement and plunge) and an outer joint (to cope with steering angle). Shaft straightness and balance affect vibration, especially under acceleration.

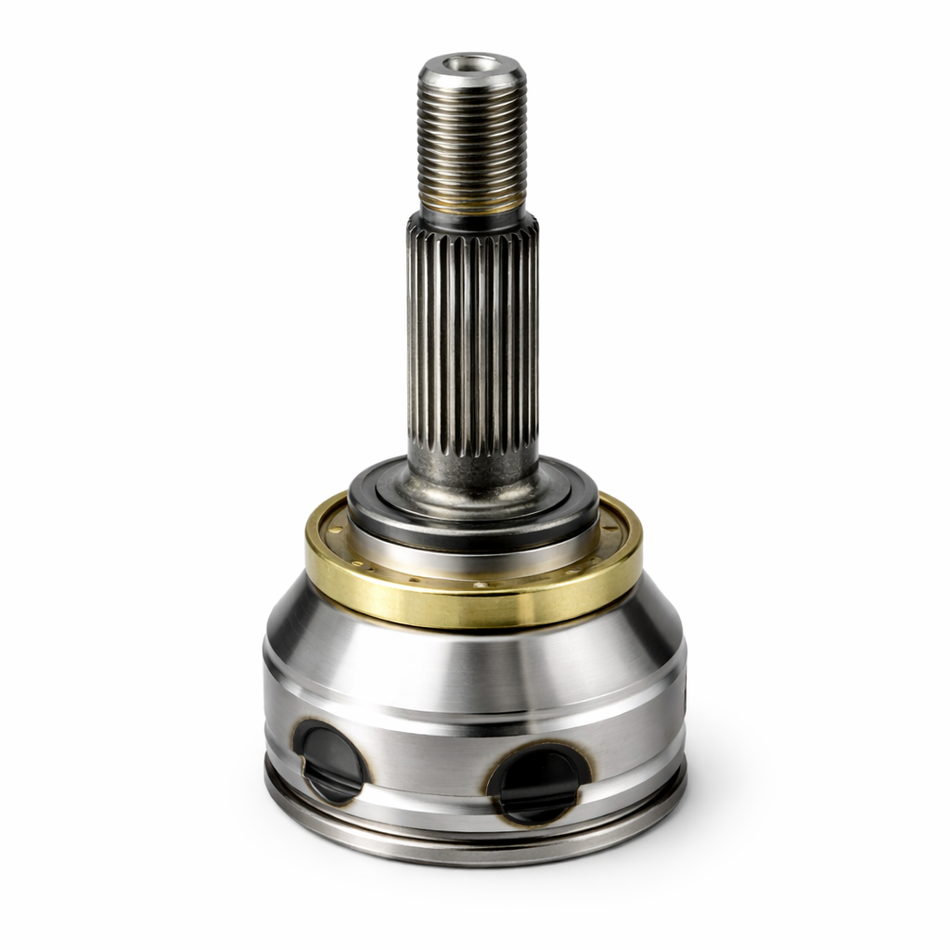

CV joints (inner and outer)
CV joints use ball bearings or tripod rollers to transmit torque at changing angles with minimal speed fluctuation. Outer CV joints commonly click when worn, particularly on full steering lock. Inner joints more often cause vibration or shudder under load.
CV boots and boot kits
CV boots are flexible covers that retain grease and keep out water and grit. A small split can fling grease onto the wheel arch and quickly contaminate the joint. Boot kits typically include clamps and grease; fitting requires clean handling and correct clamping to prevent leaks.

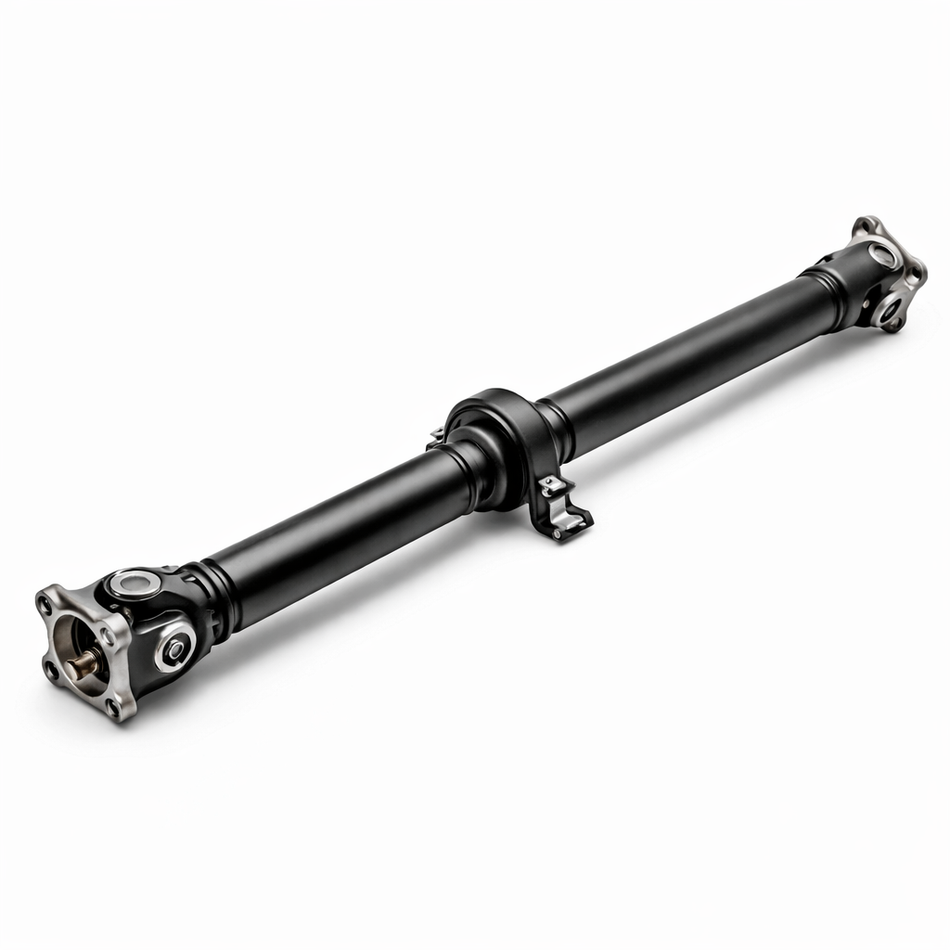

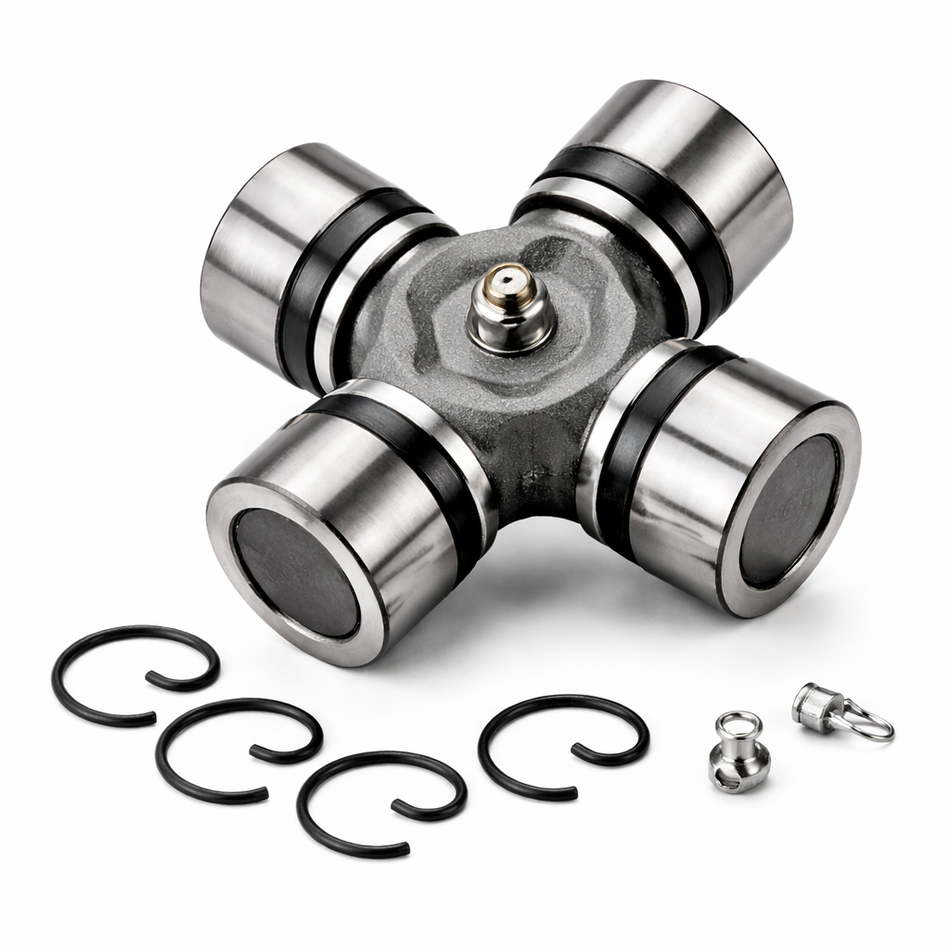

Propshafts, universal joints, and mountings
On RWD and many 4x4 vehicles, a propshaft links gearbox to differential. Universal joints allow angular movement; centre support bearings and mountings stabilise long shafts. Wear here often creates vibration at certain speeds or a clunk when taking up drive.
Flanges, stub axles, and fixings
Flanges connect shafts to differentials/gearboxes; stub axles can form part of hub or axle assemblies. These parts must match the correct spline count, bolt pattern, and fitment for reliable torque transfer.
8) Comparison tables
CV joint designs: where each is used
| Design | Typical position | Strengths | Common symptoms when worn |
|---|---|---|---|
| Rzeppa (ball-type) | Outer CV joint | Handles high steering angles smoothly | Clicking on full lock; grease leakage if boot fails |
| Tripod (roller-type) | Inner joint (often) | Allows plunge (in/out movement) with suspension travel | Vibration on acceleration; shudder under load |
| Double offset / plunging ball | Inner joint (some designs) | Smooth torque transfer with plunge capability | Rumble or vibration; grease contamination damage |
Drivetrain layout vs typical service items
| Layout | Most common service parts | Typical diagnostic focus |
|---|---|---|
| FWD | CV boots, outer CV joints, complete driveshafts | Clicks on lock, vibration under load, grease sling |
| RWD | U-joints, propshaft mountings/support bearings, diff seals | Speed-related vibration, take-up clunk, diff whine |
| AWD/4x4 | Multiple seals, shafts, joints, propshafts | Driveline binding, judder, leaks at multiple casings |
9) Wear parts and inspection guidance
Regular visual checks can prevent expensive drivetrain damage. If you service your vehicle at home, add these checks to your routine—especially before long trips or after winter when road salt and grit are at their worst.
| Item to inspect | What to look for | Simple check method | Recommended action |
|---|---|---|---|
| CV boots | Splits, cracks, loose clamps, grease on suspension/wheel | Steer full lock and visually inspect inner/outer boots | Replace boot promptly; clean and re-grease if joint is sound |
| Outer CV joint | Clicking on turns, play, torn boot history | Slow circles on full lock in a safe area | Replace joint or complete driveshaft (as appropriate) |
| Inner CV joint | Shudder/vibration under acceleration | Test under load in higher gear at low RPM (safely) | Investigate joint/shaft balance and engine/gearbox mounts |
| Propshaft U-joint | Clunk, stiffness, rust dust, play | With vehicle safely supported, check for free play | Replace worn U-joints; address vibration early |
| Diff seals | Oil weep, drips, wet casing, oil smell | Clean area then recheck after a short drive | Fix leak and verify correct oil level/spec |
10) Materials and construction choices
Material choices influence durability, noise, and resistance to corrosion:
- Shafts: typically high-strength steel, often with protective coatings.
- CV boots: rubber or thermoplastic elastomers; higher-grade materials resist heat, ozone, and oil exposure better.
- Bearings: hardened steel with precision races; contamination and low lubrication are the biggest enemies.
- Seals: elastomer lips with spring tension; correct installation depth and clean sealing surfaces matter.
| Component | Typical material | Why it’s used | Failure accelerators |
|---|---|---|---|
| CV boot | Rubber / TPE | Flexibility across steering and suspension travel | Heat, oil contamination, incorrect clamping, age cracking |
| U-joint | Hardened steel with needle bearings | High load capacity, compact design | Loss of grease, water ingress, corrosion |
| Diff seal | Elastomer + metal case | Controlled oil retention at rotating shafts | Grooved flange surface, incorrect installation, dirt |
11) Lubricants, specs, and approvals (where relevant)
Final drive and differential components rely on the correct lubricant. The right gear oil grade depends on the unit design and manufacturer requirement. Using the wrong oil (or the wrong limited-slip additive approach) can increase noise and wear.
| Area | Common lubricant type | What to verify | Notes |
|---|---|---|---|
| Differential / final drive casing | Gear oil (e.g. viscosity grades such as 75W-90) | Vehicle handbook spec, fill method, capacity | Some LSDs need friction characteristics matched to the design |
| CV joint | High-moly CV grease (usually supplied in kits) | Correct quantity and clean assembly | Mixing unknown greases can be risky; keep everything clean |
| Universal joint (if serviceable) | Grease via nipple (where fitted) | Correct grease type and interval | Many modern U-joints are sealed and non-serviceable |
12) Operating conditions, overheating, and limits
Final drive components endure shock loads (potholes, sudden traction changes) and high temperatures (extended motorway driving, towing, performance driving). Heat thins lubricants and can harden seals and boots over time.
| Condition | What it does to the final drive | What to watch for | Practical mitigation |
|---|---|---|---|
| Repeated short journeys | Condensation and contamination build-up | Seepage, noisy bearings as oil ages | Regular fluid checks; address minor leaks early |
| Towing / heavy loads | Higher torque and temperature | Whine, overheating smell, faster oil degradation | Use correct lubricant spec; check levels more often |
| Water ingress (flooding, deep puddles) | Contaminates grease/oil; accelerates corrosion | Milky oil, rumbling bearings, joint noise | Inspect boots/seals; change fluids if contamination suspected |
| Kerb/pothole impact | Can damage boots, flanges, shafts, mountings | New vibration, steering pull, grease sling | Inspect immediately; don’t ignore new noises |
13) Fault symptoms and urgency
Not all noises mean imminent failure—but some should be treated as urgent. If you’re unsure, err on the side of caution and have the vehicle inspected, especially if the issue affects steering feel, stability, or produces loud knocks.
| Symptom | Likely causes | Urgency | Why it matters |
|---|---|---|---|
| Clicking when turning on full lock | Outer CV joint wear, low grease, damaged boot history | High | Joint wear can progress to loss of drive or unsafe handling |
| Vibration under acceleration | Inner CV joint, driveshaft imbalance, mountings, U-joint wear | Medium–High | Vibration accelerates wear and can indicate impending joint failure |
| Whine that changes with speed/load | Diff bearings/gears, low oil level, incorrect lubricant | Medium | Low oil can rapidly damage expensive internal components |
| Clunk on take-up / gear change | U-joints, propshaft mountings, excessive play in joints/flanges | Medium | Shock loads can worsen driveline lash and cause secondary damage |
| Oil leak around diff output area | Diff seal, breather issues, worn flange surface | High | Oil loss risks overheating and bearing failure |
14) Maintenance and repair guidance
- Prioritise cleanliness: CV joints and differential sealing surfaces hate grit. Clean thoroughly before disassembly.
- Use correct torque settings: hub nuts, flange bolts, and propshaft fasteners are torque-critical. Follow manufacturer data.
- Replace one-time-use fixings where specified: some nuts, bolts, and clamps are designed for single use.
- Check related parts: worn engine/gearbox mounts can mimic or accelerate driveshaft issues; wheel bearings can resemble drivetrain rumble.
- Confirm oil level after leak repairs: fixing a seal without correcting the lubricant level defeats the point.
15) Common mistakes to avoid
- Ignoring a split boot: a cheap boot can prevent a costly joint replacement if addressed early.
- Contaminating CV grease: dirt introduced during assembly shortens joint life dramatically.
- Mixing unknown lubricants: especially in differentials with limited-slip requirements.
- Misdiagnosing vibration: wheels/tyres, wheel bearings, mounts, and drivetrain can overlap—test methodically.
- Forgetting to mark propshaft orientation: on some setups, refitting in a different position can introduce imbalance.
16) Upgrades and tuning considerations (UK road/MOT caveats)
Final drive changes can alter the character of a vehicle. A different final drive ratio can improve acceleration at the expense of cruising RPM, economy, and noise. Limited-slip differentials can improve traction but may introduce low-speed manoeuvring noises or changed handling balance. For road cars, ensure any modification remains safe, properly installed, and compatible with stability systems.
- Road legality: modifications must not compromise safe operation or cause contact with bodywork on steering/suspension travel.
- MOT considerations: excessive play, insecure mountings, leaking lubricants, and damaged CV boots can all create MOT issues.
- Insurance: in the UK, drivetrain modifications should be declared to your insurer.
17) UK MOT, legal, and safety notes
From an MOT and safety standpoint, the key concerns around the final drive are security, leakage, and excessive play. A split CV boot that is clearly letting grease out or allowing dirt in is a red flag; likewise, significant oil leaks from the differential or obvious driveline play can be problematic. If you notice new knocks, severe vibration, or loss of drive, stop driving and inspect—continuing can lead to sudden failure or collateral damage.
