Apec Blue PD3183 Brake Pad Set, disc brake - 1
Apec Blue PD3183 Brake Pad Set, disc brake - 1
APEC BLUE

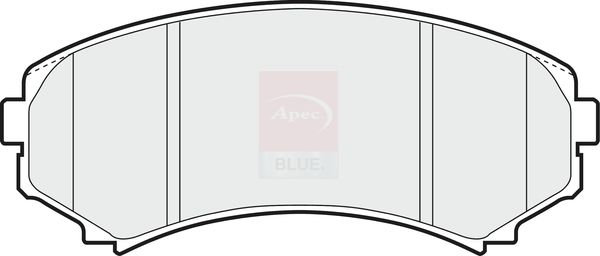

Apec Blue PD3183 Brake Pad Set, disc brake

SKU: PD3183
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£20.55 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
E Van (SR2)
Description Cylinder Capacity Horse Power Year
E2200 D 2184 CCM 64 HP 11/1988 - 12/2003
E2200 D 2184 CCM 71 HP 02/1997 - 08/2002
MITSUBISHI
GRANDIS (NA_W)
Description Cylinder Capacity Horse Power Year
2.4 MIVEC (NA4W) 2378 CCM 165 HP 04/2004 - 12/2011
2.0 DI-D (NA8W) 1968 CCM 136 HP 09/2005 - 03/2010
PAJERO/SHOGUN Mk II (V3_W, V2_W, V4_W, V5_W)
Description Cylinder Capacity Horse Power Year
3.5 Evolution (V55W) 3497 CCM 280 HP 10/1997 - 08/1999
PAJERO/SHOGUN III (V7_W, V6_W)
Description Cylinder Capacity Horse Power Year
3.5 (V65W, V75W) 3497 CCM 203 HP 04/2000 - 01/2007
3.2 DI-D (V68W) 3200 CCM 160 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 10/2006
2.5 TDi (V64W) 2477 CCM 99 HP 04/2000 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 115 HP 09/2001 - 12/2006
PAJERO/SHOGUN Mk III Canvas Top (V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 160 HP 10/2001 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 99 HP 04/2000 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 115 HP 09/2001 - 12/2006
PAJERO/SHOGUN CLASSIC (V2_W, V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
2.5 TD (V24W) 2477 CCM 115 HP From 07/2001
3.2 DI-D (V68W, V78W) 3200 CCM 170 HP From 09/2006
PAJERO/SHOGUN IV (V8_W, V9_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 190 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 160 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 170 HP From 02/2007
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 200 HP From 01/2009
3.2 DI-D 3200 CCM 167 HP From 02/2007
3.2 4WD (V98W) 3200 CCM 192 HP From 10/2016
PAJERO/SHOGUN IV Van (V9_, V8_, V8_V)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 3200 CCM 160 HP From 11/2006
3.2 TD 4WD (V88V, V98V) 3200 CCM 200 HP From 01/2010
3.2 DI-D 4WD (V88W, V98W) 3200 CCM 190 HP From 02/2007
SHOGUN II (V3_W)
Description Cylinder Capacity Horse Power Year
3.2 DiD 4WD 3200 CCM 165 HP 04/2000 - 09/2007
3.2 DiD 4WD 3200 CCM 160 HP 05/2005 - 09/2007

The Apec Blue PD3183 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Sumitomo brake-system specification, test mark 90R-02A0183/34230, with acoustic wear warning, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Sumitomo
Number of wear indicators [per axle] : 2
Width [mm] : 139
Height 1 [mm] : 59
Thickness [mm] : 15
Test Mark : 90R-02A0183/34230
Wear Warning Contact : with acoustic wear warning
Fitting Position : Front Axle
  • Vendor APEC BLUE
  • SKU PD3183
  • Barcode 5028906065270
  • MAZDA : S4YR3323Z S4YR3323ZA SHY63323Z
  • MITSUBISHI : 4605A041 MN116445 MN116446 MR407422 MR510539 MR510619 MR527868 MR569592 MZ690347
  • APEC : PAD1244
  • APEC : PAD1268
  • APEC : PD3183
  • BLUE PRINT : ADC44261
  • BLUE PRINT : ADM54278
  • BORG & BECK : BBP1449
  • BORG & BECK : BBP1472
  • BORG & BECK : BBP1757
  • BORG & BECK : BBP1891
  • BOSCH : 0 986 424 523
  • BOSCH : 0 986 424 709
  • BREMBO : P 54 029
  • DELPHI : LP1462
  • Fahren : FBP3183
  • FEBI BILSTEIN : 16582
  • HELLA : 8DB 355 009-461
  • MEYLE : 025 234 8816/PD
  • MEYLE : 025 234 8816/W
  • MINTEX : MDB1845
  • NAPA : NBP1227
  • National : NP2180
  • SKF : VKBP 80252 A
  • TEXTAR : 2348801
