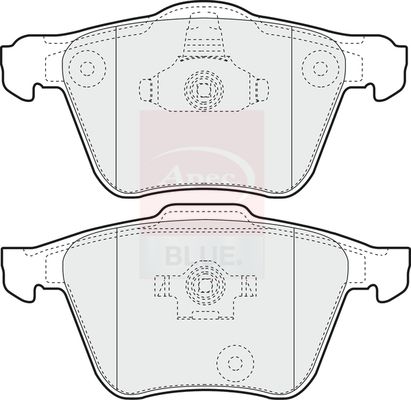

Apec Blue PD3188 Brake Pad Set, disc brake - 1
Apec Blue PD3188 Brake Pad Set, disc brake - 1
APEC BLUE

Apec Blue PD3188 Brake Pad Set, disc brake

SKU: PD3188
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£21.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
XC90 I (275)
Description Cylinder Capacity Horse Power Year
D5 AWD 2400 CCM 200 HP 01/2011 - 12/2014
3.2 AWD 3192 CCM 243 HP 04/2010 - 09/2014
2.5 T AWD 2521 CCM 209 HP 10/2002 - 09/2014
T6 AWD 2922 CCM 272 HP 10/2002 - 12/2006
D5 AWD 2401 CCM 163 HP 10/2002 - 12/2006
V8 AWD 4414 CCM 316 HP 01/2005 - 12/2010
D5 AWD 2401 CCM 185 HP 04/2005 - 12/2012
3.2 AWD 3192 CCM 238 HP 03/2006 - 12/2010
D3 / D5 2400 CCM 163 HP 04/2009 - 12/2014
V8 AWD 4414 CCM 320 HP 09/2004 - 12/2005
2.5 T AWD 2497 CCM 209 HP 10/2012 - 09/2014
D5 AWD 2400 CCM 163 HP 10/2007 - 12/2010

The Apec Blue PD3188 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with retaining spring, test mark 90R-02A01400/40999, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : ATE
Supplementary Article/Supplementary Info : with retaining spring
Width [mm] : 156
Width 2 [mm] : 155
Height 1 [mm] : 74
Height 2 [mm] : 75
Thickness [mm] : 19
Thickness 1 [mm] : 21
Test Mark : 90R-02A01400/40999
Wear Warning Contact : not prepared for wear warning indicator
Fitting Position : Front Axle
for article number : SDK6268
  • Vendor APEC BLUE
  • SKU PD3188
  • Barcode 5028906065324
  • VOLVO : 274331 30769125 31262705
  • APEC : PAD1335
  • APEC : PAD1335B
  • APEC : PD3188
  • BLUE PRINT : ADF124227
  • BORG & BECK : BBP1903
  • BORG & BECK : BBP1928
  • BOSCH : 0 986 494 159
  • BREMBO : P 86 018
  • DELPHI : LP1821
  • Fahren : FBP3188
  • FEBI BILSTEIN : 16505
  • HELLA : 8DB 355 011-721
  • MEYLE : 025 241 4119
  • MEYLE : 025 241 4119/PD
  • MINTEX : MDB2576
  • NAPA : NBP1390
  • National : NP2671
  • SKF : VKBP 80455
  • TEXTAR : 2414101
  • TRW : GDB1565
