APEC BLUE

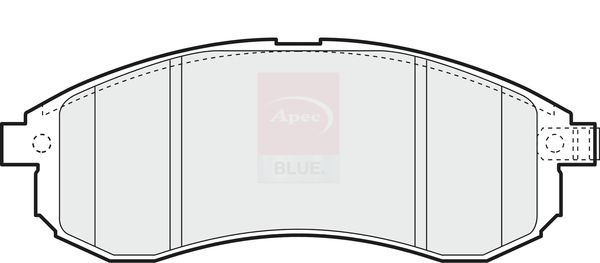

Apec Blue PD3196 Brake Pad Set, disc brake

SKU: PD3196

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£25.96 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI

L200 (K7_T, K6_T, K5_T)

Description	Cylinder Capacity	Horse Power	Year
2.5 TD 4WD (K74T)	2477 CCM	115 HP	09/2001 - 12/2007
2.5 TD 4WD (K74T)	2477 CCM	133 HP	08/2001 - 12/2007
2.5 TD (K64T)	2477 CCM	90 HP	08/2001 - 11/2005
2.8 TD 4WD (K77T)	2835 CCM	125 HP	07/1996 - 12/2005
2.5 TDiC	2477 CCM	101 HP	08/2001 - 09/2005
3.0 i 4WD (K76T)	2972 CCM	181 HP	06/1996 - 08/2006

The Apec Blue PD3196 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Sumitomo brake-system specification, test mark 90R-02A01399/45304, front axle fitting position, and 314 mm for brake disc diameter. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake

Brake System : Sumitomo

Number of wear indicators [per axle] : 1

Width [mm] : 151

Height 1 [mm] : 56

Thickness [mm] : 15

Test Mark : 90R-02A01399/45304

Wear Warning Contact : with acoustic wear warning

Fitting Position : Front Axle

for brake disc diameter [mm] : 314

for article number : SDK6342

APEC : PAD1405
APEC : PD3196
BLUE PRINT : ADC44268
BORG & BECK : BBP1840
BOSCH : 0 986 494 362
BREMBO : P 54 033
DELPHI : LP1808
Fahren : FBP3196
FEBI BILSTEIN : 116347
HELLA : 8DB 355 010-281
MEYLE : 025 238 7914/W
MINTEX : MDB2252
NAPA : NBP1740
National : NP2859
SKF : VKBP 80829 A
TEXTAR : 2387902

Apec Blue PD3196 Brake Pad Set, disc brake
