Home / Car Parts / Braking / Brake Pads & Discs / Brake Pads

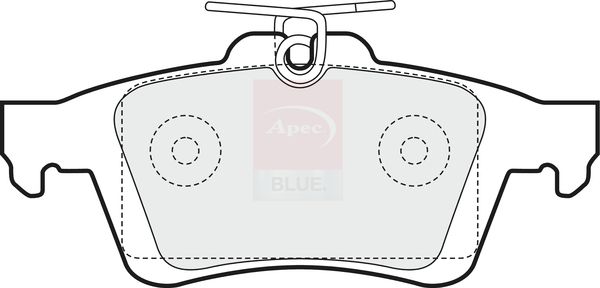

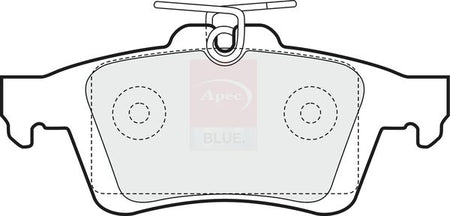

Apec Blue PD3202 Brake Pad Set, disc brake - 1
Apec Blue PD3202 Brake Pad Set, disc brake - 1
APEC BLUE

Apec Blue PD3202 Brake Pad Set, disc brake

SKU: PD3202
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£17.50 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
3 Saloon (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK12) 1598 CCM 105 HP 02/2004 - 06/2009
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
1.6 DI Turbo (BK12Y) 1560 CCM 109 HP 06/2004 - 06/2009
2.0 MZR-CD (BK12) 1998 CCM 143 HP 12/2006 - 06/2009
3 (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK14) 1598 CCM 105 HP 10/2003 - 06/2009
2.0 (BKEP) 1999 CCM 150 HP 10/2003 - 12/2009
1.6 DI Turbo 1560 CCM 109 HP 06/2004 - 06/2009
1.3 (BK14) 1349 CCM 84 HP 10/2003 - 06/2009
2.3 DiSi Turbo MPS (BK3P) 2261 CCM 250 HP 06/2006 - 06/2009
2.3 MPS Turbo (BK14) 2261 CCM 260 HP 12/2006 - 06/2009
2.0 MZR-CD (BK14) 1998 CCM 143 HP 07/2006 - 06/2009
1.6 MZ-CD 1560 CCM 90 HP 06/2006 - 12/2009

The Apec Blue PD3202 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with spring, test mark 90R-02A01398/42517, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : ATE
Supplementary Article/Supplementary Info : with spring
Width [mm] : 123
Height 1 [mm] : 52
Thickness [mm] : 17
Test Mark : 90R-02A01398/42517
Wear Warning Contact : not prepared for wear warning indicator
Fitting Position : Rear Axle
for article number : SDK6229
  • Vendor APEC BLUE
  • SKU PD3202
  • Barcode 5028906065461
  • FORD : 1566096
  • MAZDA : BPYK2648ZA BPYK2648ZA9C BPYK2648ZB
  • VOLVO : 31323501
  • APEC : PAD1444
  • APEC : PD3202
  • BLUE PRINT : ADA104249
  • BORG & BECK : BBP1931
  • BORG & BECK : BBP1938
  • BORG & BECK : BBP1943
  • BOSCH : 0 986 494 528
  • BREMBO : P 59 042
  • BREMBO : P 59 042X
  • DELPHI : LP1958
  • Fahren : FBP3202
  • FEBI BILSTEIN : 16718
  • HELLA : 8DB 355 011-731
  • MEYLE : 025 241 3717
  • MEYLE : 025 241 3717/PD
  • MINTEX : MDB2686
  • NAPA : NBP1500
  • National : NP2137
  • SKF : VKBP 90148
  • TEXTAR : 2413701
  • TEXTAR : 2413781
