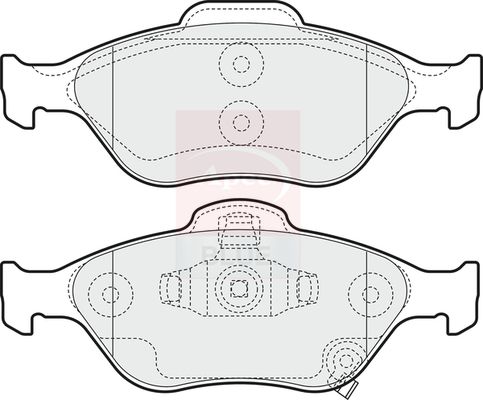

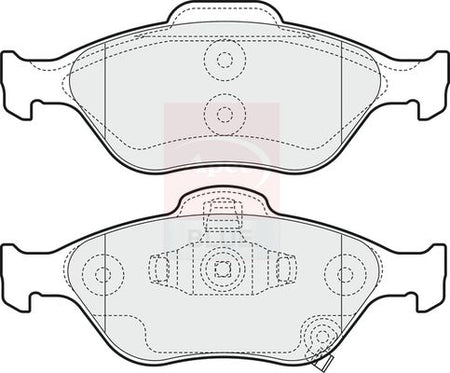

Apec Blue PD3217 Brake Pad Set, disc brake - 1
Apec Blue PD3217 Brake Pad Set, disc brake - 1
APEC BLUE

Apec Blue PD3217 Brake Pad Set, disc brake

SKU: PD3217
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£20.62 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

DAIHATSU
CHARADE VIII
Description Cylinder Capacity Horse Power Year
1.33 16V 1329 CCM 99 HP From 05/2011
TOYOTA
YARIS Hatchback Van (_P13_)
Description Cylinder Capacity Horse Power Year
1.3 VVTi (NSP130) 1329 CCM 99 HP 10/2012 - 03/2017
1.0 VVTi (KSP130) 998 CCM 69 HP 07/2014 - 06/2020
1.4 D4d (NLP130) 1364 CCM 90 HP 07/2014 - 05/2018
1.0 VVTi (KSP130) 998 CCM 72 HP 06/2018 - 06/2020
1.5 Hybrid (NHP130) 1497 CCM 101 HP 04/2015 - 06/2020
YARIS/VITZ (_P9_)
Description Cylinder Capacity Horse Power Year
1.3 4WD (NCP95) 1298 CCM 87 HP 01/2005 - 11/2010
1.3 VVT-i (NCP90_, NCP90R) 1299 CCM 86 HP 11/2005 - 12/2012
1.33 VVT-i (NSP90_, NSP90R) 1329 CCM 99 HP 07/2010 - 05/2011
1.0 VVT-i (KSP90_, KSP90R) 998 CCM 69 HP 08/2005 - 12/2011
1.4 D-4D (NLP90_, NLP90R) 1364 CCM 90 HP 08/2005 - 12/2012
1.3 VVT-i (SCP90_, SCP90R) 1298 CCM 87 HP 08/2005 - 11/2010
1.33 VVT-i (NSP90_, NSP90R) 1329 CCM 100 HP 11/2008 - 12/2011
1.0 VVT-i (KSP90) 998 CCM 71 HP 11/2005 - 11/2010
YARIS/VITZ (_P13_)
Description Cylinder Capacity Horse Power Year
1.3 (NSP130_, NSP130) 1329 CCM 95 HP 12/2010 - 07/2014
1.0 (KSP130_, KSP130) 998 CCM 69 HP 12/2010 - 06/2020
1.4 D (NLP130_, NLP130) 1364 CCM 90 HP 09/2011 - 05/2018
1.3 (NSP130_, NSP130) 1329 CCM 99 HP 09/2011 - 03/2017
1.5 Hybrid (NHP130_, NHP130) 1497 CCM 101 HP 03/2012 - 06/2020
1.5 Hybrid (NHP130_) 1497 CCM 101 HP 04/2015 - 03/2017
1.5 (NSP131_) 1496 CCM 112 HP 03/2017 - 06/2020
1.0 (KSP130) 998 CCM 72 HP 06/2018 - 06/2020

The Apec Blue PD3217 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with retaining spring, test mark 90R-02A01400/39262, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : ATE
Number of wear indicators [per axle] : 2
Supplementary Article/Supplementary Info : with retaining spring
Width [mm] : 151
Width 2 [mm] : 150
Height 1 [mm] : 58
Height 2 [mm] : 61
Thickness [mm] : 17
Test Mark : 90R-02A01400/39262
Wear Warning Contact : with acoustic wear warning
Fitting Position : Front Axle
  • Vendor APEC BLUE
  • SKU PD3217
  • Barcode 5028906065614
  • DAIHATSU : 044650D050000
  • TOYOTA : 044650D050 044650D120 044650D210 04465YZZDS 44650D050
  • APEC : PAD1543
  • APEC : PD3217
  • BLUE PRINT : ADT342165
  • BLUE PRINT : ADT342213
  • BORG & BECK : BBP1999
  • BOSCH : 0 986 494 101
  • BREMBO : P 83 085
  • DELPHI : LP2005
  • DELPHI : LP3739
  • Fahren : FBP3217
  • FEBI BILSTEIN : 116267
  • FEBI BILSTEIN : 116402
  • HELLA : 8DB 355 006-721
  • MEYLE : 025 232 0217/PD
  • MEYLE : 025 232 0217/W
  • MINTEX : MDB2769
  • NAPA : NBP1184
  • National : NP2286
  • TEXTAR : 2402201
