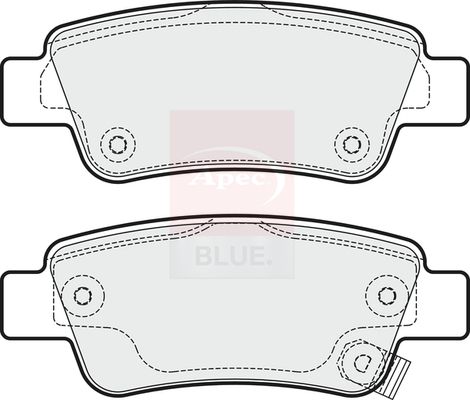

Apec Blue PD3229 Brake Pad Set, disc brake - 1

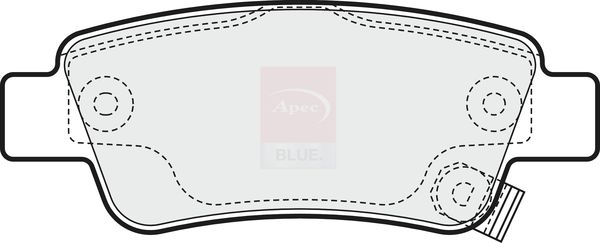

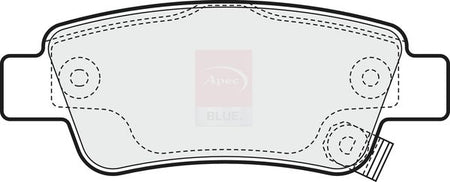

Apec Blue PD3229 Brake Pad Set, disc brake - 2
Apec Blue PD3229 Brake Pad Set, disc brake - 1
Apec Blue PD3229 Brake Pad Set, disc brake - 2
APEC BLUE

Apec Blue PD3229 Brake Pad Set, disc brake

SKU: PD3229

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock
Out of Stock
£21.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery on UK mainland orders. See our delivery information for coverage and current dispatch estimates.

HONDA
CR-V III (RE_)
Description Cylinder Capacity Horse Power Year
2.4 i-VTEC 4WD (RE7) 2354 CCM 166 HP 09/2009 - 12/2012
2.4 4WD (RE4) 2354 CCM 168 HP 09/2006 - 06/2012
2.0 i-VTEC 4WD (RE5, RE2) 1997 CCM 150 HP 10/2006 - 06/2012
2.2 i-CTDi 4WD (RE6) 2204 CCM 140 HP 01/2007 - 02/2010
2.4 (RE3) 2354 CCM 170 HP 04/2007 - 12/2012
2.4 i-VTEC 4WD (RE4) 2354 CCM 160 HP 10/2006 - 10/2012
2.4 (RE3) 2354 CCM 168 HP 06/2006 - 06/2012
2.2 i-DTEC 4WD (RE6) 2199 CCM 150 HP 01/2007 - 06/2012
2.4 i-Vtec 4WD (RE4) 2354 CCM 170 HP 04/2007 - 12/2012
2.0 i-VTEC (RE5, RE1) 1997 CCM 150 HP 01/2007 - 06/2012
CR-V IV (RM_)
Description Cylinder Capacity Horse Power Year
2.0 (RM1) 1997 CCM 150 HP 01/2012 - 12/2018
1.6 i-DTEC (RE6) 1597 CCM 120 HP 10/2013 - 08/2018
2.0 iVtec (RE5, RM1) 1997 CCM 155 HP 10/2012 - 12/2018
2.0 AWD (RE5, RM2) 1997 CCM 155 HP 10/2012 - 12/2018
1.6 i-DTEC 4WD (RE6) 1597 CCM 160 HP 02/2015 - 08/2018
2.2 i-DTEC 4WD (RE6) 2199 CCM 150 HP 11/2012 - 05/2015

The Apec Blue PD3229 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Bosch brake-system specification, test mark 90R-02A01400/43119, with acoustic wear warning, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Bosch
Number of wear indicators [per axle] : 2
Width [mm] : 109
Height 1 [mm] : 42
Thickness [mm] : 16
Test Mark : 90R-02A01400/43119
Wear Warning Contact : with acoustic wear warning
Fitting Position : Rear Axle
for article number : SDK6291
  • Vendor APEC BLUE
  • SKU PD3229
  • Barcode 5028906067502
  • HONDA : 43022SWWG00 43022SWWG01 43022SWWG02 43022SWWG03 43022T1GG00 43022T1GG000
  • APEC : PAD1583
  • APEC : PAD1940
  • APEC : PD3229
  • BLUE PRINT : ADH24276
  • BORG & BECK : BBP2072
  • BOSCH : 0 986 494 329
  • BREMBO : P 28 046
  • DELPHI : LP2047
  • Fahren : FBP3229
  • FEBI BILSTEIN : 16805
  • HELLA : 8DB 355 013-591
  • MEYLE : 025 246 3516/PD
  • MEYLE : 025 246 3516/W
  • MINTEX : MDB2926
  • NAPA : NBP1005
  • NAPA : NBP1612
  • National : NP2631
  • SKF : VKBP 90623 A
  • TEXTAR : 2463501
