Apec Blue PD3230 Brake Pad Set, disc brake - 1
Apec Blue PD3230 Brake Pad Set, disc brake - 1
APEC BLUE

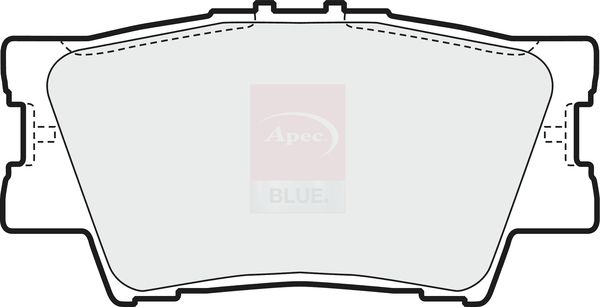

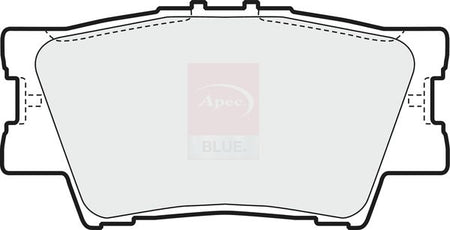

Apec Blue PD3230 Brake Pad Set, disc brake

SKU: PD3230
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£19.88 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
RAV 4 III (_A3_)
Description Cylinder Capacity Horse Power Year
2.0 4WD (ACA30_, ACA30R) 1998 CCM 152 HP 02/2006 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 136 HP 02/2006 - 12/2012
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 177 HP 02/2006 - 06/2013
2.0 (ZSA35_, ZSA35R) 1987 CCM 158 HP 12/2008 - 06/2013
2.0 4WD (ZSA30_, ZSA30R) 1987 CCM 158 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30_, ALA30R) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D (ALA35_) 2231 CCM 150 HP 12/2008 - 06/2013
2.2 D 4WD (ALA30) 2231 CCM 133 HP 11/2005 - 12/2010
RAV 4 IV (_A4_)
Description Cylinder Capacity Horse Power Year
2.0 D (ALA40_, ALA40R) 1998 CCM 124 HP 12/2012 - 11/2018
2.0 4WD (ZSA44_, ZSA44R) 1987 CCM 151 HP 12/2012 - 10/2018
2.2 D 4WD (ALA49) 2231 CCM 150 HP 12/2012 - 09/2019
2.0 D 4WD (ALA41_) 1998 CCM 124 HP 01/2013 - 11/2018
2.0 4WD (ZSA44_) 1987 CCM 151 HP 04/2015 - 10/2018
2.5 Hybrid 4WD (AVA44, AVA44_) 2494 CCM 197 HP 11/2015 - 11/2018
2.0 D (WWA42_) 1995 CCM 143 HP 10/2015 - 11/2018
2.5 Hybrid (AVA42_) 2494 CCM 197 HP 11/2015 - 11/2018

The Apec Blue PD3230 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Akebono brake-system specification, test mark 90R-02A01400/46563, not prepared for wear warning indicator, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Akebono
Width [mm] : 97
Height 1 [mm] : 49
Thickness [mm] : 15
Test Mark : 90R-02A01400/46563
Wear Warning Contact : not prepared for wear warning indicator
Fitting Position : Rear Axle
for article number : SDK6510
  • Vendor APEC BLUE
  • SKU PD3230
  • Barcode 5028906067519
  • TOYOTA : 0446606070 0446606090 0446606200 0446633160 0446642060 04466YZZE8 446633160 446633180 446642060
  • LEXUS : 0446602220 0446633180 0446633200 0446675010
  • APEC : PAD1591
  • APEC : PD3230
  • BLUE PRINT : ADT342168
  • BORG & BECK : BBP1990
  • BOSCH : 0 986 460 119
  • BOSCH : 0 986 494 154
  • BREMBO : P 83 089
  • DELPHI : LP2004
  • Fahren : FBP3230
  • FEBI BILSTEIN : 16651
  • HELLA : 8DB 355 006-881
  • MEYLE : 025 243 3815
  • MEYLE : 025 243 3815/PD
  • MINTEX : MDB2787
  • NAPA : NBP1440
  • National : NP2773
  • SKF : VKBP 90307
  • TEXTAR : 2433801
