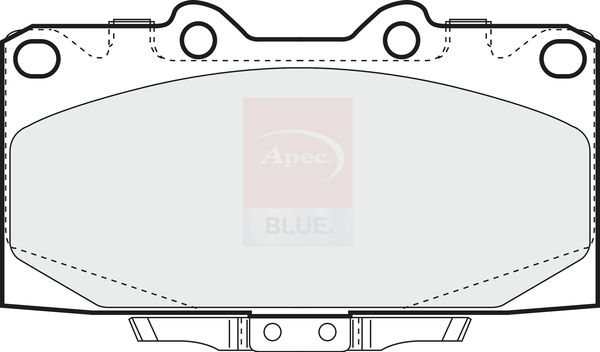

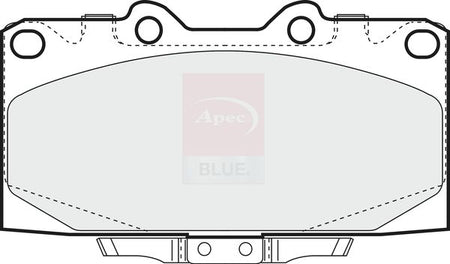

Apec Blue PD3486 Brake Pad Set, disc brake - 1
Apec Blue PD3486 Brake Pad Set, disc brake - 1
APEC BLUE

Apec Blue PD3486 Brake Pad Set, disc brake

SKU: PD3486
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£27.42 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUBARU
IMPREZA Saloon (GC)
Description Cylinder Capacity Horse Power Year
2.0 AWD (GC8, GM8) 1994 CCM 280 HP 09/1996 - 09/2000
IMPREZA Saloon (GD)
Description Cylinder Capacity Horse Power Year
2.0 WRX Turbo AWD (GDA) 1994 CCM 218 HP 12/2000 - 12/2005
2.0 WRX Turbo AWD (GDA) 1994 CCM 225 HP 12/2002 - 03/2007
2.5 i WRX AWD (GDG) 2457 CCM 230 HP 09/2005 - 12/2008
2.0 AWD (GDA) 1994 CCM 250 HP 10/2005 - 03/2007
IMPREZA Estate (GG)
Description Cylinder Capacity Horse Power Year
2.0 Turbo AWD (GGA) 1994 CCM 218 HP 12/2000 - 12/2005
2.0 WRX Turbo AWD (GGA) 1994 CCM 225 HP 12/2002 - 09/2006
2.5 WRX AWD (GGG) 2457 CCM 230 HP 09/2005 - 12/2008
2.5 GB270 AWD 2457 CCM 269 HP 07/2007 - 12/2007

The Apec Blue PD3486 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Sumitomo brake-system specification, test mark 90R-02A0101/0910, with acoustic wear warning, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Sumitomo
Number of wear indicators [per axle] : 2
Width [mm] : 119
Height 1 [mm] : 70
Thickness [mm] : 15
Test Mark : 90R-02A0101/0910
Wear Warning Contact : with acoustic wear warning
Fitting Position : Front Axle
for article number : SDK6332
  • Vendor APEC BLUE
  • SKU PD3486
  • Barcode 5028906129705
  • SUBARU : 26296FA160 26296FE070 26296FE090
  • APEC : PAD1304
  • APEC : PD3486
  • BLUE PRINT : ADS74225
  • BORG & BECK : BBP1832
  • BOSCH : 0 986 494 398
  • BREMBO : P 56 025
  • BREMBO : P 56 034
  • DELPHI : LP2044
  • FEBI BILSTEIN : 170874
  • HELLA : 8DB 355 016-791
  • MEYLE : 025 218 5415/W
  • MINTEX : MDB1416
  • MINTEX : MDB1748
  • NAPA : NBP1856
  • National : NP2690
  • SKF : VKBP 81130 A
  • TEXTAR : 2130701
  • TEXTAR : 2185401
