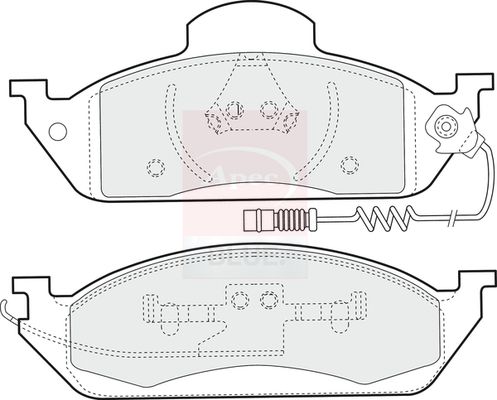

Apec Blue PD3504 Brake Pad Set, disc brake
Your selected vehicle
Regular price
£30.83
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Apec Blue PD3504 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Kelsey Hayes brake-system specification, with retaining spring, test mark 90R-02A01376/40137, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Pad Set, disc brake
Brake System :
Kelsey Hayes
Number of wear indicators [per axle] :
1
Supplementary Article/Supplementary Info :
with retaining spring
Width [mm] :
188
Height 1 [mm] :
77
Height 2 [mm] :
59
Thickness [mm] :
16
Thickness 1 [mm] :
17
Warning Contact Length [mm] :
70
Test Mark :
90R-02A01376/40137
Wear Warning Contact :
with integrated wear warning contact
Fitting Position :
Front Axle
- Vendor APEC BLUE
- SKU PD3504
- MERCEDES-BENZ : 1634200020 1634200320 1634201220 4163420032 A1634200020 A1634200320
- APEC : PAD1102
- APEC : PD3504
- BLUE PRINT : ADU174260
- BORG & BECK : BBP1640
- BOSCH : 0 986 424 611
- BREMBO : P 50 039
- DELPHI : LP1299
- FEBI BILSTEIN : 16410
- HELLA : 8DB 355 008-661
- MEYLE : 025 231 9317/PD
- MEYLE : 025 231 9317/W
- MINTEX : MDB1936
- National : NP3295
- SKF : VKBP 81065 E
- TEXTAR : 2319303
