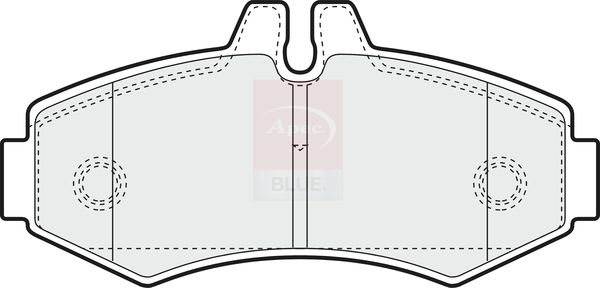

Apec Blue PD3506 Brake Pad Set, disc brake - 1

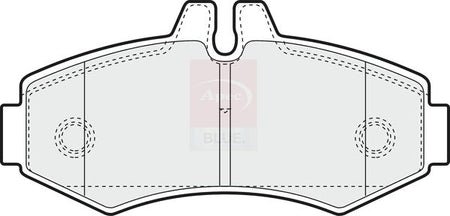

Apec Blue PD3506 Brake Pad Set, disc brake - 1
APEC BLUE

Apec Blue PD3506 Brake Pad Set, disc brake

SKU: PD3506
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£18.93 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
V-CLASS (638/2)
Description Cylinder Capacity Horse Power Year
V 230 (638.234, 638.294) 2295 CCM 143 HP 10/1996 - 07/2003
V 280 (638.244, 638.294) 2792 CCM 174 HP 08/1997 - 07/2003
V 220 CDI (638.294) 2148 CCM 122 HP 03/1999 - 07/2003
VITO Bus (W638)
Description Cylinder Capacity Horse Power Year
108 D 2.3 (638.164) 2299 CCM 79 HP 02/1996 - 07/2003
113 2.0 (638.114, 638.194) 1998 CCM 129 HP 02/1996 - 07/2003
108 CDI 2.2 (638.194) 2148 CCM 82 HP 03/1999 - 07/2003
110 CDI 2.2 (638.194) 2148 CCM 102 HP 03/1999 - 07/2003
112 CDI 2.2 (638.194) 2148 CCM 122 HP 03/1999 - 07/2003
VITO Van (W638)
Description Cylinder Capacity Horse Power Year
108 D 2.3 (638.064, 638.068) 2299 CCM 79 HP 03/1997 - 07/2003
113 2.0 (638.014, 638.094) 1998 CCM 129 HP 03/1997 - 07/2003
108 CDI 2.2 (638.094) 2148 CCM 82 HP 03/1999 - 07/2003
110 CDI 2.2 (638.094) 2148 CCM 102 HP 03/1999 - 07/2003
112 CDI 2.2 (638.094) 2148 CCM 122 HP 03/1999 - 07/2003

The Apec Blue PD3506 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Bosch brake-system specification, 134 mm width, test mark 90R-02A0101/0232, and prepared for wear warning indicator. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Bosch
Width [mm] : 134
Height 1 [mm] : 64
Thickness [mm] : 21
Test Mark : 90R-02A0101/0232
Wear Warning Contact : prepared for wear warning indicator
  • Vendor APEC BLUE
  • SKU PD3506
  • Barcode 5028906129903
  • MERCEDES-BENZ : 0004214110 0034200120 0034205420 2302220904 34200120 4214110 6384210010 A0004200120 A0034200120 A6384210010
  • APEC : PAD1074
  • APEC : PD3506
  • BLUE PRINT : ADU174238
  • BORG & BECK : BBP1315
  • BORG & BECK : BBP1664
  • BOSCH : 0 986 466 874
  • BOSCH : 0 986 494 013
  • BOSCH : 0 986 494 451
  • BREMBO : P 50 031
  • DELPHI : LP1425
  • FEBI BILSTEIN : 16094
  • HELLA : 8DB 355 008-631
  • MEYLE : 025 230 2220
  • MEYLE : 025 230 2220/PD
  • MINTEX : MDB1967
  • National : NP2633
  • SKF : VKBP 80412
  • TEXTAR : 2302201
