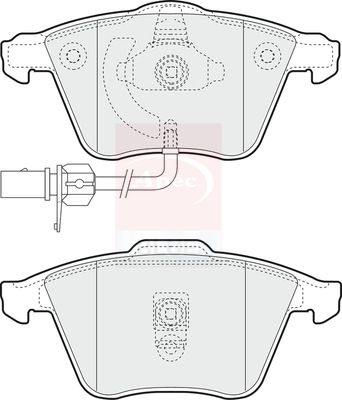

Apec Blue PD3578 Brake Pad Set, disc brake
Your selected vehicle
Regular price
£31.95
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.
The Apec Blue PD3578 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with retaining spring, test mark 90R-02A01397/49490, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Pad Set, disc brake
Brake System :
ATE
Number of wear indicators [per axle] :
2
Supplementary Article/Supplementary Info :
with retaining spring
Width [mm] :
156
Width 2 [mm] :
155
Height 1 [mm] :
73
Thickness [mm] :
20
Warning Contact Length [mm] :
210
Test Mark :
90R-02A01397/49490
Wear Warning Contact :
with integrated wear warning contact
Fitting Position :
Front Axle
for article number :
SDK6400
- Vendor APEC BLUE
- SKU PD3578
- APEC : PAD1299
- APEC : PD3578
- BLUE PRINT : ADV184265
- BORG & BECK : BBP1766
- BORG & BECK : BBP1841
- BOSCH : 0 986 494 283
- BREMBO : P 85 056
- DELPHI : LP1825
- FEBI BILSTEIN : 16455
- HELLA : 8DB 355 009-141
- MEYLE : 025 237 6220/PD
- MEYLE : 025 237 6220/W
- MINTEX : MDB2336
- National : NP2734
- SKF : VKBP 81038 E
- TEXTAR : 2376201
- TEXTAR : 2376281
