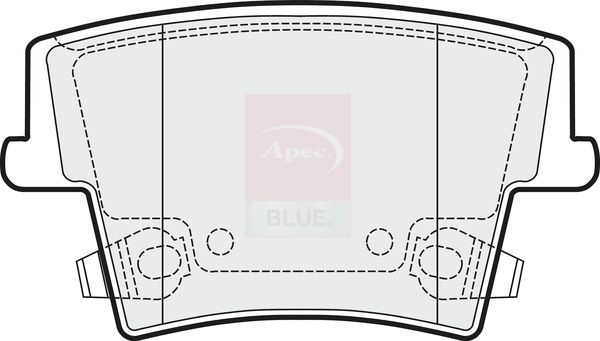

Apec Blue PD3616 Brake Pad Set, disc brake - 1
Apec Blue PD3616 Brake Pad Set, disc brake - 1
APEC BLUE

Apec Blue PD3616 Brake Pad Set, disc brake

SKU: PD3616
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£34.67 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER
300C (LX, LE)
Description Cylinder Capacity Horse Power Year
3.5 3518 CCM 249 HP 09/2004 - 11/2012
5.7 5654 CCM 340 HP 09/2004 - 12/2008
3.0 CRD 2987 CCM 218 HP 09/2005 - 11/2012
6.1 SRT8 6059 CCM 431 HP 06/2005 - 11/2012
3.5 AWD 3518 CCM 253 HP 09/2004 - 12/2010
3.5 3518 CCM 253 HP 01/2005 - 12/2010
300C Touring (LX, LE)
Description Cylinder Capacity Horse Power Year
3.5 3518 CCM 249 HP 09/2004 - 12/2010
5.7 5654 CCM 340 HP 09/2004 - 12/2010
3.0 CRD 2987 CCM 218 HP 09/2005 - 12/2010
300C (LX)
Description Cylinder Capacity Horse Power Year
3.0 CRD 2987 CCM 239 HP 09/2011 - 12/2023

The Apec Blue PD3616 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Bosch brake-system specification, test mark 90R-02A01394/35132, rear axle fitting position, and brake Caliper (1 piston). Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Bosch
Number of wear indicators [per axle] : 8
Width [mm] : 101
Height 1 [mm] : 57
Thickness [mm] : 18
Test Mark : 90R-02A01394/35132
Wear Warning Contact : with acoustic wear warning
Fitting Position : Rear Axle
Brake Caliper Type : Brake Caliper (1 piston)
for brake disc diameter [mm] : 320
for article number : SDK6570
  • Vendor APEC BLUE
  • SKU PD3616
  • Barcode 5028906131005
  • CHRYSLER : 05139191AA 05142560AA 05142561AA 05142566AA 05175818AA 5137672AA 5139191AA 5142560AA 5142560AB 5142561AA 5142561AB 5142566AA 5142566AB HDX1057A
  • LANCIA : K05142561AA K05142566AB K05142566AC
  • APEC : PAD1485
  • APEC : PD3616
  • BLUE PRINT : ADA104205
  • BORG & BECK : BBP2168
  • BOSCH : 0 986 494 678
  • BREMBO : P 23 175
  • DELPHI : LP2035
  • FEBI BILSTEIN : 116109
  • HELLA : 8DB 355 025-051
  • MEYLE : 025 241 6318
  • National : NP3080
  • TEXTAR : 2416303
