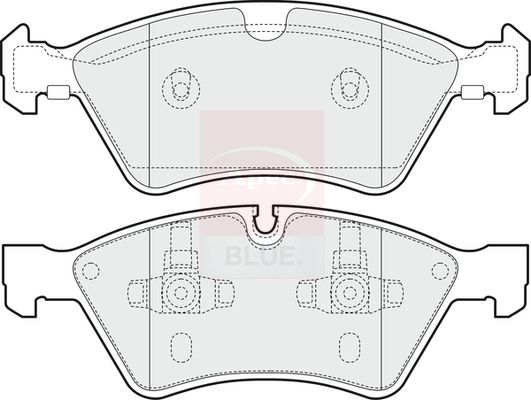

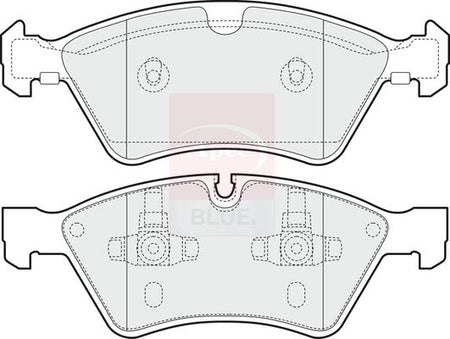

Apec Blue PD3629 Brake Pad Set, disc brake - 1
Apec Blue PD3629 Brake Pad Set, disc brake - 1
APEC BLUE

Apec Blue PD3629 Brake Pad Set, disc brake

SKU: PD3629
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£38.35 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
M-CLASS (W164)
Description Cylinder Capacity Horse Power Year
ML 350 4-matic (164.186) 3498 CCM 272 HP 02/2005 - 12/2011
ML 500 4-matic (164.175) 4966 CCM 306 HP 07/2005 - 12/2011
ML 280 CDI 4-matic (164.120) 2987 CCM 190 HP 07/2005 - 07/2009
ML 320 CDI 4-matic (164.122) 2987 CCM 224 HP 07/2005 - 07/2009
ML 420 CDI 4-matic (164.128) 3996 CCM 306 HP 02/2006 - 09/2009
ML 500 4-matic (164.172) 5461 CCM 388 HP 12/2007 - 12/2011
ML 300 CDI 4-matic (164.120) 2987 CCM 190 HP 07/2009 - 12/2011
ML 350 CDI 4-matic (164.122) 2987 CCM 224 HP 07/2009 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124) 2987 CCM 211 HP 09/2009 - 12/2011
ML 450 CDI 4-matic (164.128) 3996 CCM 306 HP 09/2009 - 12/2011
ML 300 CDI 4-matic (164.121) 2987 CCM 204 HP 02/2010 - 12/2011
ML 350 CDI 4-matic (164.125, 164.124) 2987 CCM 231 HP 02/2010 - 12/2011
ML 320 CDI 4-matic (164.124, 164.125, 164.122) 2987 CCM 211 HP 07/2005 - 07/2011
R-CLASS (W251, V251)
Description Cylinder Capacity Horse Power Year
R 350 CDI 4-matic (251.023, 251.123) 2987 CCM 265 HP 08/2010 - 12/2014
R 350 4-matic (251.065, 251.165) 3498 CCM 272 HP 07/2005 - 12/2012
R 500 4-matic (251.075, 251.175) 4966 CCM 306 HP 08/2005 - 12/2014
R 320 CDI 4-matic (251.022, 251.122) 2987 CCM 224 HP 01/2006 - 07/2010
R 280 CDI 4-matic (251.020) 2987 CCM 190 HP 05/2006 - 12/2012
R 350 (251.056, 251.156) 3498 CCM 272 HP 01/2007 - 12/2012
R 500 4-matic (251.072, 251.172) 5461 CCM 388 HP 05/2007 - 12/2014
R 280 CDI (251.121, 251.026, 251.126) 2987 CCM 190 HP 05/2006 - 12/2012
R 300 CDI (251.021, 251.121, 251.026, 251.126) 2987 CCM 190 HP 07/2009 - 12/2012
R 350 CDI 4-matic (251.022, 251.122) 2987 CCM 224 HP 07/2009 - 12/2012

The Apec Blue PD3629 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with retaining spring, test mark 90R-02A01400/45307, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : ATE
Supplementary Article/Supplementary Info : with retaining spring
Width [mm] : 194
Width 2 [mm] : 193
Height 1 [mm] : 70
Thickness [mm] : 20
Test Mark : 90R-02A01400/45307
Wear Warning Contact : prepared for wear warning indicator
Fitting Position : Front Axle
Vehicle Identification Number (VIN) from : A870951, X197478
  • Vendor APEC BLUE
  • SKU PD3629
  • Barcode 5028906131135
  • MERCEDES-BENZ : 0004201105 0004209704 0044204020 1644200820 1644201820 1644202220 1644202620 44204020 A0004201105 A0004209704 A0044204020 A1644200820 A1644201820 A1644202220 A1644202620 A44204020
  • APEC : PAD1441
  • APEC : PAD1441B
  • APEC : PD3629
  • BLUE PRINT : ADU174237
  • BORG & BECK : BBP2033
  • BOSCH : 0 986 494 165
  • BREMBO : P 50 063
  • DELPHI : LP2125
  • Fahren : FBP3629
  • FEBI BILSTEIN : 16621
  • HELLA : 8DB 355 012-011
  • MEYLE : 025 239 2221
  • MEYLE : 025 239 2221/PD
  • MINTEX : MDB2729
  • NAPA : NBP1118
  • National : NP2942
  • SKF : VKBP 80402
  • TEXTAR : 2392201
  • TEXTAR : 2392281
