Apec Blue PD3677 Brake Pad Set, disc brake - 1
Apec Blue PD3677 Brake Pad Set, disc brake - 1
APEC BLUE

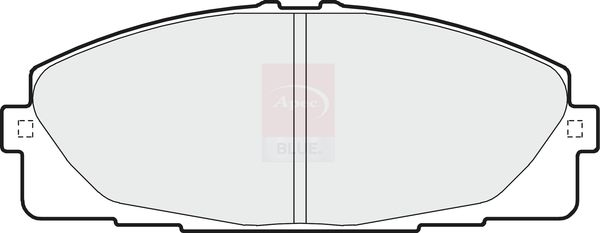

Apec Blue PD3677 Brake Pad Set, disc brake

SKU: PD3677
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£26.97 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
HIACE IV Bus (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KLH12, KLH22) 2494 CCM 95 HP 09/2006 - 12/2012
2.5 D-4D (KLH12, KLH22) 2494 CCM 117 HP 08/2006 - 12/2012
HIACE IV Van (__H1_, __H2_)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KLH12, KLH22) 2494 CCM 117 HP 09/2006 - 12/2012
2.5 D-4D (KLH12, KLH22) 2494 CCM 95 HP 09/2006 - 12/2012
HIACE V Van (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KDH20_, KDH21_, KDH22_, KDH200, KDH220) 2494 CCM 102 HP From 06/2004
2.5 D-4D 2494 CCM 95 HP From 09/2006
2.5 D-4D (KDH200, KDH202, KDH212, KDH222) 2494 CCM 117 HP From 09/2006
HIACE / COMMUTER V Bus (TRH2__, KDH2__, LH2__, GDH2__)
Description Cylinder Capacity Horse Power Year
3.0 D (KDH223) 2982 CCM 136 HP From 05/2010
2.5 D-4D (KDH202) 2494 CCM 102 HP From 09/2006

The Apec Blue PD3677 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Sumitomo brake-system specification, 145 mm width, test mark 90R-02A01399/43821, and not prepared for wear warning indicator. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Sumitomo
Width [mm] : 145
Height 1 [mm] : 56
Thickness [mm] : 15
Test Mark : 90R-02A01399/43821
Wear Warning Contact : not prepared for wear warning indicator
  • Vendor APEC BLUE
  • SKU PD3677
  • Barcode 5028906131616
  • TOYOTA : 0446526420 0446526421 446526420
  • APEC : PAD1624
  • APEC : PD3677
  • BLUE PRINT : ADT342200
  • BORG & BECK : BBP2197
  • BOSCH : 0 986 495 152
  • BREMBO : P 83 139
  • DELPHI : LP2473
  • HELLA : 8DB 355 015-831
  • MEYLE : 025 214 6815
  • MEYLE : 025 214 6815/PD
  • MINTEX : MDB3161
  • NAPA : NBP2925
  • National : NP3047
  • SKF : VKBP 80688
  • TEXTAR : 2468001
