Apec Blue PD3778 Brake Pad Set, disc brake - 1
Apec Blue PD3778 Brake Pad Set, disc brake - 1
APEC BLUE

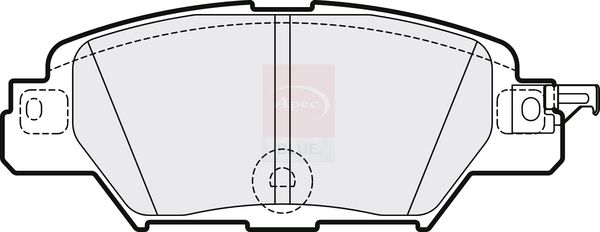

Apec Blue PD3778 Brake Pad Set, disc brake

SKU: PD3778
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£19.93 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
CX-5 (KE, GH)
Description Cylinder Capacity Horse Power Year
2.0 (KEEFW) 1998 CCM 165 HP 11/2011 - 02/2017
2.2 D (KE2FW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE2AW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE102) 2191 CCM 175 HP 04/2012 - 02/2017
CX-5 (KF)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 165 HP From 05/2017
2.0 AWD 1998 CCM 160 HP From 05/2017
2.5 AWD 2488 CCM 194 HP From 05/2017
2.2 D (KF6W) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KFGW) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KF4W2) 2191 CCM 175 HP 05/2017 - 02/2018
2.2 D AWD 2191 CCM 188 HP From 03/2018
2.2 D AWD 2191 CCM 184 HP From 06/2018
2.0 AWD 1998 CCM 165 HP From 06/2018
2.0 1998 CCM 150 HP From 03/2018
2.0 AWD 1998 CCM 150 HP From 03/2018
2.5 2488 CCM 194 HP 03/2019 - 11/2022
2.0 SKYACTIV-G 1998 CCM 163 HP From 03/2018
2.0 SKYACTIV-G AWD 1998 CCM 163 HP From 03/2018
2.2 SKYACTIV-D 2191 CCM 184 HP From 02/2021

The Apec Blue PD3778 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records Akebono brake-system specification, test mark 90R-02A01397/37917, with acoustic wear warning, and rear axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : Akebono
Number of wear indicators [per axle] : 4
Width [mm] : 112
Height 1 [mm] : 43
Thickness [mm] : 14
Test Mark : 90R-02A01397/37917
Wear Warning Contact : with acoustic wear warning
Fitting Position : Rear Axle
Construction Year from : 01.2015
for article number : SDK6755
  • Vendor APEC BLUE
  • SKU PD3778
  • Barcode 5028906132613
  • MAZDA : KAY02648Z KAY02648ZA KBY62648Z
  • APEC : PAD2172
  • APEC : PD3778
  • BLUE PRINT : ADM542114
  • BORG & BECK : BBP2598
  • BOSCH : 0 986 460 006
  • BREMBO : P 49 053
  • Fahren : FBP3778
  • FEBI BILSTEIN : 116422
  • HELLA : 8DB 355 025-461
  • MEYLE : 025 223 3214/PD
  • MINTEX : MDB3866
  • NAPA : NBP1640
  • National : NP2907
  • TEXTAR : 2233201
  • TRW : GDB2163
  • VALEO : 610569
