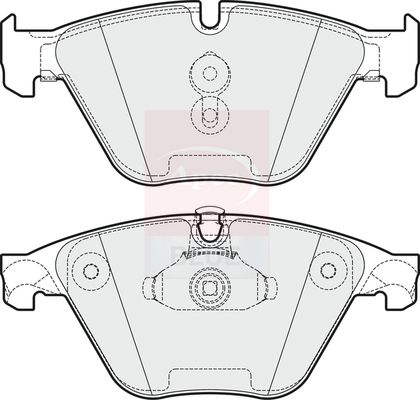

Apec Blue PD3814 Brake Pad Set, disc brake - 1
Apec Blue PD3814 Brake Pad Set, disc brake - 1
APEC BLUE

Apec Blue PD3814 Brake Pad Set, disc brake

SKU: PD3814
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£31.62 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
5 (F10)
Description Cylinder Capacity Horse Power Year
525 d xDrive 1995 CCM 211 HP 09/2011 - 10/2016
525 d 1995 CCM 211 HP 09/2011 - 10/2016
528 i 1997 CCM 245 HP 09/2011 - 10/2016
528 i xDrive 1997 CCM 245 HP 09/2011 - 10/2016
530 i 2996 CCM 272 HP 05/2011 - 06/2013
525 d 1995 CCM 218 HP 09/2011 - 10/2016
525 d xDrive 1995 CCM 218 HP 09/2011 - 10/2016
530 d 2993 CCM 258 HP 09/2011 - 10/2016
530 d xDrive 2993 CCM 258 HP 03/2011 - 10/2016
5 Touring (F11)
Description Cylinder Capacity Horse Power Year
528 i 1997 CCM 245 HP 09/2011 - 02/2017
528 i xDrive 1997 CCM 245 HP 09/2011 - 02/2017
530 i 2996 CCM 272 HP 07/2011 - 06/2013
525 d 1995 CCM 218 HP 09/2011 - 02/2017
525 d xDrive 1995 CCM 218 HP 09/2011 - 02/2017
530 d 2993 CCM 258 HP 09/2011 - 02/2017
530 d xDrive 2993 CCM 258 HP 03/2011 - 02/2017
528 i 2996 CCM 258 HP 11/2009 - 08/2011

The Apec Blue PD3814 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with retaining spring, test mark 90R-02A01398/45264, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : ATE
Supplementary Article/Supplementary Info : with retaining spring
Width [mm] : 155
Height 1 [mm] : 68
Thickness [mm] : 20
Thickness 1 [mm] : 19
Test Mark : 90R-02A01398/45264
Wear Warning Contact : prepared for wear warning indicator
Fitting Position : Front Axle
for article number : SDK6855
  • Vendor APEC BLUE
  • SKU PD3814
  • Barcode 5028906132965
  • BMW : 34112339270 34112449266 34116775314 34116850885
  • APEC : PAD1774
  • APEC : PAD1774B
  • APEC : PD3814
  • BLUE PRINT : ADB114207
  • BLUE PRINT : ADB114208
  • BORG & BECK : BBP2277
  • BOSCH : 0 986 494 549
  • BOSCH : 0 986 494 898
  • BREMBO : P 06 074
  • DELPHI : LP2245
  • Fahren : FBP3814
  • FEBI BILSTEIN : 16433
  • FEBI BILSTEIN : 16728
  • FEBI BILSTEIN : 16865
  • HELLA : 8DB 355 015-261
  • MEYLE : 025 246 8820
  • MEYLE : 025 246 8820/PD
  • MINTEX : MDB3092
  • NAPA : NBP1157
  • National : NP2750
  • TEXTAR : 2468801
  • TEXTAR : 2468881
