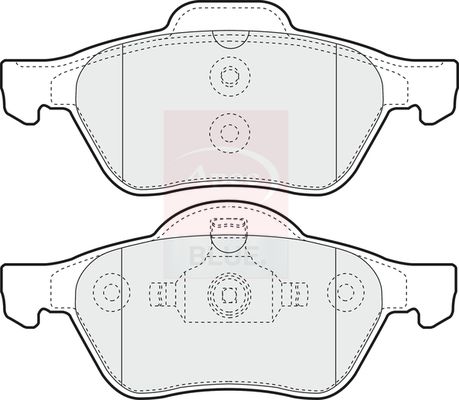

Apec Blue PD3820 Brake Pad Set, disc brake - 1
Apec Blue PD3820 Brake Pad Set, disc brake - 1
APEC BLUE

Apec Blue PD3820 Brake Pad Set, disc brake

SKU: PD3820
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£22.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

RENAULT
LAGUNA II (BG0/1_)
Description Cylinder Capacity Horse Power Year
1.6 16V (BG0A, BG0L) 1598 CCM 107 HP 03/2001 - 05/2005
1.8 16V (BG0B, BG0C, BG0J, BG0M, BG0V) 1783 CCM 121 HP 03/2001 - 05/2005
2.0 16V IDE (BG0N) 1998 CCM 140 HP 04/2001 - 09/2007
1.8 16V (BG0B, BG0M) 1783 CCM 120 HP 03/2001 - 09/2007
1.8 16V (BG06, BG0J, BG0M) 1783 CCM 116 HP 03/2001 - 12/2007
1.9 dCi (BG0R, BG0E) 1870 CCM 100 HP 10/2001 - 05/2005
2.0 16V (BG00, BG0K, BG0P, BG0W) 1998 CCM 135 HP 08/2002 - 12/2007
1.9 dCi (BG05) 1870 CCM 92 HP 03/2004 - 05/2005
LAGUNA II Sport Tourer (KG0/1_)
Description Cylinder Capacity Horse Power Year
1.6 16V (KG0A, KG0L) 1598 CCM 107 HP 03/2001 - 12/2007
1.8 16V 1783 CCM 121 HP 03/2001 - 05/2005
2.0 16V IDE (KG0N) 1998 CCM 140 HP 04/2001 - 09/2007
1.8 16V (KG0J) 1783 CCM 116 HP 03/2001 - 05/2005
1.8 16V (KG0B, KG0M) 1783 CCM 120 HP 03/2001 - 05/2005
1.9 dCi (KG0E, KG0R) 1870 CCM 100 HP 10/2001 - 05/2005
2.0 16V (KG00, KG0K, KG0W, KG0P) 1998 CCM 135 HP 08/2002 - 12/2007
1.9 dCi (KG05) 1870 CCM 92 HP 03/2004 - 05/2005

The Apec Blue PD3820 Brake Pad Set, disc brake is a friction component for the vehicle braking system that provides the replaceable friction material used to slow the relevant disc or drum. Its catalogue specification records ATE brake-system specification, with retaining spring, test mark 90R-02A01400/40235, and front axle fitting position. Match the reference, dimensions, brake system, axle application and wear-sensor provision before fitting; braking components should be installed and checked by a competent person.

Function : Brake Pad Set, disc brake
Brake System : ATE
Supplementary Article/Supplementary Info : with retaining spring
Width [mm] : 156
Width 2 [mm] : 155
Height 1 [mm] : 66
Height 2 [mm] : 69
Thickness [mm] : 18
Test Mark : 90R-02A01400/40235
Wear Warning Contact : not prepared for wear warning indicator
Fitting Position : Front Axle
Rim Size [inch] : 15
  • Vendor APEC BLUE
  • SKU PD3820
  • Barcode 5028906133023
  • RENAULT : 410600012R 410607690R 7701206598 7701208183 7701209100 7701209670 7701209808 8671016178
  • APEC : PAD1270
  • APEC : PD3820
  • BLUE PRINT : ADR164209
  • BORG & BECK : BBP1731
  • BORG & BECK : BBP1806
  • BORG & BECK : BBP2015
  • BOSCH : 0 986 494 034
  • BOSCH : 0 986 494 439
  • BREMBO : P 68 048
  • BREMBO : P 68 048X
  • DELPHI : LP1708
  • FEBI BILSTEIN : 16435
  • FEBI BILSTEIN : 16672
  • HELLA : 8DB 355 013-271
  • MEYLE : 025 232 1518
  • MEYLE : 025 232 1518/PD
  • MINTEX : MDB2883
  • National : NP2161
  • SKF : VKBP 80309
  • TEXTAR : 2453501
