Apec Blue SDK6015 Brake Disc - 1
Apec Blue SDK6015 Brake Disc - 1
APEC BLUE

Apec Blue SDK6015 Brake Disc

SKU: SDK6015
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£35.40 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN
NAVARA NP300 (D40)
Description Cylinder Capacity Horse Power Year
2.5 dCi 4WD (D40TT, D40T, D40M, D40BB) 2488 CCM 190 HP From 12/2009
3.0 dCi 4WD 2993 CCM 231 HP From 02/2010
2.5 dCi 4WD 2488 CCM 174 HP From 07/2005
2.5 dCi 4WD 2488 CCM 171 HP From 10/2006
2.5 dCi 4WD 2488 CCM 144 HP From 01/2007
NAVARA NP300 Platform/Chassis (D40)
Description Cylinder Capacity Horse Power Year
3.0 dCi 2993 CCM 231 HP From 03/2010
2.5 dCi 4WD 2488 CCM 171 HP From 08/2008
PATHFINDER III (R51)
Description Cylinder Capacity Horse Power Year
2.5 dCi 4WD 2488 CCM 174 HP 01/2005 - 01/2010
4.0 4WD 3954 CCM 269 HP From 09/2005
2.5 dCi 2488 CCM 174 HP 01/2005 - 01/2010
2.5 dCi 4WD 2488 CCM 171 HP From 10/2006
2.5 dCi 4WD 2488 CCM 190 HP From 08/2010
3.0 dCi 2993 CCM 231 HP From 08/2010
2.5 dCi 4WD 2488 CCM 163 HP From 01/2005

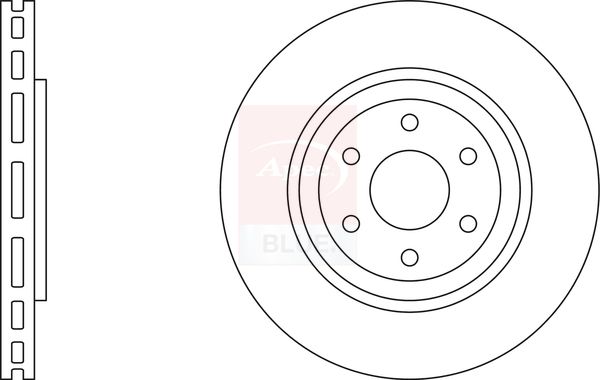

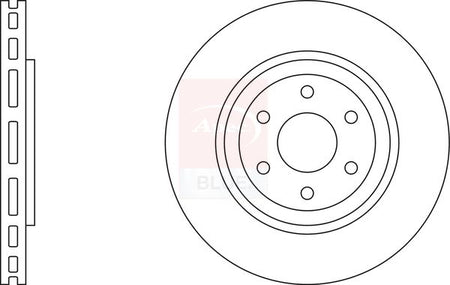

The Apec Blue SDK6015 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 320 mm outer diameter, 28 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 320
Brake Disc Thickness [mm] : 28
Height [mm] : 38
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 68
Number of Holes : 6
Test Mark : 90R-02C0349/1006
  • Vendor APEC BLUE
  • SKU SDK6015
  • Barcode 5028906055400
  • NISSAN : 402063X00B 402065X00A 40206EB320
  • APEC : DSK2593
  • APEC : SDK6015
  • BLUE PRINT : ADN143118
  • BORG & BECK : BBD5145
  • BOSCH : 0 986 479 357
  • BOSCH : 0 986 479 S35
  • Fahren : FBD6015
  • FEBI BILSTEIN : 108419
  • HELLA : 8DD 355 119-001
  • MEYLE : 36-15 521 0073
  • MEYLE : 36-15 521 0073/PD
  • MINTEX : MDC1834
  • MINTEX : MDC1834C
  • NAPA : NBD5528
  • National : NBD1410
  • SKF : VKBD 81067 V1
  • TEXTAR : 92164403
  • TEXTAR : 92164405
  • TRW : DF6425
  • VALEO : 673244
