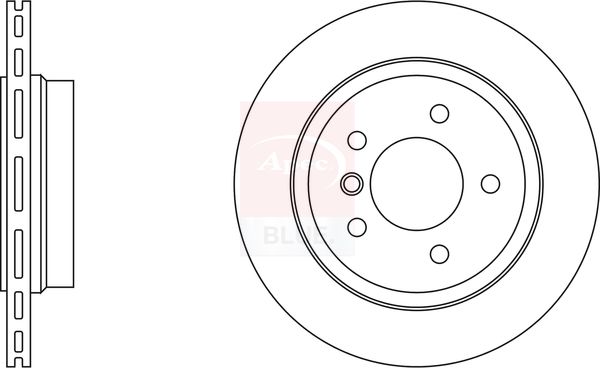

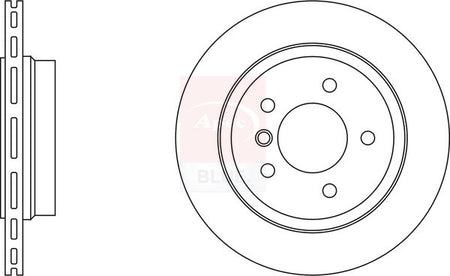

Apec Blue SDK6074 Brake Disc - 1
Apec Blue SDK6074 Brake Disc - 1
APEC BLUE

Apec Blue SDK6074 Brake Disc

SKU: SDK6074
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£24.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
3 (E46)
Description Cylinder Capacity Horse Power Year
328 i 2793 CCM 193 HP 02/1998 - 06/2000
323 i 2494 CCM 170 HP 03/1998 - 09/2000
320 i 1990 CCM 150 HP 03/1998 - 09/2000
320 i 2171 CCM 170 HP 09/2000 - 02/2005
325 i 2494 CCM 192 HP 09/2000 - 02/2005
325 xi 2494 CCM 192 HP 09/2000 - 02/2005
318 i 1995 CCM 143 HP 09/2001 - 02/2005
3 Coupe (E46)
Description Cylinder Capacity Horse Power Year
328 Ci 2793 CCM 193 HP 12/1998 - 05/2000
325 Ci 2494 CCM 192 HP 09/2000 - 05/2006
320 Cd 1995 CCM 150 HP 11/2003 - 07/2006
3 Touring (E46)
Description Cylinder Capacity Horse Power Year
328 i 2793 CCM 193 HP 06/1999 - 05/2000
320 i 2171 CCM 170 HP 09/2000 - 02/2005
325 i 2494 CCM 192 HP 09/2000 - 02/2005
325 xi 2494 CCM 192 HP 09/2000 - 02/2005
320 d 1995 CCM 150 HP 09/2001 - 02/2005
318 d 1951 CCM 115 HP 10/2002 - 03/2003
3 Convertible (E46)
Description Cylinder Capacity Horse Power Year
323 Ci 2494 CCM 170 HP 04/2000 - 09/2000
320 Ci 2171 CCM 170 HP 09/2000 - 12/2007
325 Ci 2494 CCM 192 HP 09/2000 - 08/2006
320 Cd 1995 CCM 150 HP 02/2005 - 12/2007
320 Ci 2171 CCM 163 HP 01/2006 - 12/2007
323 Ci 2494 CCM 163 HP 04/2000 - 09/2000
3 Compact (E46)
Description Cylinder Capacity Horse Power Year
325 ti 2494 CCM 192 HP 04/2001 - 12/2004
320 td 1995 CCM 150 HP 09/2001 - 02/2005
320 td 1995 CCM 136 HP 10/2001 - 12/2002

The Apec Blue SDK6074 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 294 mm outer diameter, 19 mm brake disc thickness, and 75 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 294
Brake Disc Thickness [mm] : 19
Height [mm] : 59
Bolt Hole Circle Ø [mm] : 120
Centering Diameter [mm] : 75
Number of Holes : 5
Test Mark : 90R-02C0494/1375
  • Vendor APEC BLUE
  • SKU SDK6074
  • Barcode 5028906055981
  • BMW : 34211165563 34216855154 34216864056
  • APEC : DSK977
  • APEC : SDK6074
  • BLUE PRINT : ADB114336
  • BORG & BECK : BBD4184
  • BOSCH : 0 986 478 570
  • Fahren : FBD6074
  • FEBI BILSTEIN : 17925
  • HELLA : 8DD 355 106-571
  • MEYLE : 315 523 0059
  • MEYLE : 315 523 0059/PD
  • MINTEX : MDC1384C
  • NAPA : NBD5381
  • National : NBD977
  • SKF : VKBD 90447 V2
  • TEXTAR : 92097300
  • TEXTAR : 92097303
