Apec Blue SDK6076 Brake Disc - 1
Apec Blue SDK6076 Brake Disc - 1
APEC BLUE

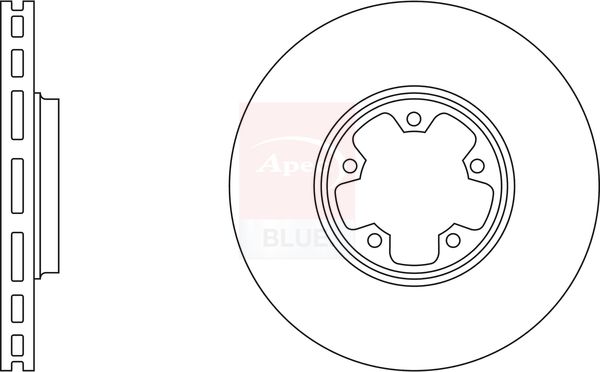

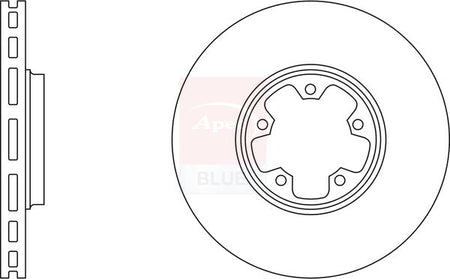

Apec Blue SDK6076 Brake Disc

SKU: SDK6076
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£21.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (F_E_, F_F_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi (F_E_, F_F_) 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (F_E_, F_F_, F_G_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi (F_F_, F_E_, F_G_) 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 75 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 100 HP 08/2000 - 05/2006
2.0 DI (FAE_, FAF_, FAG_) 1998 CCM 86 HP 08/2000 - 05/2006
2.0 TDCi 1998 CCM 125 HP 08/2002 - 05/2006
TRANSIT TOURNEO Bus (FC_ _)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 125 HP 03/2002 - 03/2006
2.0 1998 CCM 75 HP 06/2000 - 08/2003
2.0 1998 CCM 101 HP 06/2000 - 03/2005

The Apec Blue SDK6076 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 276 mm outer diameter, 24 mm brake disc thickness, and 82 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 276
Brake Disc Thickness [mm] : 24
Height [mm] : 43
Bolt Hole Circle Ø [mm] : 100
Centering Diameter [mm] : 82
Number of Holes : 5
Test Mark : 90R-02C0349/1034
  • Vendor APEC BLUE
  • SKU SDK6076
  • Barcode 5028906056001
  • FORD : 1456667 1473008 1520371 1568654 1738807 1C1J1125A1D 1C1J1125A2D 1C1J1125AB 1C1J1125AC 1C1J1125AD 1C1W1125AA 1C1W1125AB 4041427 4395257 K1W1125AA
  • APEC : DSK2057
  • APEC : SDK6076
  • BLUE PRINT : ADF124346
  • BORG & BECK : BBD4241
  • BORG & BECK : BBD4686
  • BOSCH : 0 986 478 299
  • BOSCH : 0 986 479 B28
  • BOSCH : 0 986 479 B29
  • FEBI BILSTEIN : 19514
  • HELLA : 8DD 355 108-121
  • MEYLE : 715 521 7022
  • MINTEX : MDC1527
  • MINTEX : MDC1527C
  • NAPA : NBD5559
  • National : NBD1114
  • SKF : VKBD 80255 V2
  • TEXTAR : 92110003
