Apec Blue SDK6106 Brake Disc - 1
Apec Blue SDK6106 Brake Disc - 1
APEC BLUE

Apec Blue SDK6106 Brake Disc

SKU: SDK6106
Your selected vehicle
Out of stock
Out of Stock
£22.00 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
CARISMA (DA_)
Description Cylinder Capacity Horse Power Year
1.8 (DA2A) 1834 CCM 116 HP 07/1995 - 07/1997
1.6 (DA1A) 1597 CCM 99 HP 05/1997 - 06/2006
1.8 16V GDI (DA2A) 1834 CCM 125 HP 09/1997 - 06/2006
1.9 DI-D (DA5A) 1870 CCM 102 HP 09/2000 - 06/2006
1.9 DI-D (DA5A) 1870 CCM 115 HP 09/2000 - 06/2006
1.6 (DA1A) 1597 CCM 95 HP 12/1998 - 06/2006
1.6 (DA1A) 1597 CCM 103 HP 05/1995 - 12/2003
CARISMA Saloon (DA_)
Description Cylinder Capacity Horse Power Year
1.6 (DA1A) 1597 CCM 90 HP 09/1996 - 06/2006
1.8 (DA2A) 1834 CCM 115 HP 09/1996 - 09/1997
1.6 (DA1A) 1597 CCM 99 HP 05/1997 - 06/2006
1.8 16V GDI (DA2A) 1834 CCM 125 HP 09/1997 - 06/2006
1.9 DI-D (DA5A) 1870 CCM 102 HP 09/2000 - 06/2006
1.9 DI-D (DA5A) 1870 CCM 115 HP 09/2000 - 06/2006
1.6 (DA1A) 1597 CCM 95 HP 12/1998 - 06/2006
1.6 (DA1A) 1597 CCM 103 HP 09/2000 - 06/2006
1.3 16V 1299 CCM 82 HP 09/2000 - 10/2004
1.3 1298 CCM 75 HP 09/2000 - 10/2004
VOLVO
S40 I (644)
Description Cylinder Capacity Horse Power Year
1.8 1731 CCM 115 HP 07/1995 - 08/1999
2.0 1948 CCM 136 HP 07/1995 - 12/2003
1.9 TD 1870 CCM 90 HP 07/1995 - 08/1999
2.0 1948 CCM 140 HP 07/1995 - 08/1999
1.6 1587 CCM 105 HP 09/1995 - 08/1999
1.9 T4 1855 CCM 200 HP 05/1997 - 07/2000
1.9 DI 1870 CCM 95 HP 03/1999 - 07/2000
2.0 T 1948 CCM 160 HP 10/1997 - 12/2003
1.8 i 1834 CCM 125 HP 03/1998 - 12/2003
1.6 1587 CCM 109 HP 03/1999 - 12/2003
1.8 1783 CCM 122 HP 03/1999 - 12/2003
1.9 DI 1870 CCM 102 HP 07/2000 - 12/2003
1.9 DI 1870 CCM 115 HP 07/2000 - 12/2003
2.0 T4 1948 CCM 200 HP 07/2000 - 12/2003
2.0 T 1948 CCM 165 HP 07/2000 - 06/2001
V40 Estate (645)
Description Cylinder Capacity Horse Power Year
1.8 1731 CCM 115 HP 07/1995 - 08/1999
2.0 1948 CCM 136 HP 07/1995 - 06/2004
1.9 TD 1870 CCM 90 HP 07/1995 - 08/1999
2.0 1948 CCM 140 HP 07/1995 - 08/1999
1.6 1587 CCM 105 HP 12/1995 - 08/1999
1.9 T4 1855 CCM 200 HP 05/1997 - 07/2000
2.0 T 1948 CCM 160 HP 10/1997 - 01/2004
1.9 DI 1870 CCM 95 HP 03/1999 - 07/2000
1.8 i 1834 CCM 125 HP 03/1998 - 06/2004
1.6 1587 CCM 109 HP 03/1999 - 06/2004
1.8 1783 CCM 122 HP 03/1999 - 06/2004
1.9 DI 1870 CCM 102 HP 07/2000 - 06/2004
1.9 DI 1870 CCM 115 HP 07/2000 - 06/2004
2.0 T4 1948 CCM 200 HP 07/2000 - 06/2004
2.0 T 1948 CCM 165 HP 07/1999 - 06/2004

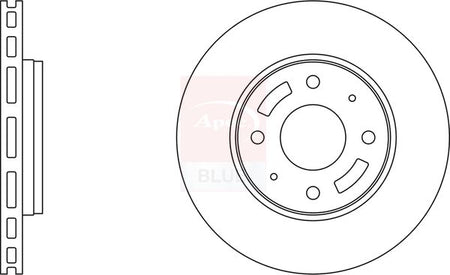

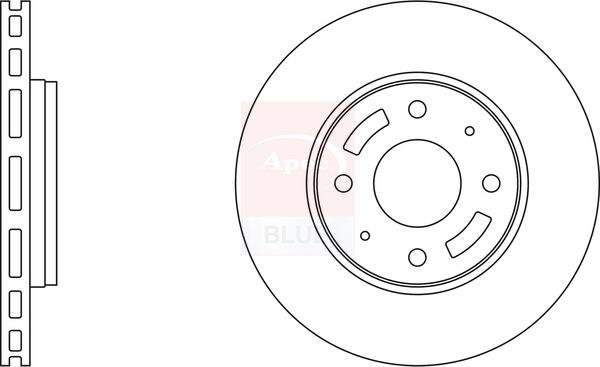

The Apec Blue SDK6106 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 281 mm outer diameter, 24 mm brake disc thickness, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 281
Brake Disc Thickness [mm] : 24
Height [mm] : 45
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 69
Number of Holes : 4
Test Mark : 90R-02C0411/1075
  • Vendor APEC BLUE
  • SKU SDK6106
  • Barcode 5028906056308
  • MITSUBISHI : M818027
  • VOLVO : 3081802 30818027 308180272
  • APEC : DSK799
  • APEC : SDK6106
  • BLUE PRINT : ADC44389
  • BORG & BECK : BBD4132
  • BORG & BECK : BBD5192
  • BOSCH : 0 986 478 493
  • BOSCH : 0 986 479 B37
  • DELPHI : BG3501
  • FEBI BILSTEIN : 14844
  • HELLA : 8DD 355 107-031
  • MEYLE : 515 521 5019
  • MINTEX : MDC1081
  • NAPA : NBD5493
  • National : NBD970
  • SKF : VKBD 80262 V2
  • TEXTAR : 92100403
