Apec Blue SDK6174 Brake Disc - 1
Apec Blue SDK6174 Brake Disc - 1
APEC BLUE

Apec Blue SDK6174 Brake Disc

SKU: SDK6174
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£24.74 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
PAJERO/SHOGUN Mk II (V3_W, V2_W, V4_W, V5_W)
Description Cylinder Capacity Horse Power Year
3.5 Evolution (V55W) 3497 CCM 280 HP 10/1997 - 08/1999
PAJERO/SHOGUN III (V7_W, V6_W)
Description Cylinder Capacity Horse Power Year
3.5 (V65W, V75W) 3497 CCM 203 HP 04/2000 - 01/2007
3.2 DI-D (V68W) 3200 CCM 160 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 10/2006
2.5 TDi (V64W) 2477 CCM 99 HP 04/2000 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 115 HP 09/2001 - 12/2006
PAJERO/SHOGUN Mk III Canvas Top (V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D (V68W, V78W) 3200 CCM 165 HP 04/2000 - 12/2006
3.2 DI-D (V68W, V78W) 3200 CCM 160 HP 10/2001 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 99 HP 04/2000 - 12/2006
2.5 TDi (V64W, V74W) 2477 CCM 115 HP 09/2001 - 12/2006
PAJERO/SHOGUN CLASSIC (V2_W, V6_W, V7_W)
Description Cylinder Capacity Horse Power Year
2.5 TD (V24W) 2477 CCM 115 HP From 07/2001
3.2 DI-D (V68W, V78W) 3200 CCM 170 HP From 09/2006
PAJERO/SHOGUN IV (V8_W, V9_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 190 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 160 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 170 HP From 02/2007
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 200 HP From 01/2009
3.2 DI-D 3200 CCM 167 HP From 02/2007
3.2 4WD (V98W) 3200 CCM 192 HP From 10/2016
PAJERO/SHOGUN IV Van (V9_, V8_, V8_V)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 3200 CCM 160 HP From 11/2006
3.2 TD 4WD (V88V, V98V) 3200 CCM 200 HP From 01/2010
3.2 DI-D 4WD (V88W, V98W) 3200 CCM 190 HP From 02/2007
SHOGUN II (V3_W)
Description Cylinder Capacity Horse Power Year
3.2 DiD 4WD 3200 CCM 165 HP 04/2000 - 09/2007
3.2 DiD 4WD 3200 CCM 160 HP 05/2005 - 09/2007

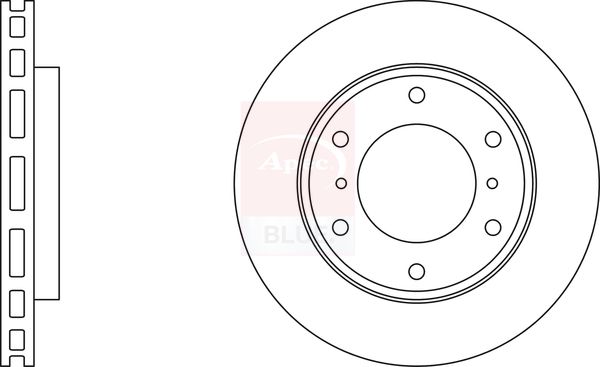

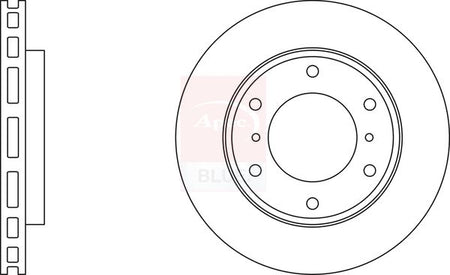

The Apec Blue SDK6174 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 290 mm outer diameter, 26 mm brake disc thickness, and 94 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 290
Brake Disc Thickness [mm] : 26
Height [mm] : 46
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 94
Number of Holes : 6
Test Mark : 90R-02C0448/1334
  • Vendor APEC BLUE
  • SKU SDK6174
  • Barcode 5028906095246
  • MITSUBISHI : MN116706 MR407116 MR407289
  • APEC : DSK2198
  • APEC : SDK6174
  • BLUE PRINT : ADC443110
  • BORG & BECK : BBD4357
  • BOSCH : 0 986 478 990
  • Fahren : FBD6174
  • FEBI BILSTEIN : 26048
  • HELLA : 8DD 355 118-631
  • MEYLE : 32-15 521 0029
  • MEYLE : 32-15 521 0029/PD
  • MINTEX : MDC1576
  • NAPA : NBD5376
  • National : NBD1195
  • SKF : VKBD 80432 V2
  • TEXTAR : 92128800
  • TEXTAR : 92128803
