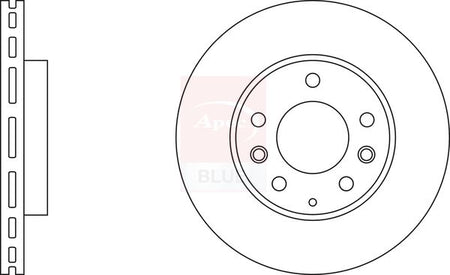

Apec Blue SDK6180 Brake Disc - 1

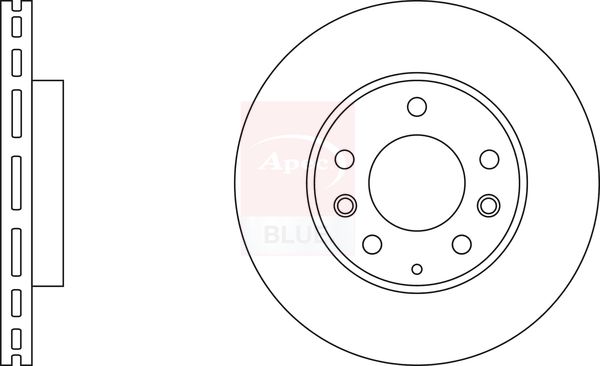

Apec Blue SDK6180 Brake Disc - 1
APEC BLUE

Apec Blue SDK6180 Brake Disc

SKU: SDK6180
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£26.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
6 Saloon (GG)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 120 HP 08/2002 - 08/2007
6 Hatchback (GG)
Description Cylinder Capacity Horse Power Year
1.8 1798 CCM 120 HP 08/2002 - 08/2007
323 F/P Mk VI Hatchback (BJ)
Description Cylinder Capacity Horse Power Year
2.0 (BJFW) 1991 CCM 131 HP 01/2001 - 05/2004
626 Mk V (GF)
Description Cylinder Capacity Horse Power Year
2.0 (GFEP, GF12) 1991 CCM 115 HP 05/1997 - 10/2002
2.0 Turbo DI (GFFP) 1998 CCM 101 HP 04/1998 - 10/2002
2.0 (GFEP) 1991 CCM 136 HP 04/1998 - 10/2002
626 Mk V Hatchback (GF)
Description Cylinder Capacity Horse Power Year
1.8 (GF8P) 1840 CCM 90 HP 05/1997 - 12/1999
2.0 (GFEP) 1991 CCM 115 HP 05/1997 - 10/2002
2.0 H.P. (GFEP) 1991 CCM 136 HP 02/1998 - 10/2002
2.0 Turbo DI (GFFP) 1998 CCM 101 HP 04/1998 - 10/2002
1.9 (GF8P) 1840 CCM 100 HP 12/1999 - 10/2002
626 Mk V Station Wagon (GW)
Description Cylinder Capacity Horse Power Year
2.0 (GWEW) 1991 CCM 116 HP 02/1998 - 10/2002
2.0 H.P. (GWEW) 1991 CCM 136 HP 02/1998 - 10/2002
2.0 Turbo DI (GWFW) 1998 CCM 101 HP 04/1998 - 10/2002
PREMACY (CP)
Description Cylinder Capacity Horse Power Year
2.0 (CP10S) 1991 CCM 131 HP 11/2001 - 03/2005

The Apec Blue SDK6180 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 273 mm outer diameter, 24 mm brake disc thickness, and 72 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 273
Brake Disc Thickness [mm] : 24
Height [mm] : 47
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 72
Number of Holes : 5
Test Mark : 90R-02C0349/1019
  • Vendor APEC BLUE
  • SKU SDK6180
  • Barcode 5028906095307
  • MAZDA : G25Y3325XA GF3Y3325X GF3Y3325XA
  • APEC : DSK2150
  • APEC : SDK6180
  • BLUE PRINT : ADM54359
  • BORG & BECK : BBD4351
  • BOSCH : 0 986 479 034
  • FEBI BILSTEIN : 108454
  • MEYLE : 35-15 521 0026
  • MINTEX : MDC1543
  • National : NBD1160
  • SKF : VKBD 80527 V2
  • TEXTAR : 92110400
