Apec Blue SDK6184 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: SDK6184

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock

Orders placed by 17:00 are usually dispatched the same working day

£36.72 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA

ALTEZZA GITA Estate (_XE1_)

Description	Cylinder Capacity	Horse Power	Year
2.0 (GXE10)	1988 CCM	155 HP	01/1999 - 06/2001
3.0 (JCE10)	2997 CCM	214 HP	07/2001 - 11/2005
2.0 (GXE10)	1988 CCM	160 HP	07/2001 - 07/2005

ALTEZZA (_E1_)

Description	Cylinder Capacity	Horse Power	Year
3.0 (JCE10)	2997 CCM	214 HP	07/2001 - 11/2005
2.0 VVTi (SXE10)	1998 CCM	200 HP	10/1998 - 11/2005
2.0 VVTi (GXE10)	1988 CCM	160 HP	01/1999 - 05/2005
2.0 VVTi (SXE10)	1998 CCM	209 HP	02/1999 - 11/2005

ARISTO (_S14_)

Description	Cylinder Capacity	Horse Power	Year
3.0 (JZS147)	2997 CCM	279 HP	10/1990 - 09/1996

ARISTO (_S16_)

Description	Cylinder Capacity	Horse Power	Year
3.0 (JZS160)	2997 CCM	231 HP	08/1997 - 09/2004
3.0 (JZS161)	2997 CCM	280 HP	08/1997 - 09/2004

SUPRA (_A8_)

Description	Cylinder Capacity	Horse Power	Year
3.0 i Bi-Turbo (JZA80_, JZA80R)	2997 CCM	330 HP	05/1993 - 07/2002
3.0 i (JZA80_, JZA80R)	2997 CCM	228 HP	05/1993 - 07/2002
3.0 (JZA80_, JZA80R)	2997 CCM	224 HP	05/1993 - 10/1999
3.0 i Bi-Turbo (JZA80_)	2997 CCM	326 HP	03/1994 - 07/2002

LEXUS

GS (JZS147_)

Description	Cylinder Capacity	Horse Power	Year
300 (JZS147_, JZS147R)	2997 CCM	212 HP	01/1993 - 08/1997

GS (_S16_)

Description	Cylinder Capacity	Horse Power	Year
300 (JZS160_, JZS160R)	2997 CCM	222 HP	08/1997 - 10/2000
430 (UZS161_, UZS161R)	4293 CCM	283 HP	11/2000 - 12/2004
300 (JZS160_, JZS160R)	2997 CCM	219 HP	10/2000 - 12/2004

IS I (_E1_)

Description	Cylinder Capacity	Horse Power	Year
200 (GXE10)	1988 CCM	155 HP	04/1999 - 07/2005
300 (JCE10)	2997 CCM	213 HP	09/2001 - 07/2005

IS SportCross (_E1_)

Description	Cylinder Capacity	Horse Power	Year
300 (JCE10_, JCE10R)	2997 CCM	213 HP	10/2001 - 10/2005
200 (GXE10_, GXE10R)	1988 CCM	155 HP	10/2002 - 10/2005

LS (_F1_)

Description	Cylinder Capacity	Horse Power	Year
400 (UCF10)	3969 CCM	245 HP	12/1989 - 12/1995

SC Coupe (_ZZ3_)

Description	Cylinder Capacity	Horse Power	Year
400 (UZZ30)	3969 CCM	264 HP	08/1991 - 12/1997
300 (JZZ31)	2997 CCM	220 HP	01/1995 - 03/2000
400 (UZZ30)	3969 CCM	253 HP	09/1991 - 07/2000

SC Convertible (UZZ40_)

Description	Cylinder Capacity	Horse Power	Year
430 (UZZ40_, UZZ40R)	4293 CCM	286 HP	05/2001 - 07/2010

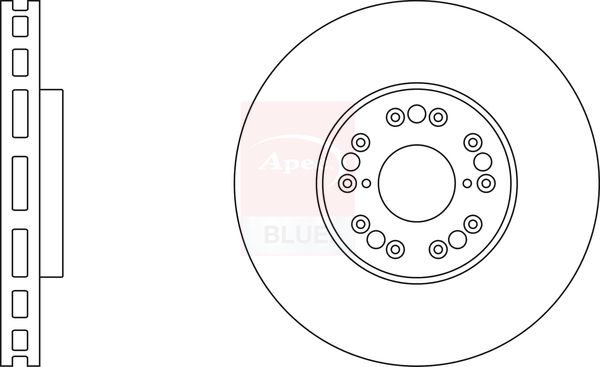

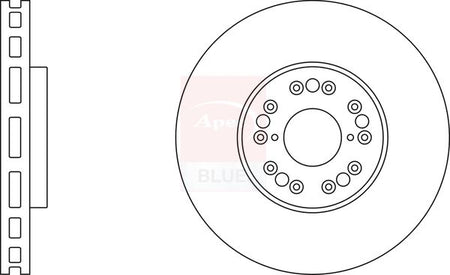

The Apec Blue SDK6184 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 296 mm outer diameter, 32 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 296

Brake Disc Thickness [mm] : 32

Height [mm] : 51

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 62

Number of Holes : 5

Test Mark : 90R-02C0349/0655
