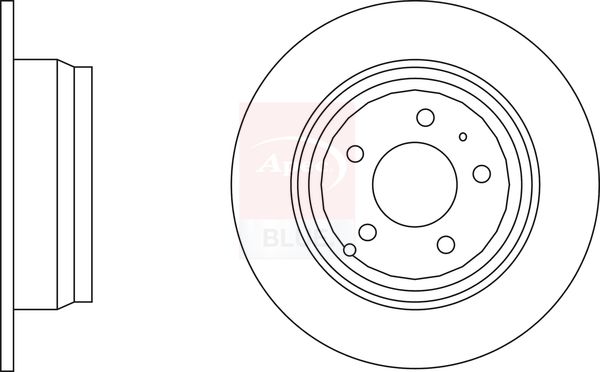

Apec Blue SDK6189 Brake Disc - 1

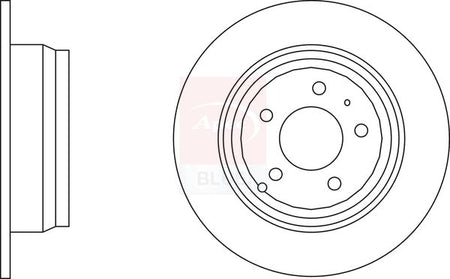

Apec Blue SDK6189 Brake Disc - 1
APEC BLUE

Apec Blue SDK6189 Brake Disc

SKU: SDK6189
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£19.85 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
850 (854)
Description Cylinder Capacity Horse Power Year
2.4 2435 CCM 144 HP 08/1994 - 12/1996
2.0 1984 CCM 126 HP 08/1994 - 12/1996
2.5 TDI 2460 CCM 140 HP 08/1995 - 12/1996
T5 2319 CCM 226 HP 08/1993 - 07/1996
T5-R 2319 CCM 250 HP 08/1995 - 12/1996
2.3 Turbo R 2319 CCM 243 HP 09/1994 - 10/1997
850 Estate (855)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 126 HP 08/1994 - 12/1996
2.5 TDI 2460 CCM 140 HP 08/1995 - 12/1996
2.4 2435 CCM 144 HP 08/1994 - 12/1996
2.4 AWD 2435 CCM 193 HP 04/1996 - 10/1997
T5 2319 CCM 226 HP 02/1993 - 12/1996
T5-R 2319 CCM 250 HP 08/1995 - 12/1996
2.3 Turbo R 2319 CCM 243 HP 09/1994 - 10/1997
C70 I Coupe (872)
Description Cylinder Capacity Horse Power Year
2.0 T 1984 CCM 226 HP 03/1997 - 09/2002
2.0 1984 CCM 180 HP 03/1997 - 09/2002
T-5 2319 CCM 240 HP 03/1997 - 09/2002
2.4 T 2435 CCM 193 HP 03/1997 - 09/2002
2.4 2435 CCM 165 HP 03/1999 - 09/2002
2.4 2435 CCM 170 HP 05/1999 - 09/2002
2.0 T 1984 CCM 163 HP 03/2000 - 09/2002
C70 I Convertible (873)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 180 HP 03/1998 - 10/2005
2.0 T 1984 CCM 226 HP 03/1998 - 10/2005
T5 2319 CCM 239 HP 03/1998 - 10/2005
2.4 T 2435 CCM 193 HP 03/1998 - 10/2005
2.4 2435 CCM 170 HP 06/1998 - 10/2005
2.0 T 1984 CCM 163 HP 03/2000 - 10/2005
2.4 T 2435 CCM 200 HP 04/1999 - 08/2002
T5 2319 CCM 245 HP 07/2002 - 10/2005
S70 (874)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 126 HP 01/1997 - 11/2000
2.4 2435 CCM 144 HP 01/1997 - 11/2000
2.4 2435 CCM 170 HP 01/1997 - 11/2000
2.4 Turbo 2435 CCM 193 HP 01/1997 - 11/2000
T5 2319 CCM 239 HP 01/1997 - 11/2000
2.5 TDI 2460 CCM 140 HP 01/1997 - 11/2000
2.3 Turbo 2319 CCM 250 HP 01/1997 - 11/2000
2.4 Bifuel 2435 CCM 144 HP 10/1998 - 11/2000
2.4 2435 CCM 165 HP 06/1998 - 11/2000
2.4 2435 CCM 140 HP 08/1999 - 11/2000
2.4 Bifuel 2435 CCM 140 HP 07/1999 - 11/2000
V70   (875, 876)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 126 HP 12/1995 - 03/2000
2.4 2435 CCM 144 HP 12/1995 - 03/2000
2.4 2435 CCM 170 HP 12/1995 - 05/2000
2.4 Turbo 2435 CCM 193 HP 04/1996 - 12/2000
2.3 T-5 2319 CCM 239 HP 11/1996 - 12/2000
2.5 TDI 2460 CCM 140 HP 12/1995 - 12/2000
2.0 1984 CCM 143 HP 12/1995 - 03/2000
2.3 Turbo 2319 CCM 250 HP 12/1995 - 03/2000
2.0 1984 CCM 180 HP 11/1996 - 03/2000
2.4 Bifuel 2435 CCM 144 HP 05/1998 - 12/1999

The Apec Blue SDK6189 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 295 mm outer diameter, 10 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 295
Brake Disc Thickness [mm] : 10
Height [mm] : 72
Bolt Hole Circle Ø [mm] : 108
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C0357/1377
  • Vendor APEC BLUE
  • SKU SDK6189
  • Barcode 5028906095390
  • VOLVO : 271794 2717940 31262099 9140144
  • APEC : DSK916
  • APEC : SDK6189
  • BLUE PRINT : ADF124334
  • BORG & BECK : BBD4770
  • BORG & BECK : BBD5062
  • BORG & BECK : BBD5601
  • BOSCH : 0 986 478 628
  • FEBI BILSTEIN : 11455
  • HELLA : 8DD 355 103-701
  • MEYLE : 515 523 0013
  • MEYLE : 515 523 0013/PD
  • MINTEX : MDC920
  • National : NBD591
  • SKF : VKBD 90291 S2
  • TEXTAR : 92066803
  • TRW : DF2660
  • VALEO : 673387
