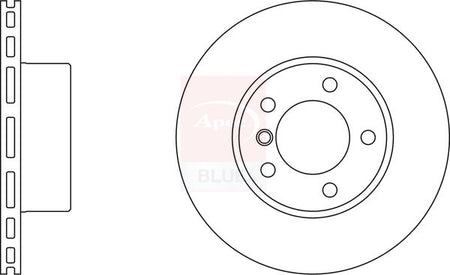

Apec Blue SDK6190 Brake Disc - 1

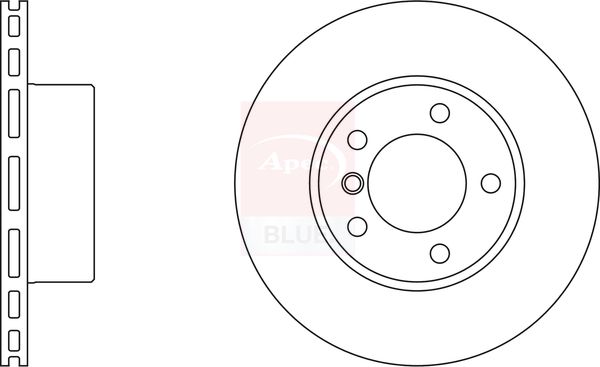

Apec Blue SDK6190 Brake Disc - 1
APEC BLUE

Apec Blue SDK6190 Brake Disc

SKU: SDK6190
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£30.26 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
5 (E39)
Description Cylinder Capacity Horse Power Year
520 i 1990 CCM 150 HP 01/1996 - 06/2003
525 tds 2497 CCM 143 HP 01/1996 - 06/2003
523 i 2494 CCM 170 HP 09/1995 - 08/2000
528 i 2793 CCM 193 HP 09/1995 - 08/2000
535 i 3498 CCM 235 HP 06/1996 - 08/1998
525 td 2497 CCM 116 HP 01/1997 - 06/2003
530 d 2926 CCM 184 HP 08/1998 - 09/2000
520 i 1990 CCM 136 HP 01/1996 - 06/2003
520 d 1951 CCM 136 HP 02/2000 - 06/2003
525 d 2497 CCM 163 HP 02/2000 - 06/2003
520 i 2171 CCM 170 HP 09/2000 - 06/2003
5 Touring (E39)
Description Cylinder Capacity Horse Power Year
520 i 1990 CCM 150 HP 03/1997 - 08/2001
523 i 2494 CCM 170 HP 03/1997 - 08/2000
528 i 2793 CCM 193 HP 11/1996 - 08/2000
530 d 2926 CCM 184 HP 08/1998 - 09/2000
525 tds 2497 CCM 143 HP 03/1997 - 05/2004
520 i 1990 CCM 136 HP 03/1997 - 08/2001
520 d 1951 CCM 136 HP 02/2000 - 09/2003
525 d 2497 CCM 163 HP 02/2000 - 05/2004
520 i 2171 CCM 170 HP 09/2000 - 12/2003
525 i 2494 CCM 192 HP 09/2000 - 05/2004
520 i 2171 CCM 163 HP 09/2000 - 12/2003
523 i 2494 CCM 163 HP 09/1998 - 08/2000

The Apec Blue SDK6190 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 296 mm outer diameter, 22 mm brake disc thickness, and 79 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 296
Brake Disc Thickness [mm] : 22
Height [mm] : 76
Bolt Hole Circle Ø [mm] : 120
Centering Diameter [mm] : 79
Number of Holes : 5
Test Mark : 90R-02C0349/0675
  • Vendor APEC BLUE
  • SKU SDK6190
  • Barcode 5028906095406
  • BMW : 34111163013 34111163081 34111164839 34116767061
  • APEC : DSK934
  • APEC : SDK6190
  • BLUE PRINT : ADB114341
  • BORG & BECK : BBD4067
  • BORG & BECK : BBD5163
  • BOSCH : 0 986 478 848
  • BOSCH : 0 986 479 R72
  • FEBI BILSTEIN : 10753
  • HELLA : 8DD 355 104-591
  • MEYLE : 315 521 3019
  • MEYLE : 383 521 3019/PD
  • MINTEX : MDC989
  • National : NBD811
  • SKF : VKBD 80410 V1
  • TEXTAR : 92075000
  • TEXTAR : 92075005
