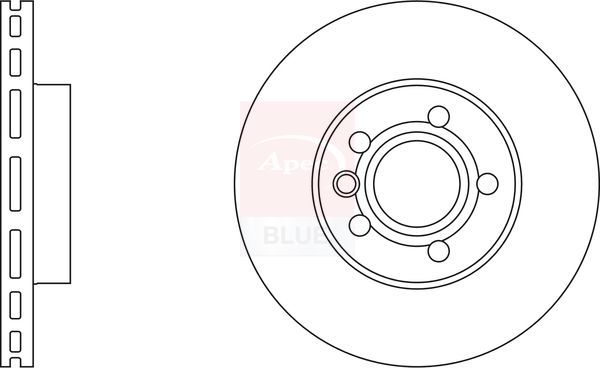

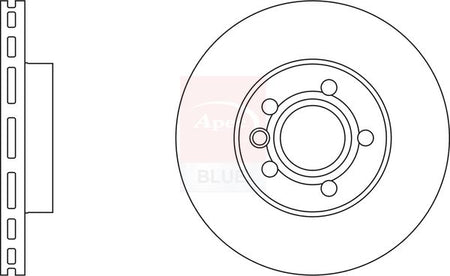

Apec Blue SDK6217 Brake Disc - 1
Apec Blue SDK6217 Brake Disc - 1
APEC BLUE

Apec Blue SDK6217 Brake Disc

SKU: SDK6217
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£23.38 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
GALAXY I (WGR)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 03/1995 - 05/2006
2.0 i 1998 CCM 116 HP 11/1995 - 05/2006
2.8 i V6 2792 CCM 174 HP 11/1995 - 04/2000
2.8 i V6 4x4 2792 CCM 174 HP 04/1996 - 04/2000
2.3 16V 2295 CCM 146 HP 01/1997 - 05/2006
1.9 TDI 1896 CCM 110 HP 08/1997 - 04/2000
1.9 TDI 1896 CCM 115 HP 04/2000 - 05/2006
GALAXY MK I VAN (WGR)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 116 HP 03/1996 - 03/2006
2.3 2295 CCM 145 HP 05/2000 - 10/2002
2.8 2792 CCM 174 HP 11/1995 - 07/2000
1.9 TDi 1896 CCM 90 HP 09/1996 - 03/2006
1.9 TDi 1896 CCM 116 HP 05/2000 - 03/2006
SEAT
ALHAMBRA VAN (7V8, 7V9)
Description Cylinder Capacity Horse Power Year
2.0 1984 CCM 116 HP 03/1996 - 03/2010
TDI 1896 CCM 90 HP 03/1996 - 03/2010
TDI 1896 CCM 110 HP 09/1997 - 02/2002
TDI 1896 CCM 116 HP 06/2000 - 03/2010
1.9 TDI 1896 CCM 131 HP 11/2002 - 11/2008
ALHAMBRA (7V8, 7V9)
Description Cylinder Capacity Horse Power Year
2.0 i 1984 CCM 115 HP 04/1996 - 03/2010
1.9 TDI 1896 CCM 90 HP 04/1996 - 03/2010
1.9 TDI 1896 CCM 110 HP 08/1996 - 06/2000
1.8 T 20V 1781 CCM 150 HP 10/1997 - 03/2010
1.9 TDI 1896 CCM 115 HP 06/2000 - 03/2010
1.9 TDI 1896 CCM 131 HP 11/2002 - 11/2008
1.9 TDI 1896 CCM 150 HP 05/2005 - 05/2007
2.0 TDI 1968 CCM 140 HP 11/2005 - 03/2010
VW
SHARAN (7M8, 7M9, 7M6)
Description Cylinder Capacity Horse Power Year
1.9 TDI 1896 CCM 90 HP 09/1995 - 03/2010
2.0 1984 CCM 115 HP 09/1995 - 03/2010
2.8 VR6 2792 CCM 174 HP 09/1995 - 04/2000
2.8 VR6 Syncro 2792 CCM 174 HP 11/1996 - 04/2000
1.9 TDI 1896 CCM 110 HP 09/1996 - 04/2000
1.8 T 20V 1781 CCM 150 HP 09/1997 - 03/2010
1.9 TDI 1896 CCM 115 HP 04/2000 - 03/2010
SHARAN Box Body/MPV (7M_)
Description Cylinder Capacity Horse Power Year
2.0 (7M8, 7M9) 1984 CCM 116 HP 09/1996 - 07/2002
2.8 VR6 (7M8) 2792 CCM 174 HP 09/1996 - 04/2000
1.9 TDI (7M8, 7M9) 1896 CCM 90 HP 09/1996 - 05/2003
1.9 TDI (7M8) 1896 CCM 110 HP 09/1996 - 05/2003
1.9 TDI (7M6, 7M9) 1896 CCM 116 HP 04/2000 - 03/2010

The Apec Blue SDK6217 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 288 mm outer diameter, 25 mm brake disc thickness, and 68 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 288
Brake Disc Thickness [mm] : 25
Height [mm] : 55
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 68
Number of Holes : 5
Test Mark : 90R-02C0349/0463
  • Vendor APEC BLUE
  • SKU SDK6217
  • Barcode 5028906095673
  • FORD : 1001093 1045994 1143640 1143641 1526686
  • SEAT : 7M0615301E 7M0615301G 95VWX1125B1D 95VWX1125BD 95WX1125BC
  • VW : 7M0615301E 7M0615301G 95VWX1125B1D 95VWX1125BD 95WX1125BC
  • APEC : DSK939
  • APEC : SDK6217
  • BORG & BECK : BBD4071
  • BORG & BECK : BBD5323
  • BOSCH : 0 986 478 893
  • BOSCH : 0 986 479 B57
  • FEBI BILSTEIN : 14160
  • HELLA : 8DD 355 104-481
  • MEYLE : 115 521 0033
  • MEYLE : 115 521 0033/PD
  • MINTEX : MDC1017
  • National : NBD857
  • SKF : VKBD 80838 V1
  • TEXTAR : 92074203
  • VALEO : 672920
