APEC BLUE

Apec Blue SDK6222 Brake Disc

SKU: SDK6222

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£21.51 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CHRYSLER

TACUMA Mk II (GS_, NS_)

Description	Cylinder Capacity	Horse Power	Year
3.3 i	3301 CCM	158 HP	01/1995 - 03/2001
2.5 TD	2499 CCM	116 HP	01/1995 - 03/2001
2.0 i	1995 CCM	133 HP	01/1995 - 03/2001

VOYAGER Mk III (RG, RS)

Description	Cylinder Capacity	Horse Power	Year
2.4	2429 CCM	147 HP	02/2000 - 12/2008
3.3	3301 CCM	174 HP	02/2000 - 12/2008
2.5 CRD	2499 CCM	141 HP	02/2000 - 12/2008
2.8 CRD	2777 CCM	150 HP	06/2004 - 12/2008

VOYAGER / GRAND VOYAGER IV (RG)

Description	Cylinder Capacity	Horse Power	Year
2.5 CRD	2499 CCM	143 HP	01/2001 - 02/2008
3.3	3301 CCM	174 HP	02/2000 - 08/2007

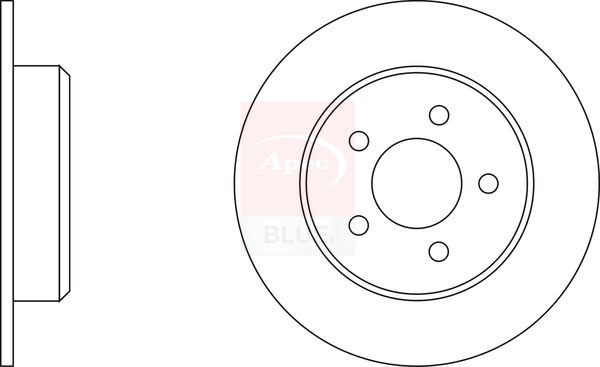

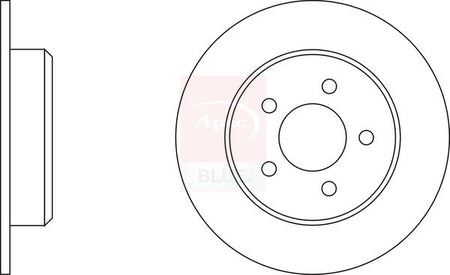

The Apec Blue SDK6222 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 290 mm outer diameter, 12 mm brake disc thickness, and 72 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : solid

Outer Diameter [mm] : 290

Brake Disc Thickness [mm] : 12

Height [mm] : 56

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 72

Number of Holes : 5

Test Mark : 90R-02C0357/0700

APEC : DSK2079
APEC : SDK6222
BLUE PRINT : ADA104327
BORG & BECK : BBD4734
BOSCH : 0 986 479 102
FEBI BILSTEIN : 108523
HELLA : 8DD 355 107-901
MEYLE : 44-15 523 0003
MINTEX : MDC1553
National : NBD1155
SKF : VKBD 90666 S2
TEXTAR : 92108400

Apec Blue SDK6222 Brake Disc
