Apec Blue SDK6229 Brake Disc - 1
Apec Blue SDK6229 Brake Disc - 1
APEC BLUE

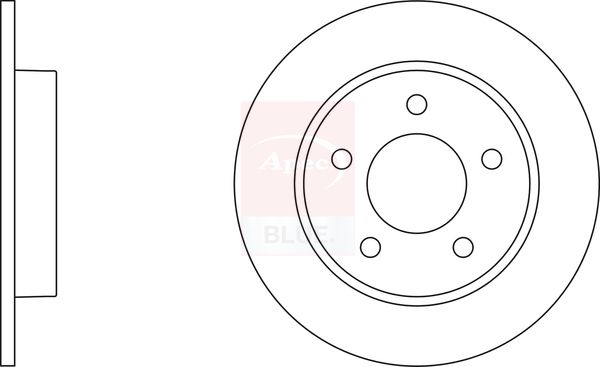

Apec Blue SDK6229 Brake Disc

SKU: SDK6229
Your selected vehicle
Out of stock
Out of Stock
£17.69 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
3 Saloon (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK12) 1598 CCM 105 HP 02/2004 - 06/2009
1.6 DI Turbo (BK12Y) 1560 CCM 109 HP 06/2004 - 06/2009
3 (BK)
Description Cylinder Capacity Horse Power Year
1.6 (BK14) 1598 CCM 105 HP 10/2003 - 06/2009
1.6 DI Turbo 1560 CCM 109 HP 06/2004 - 06/2009
1.3 (BK14) 1349 CCM 84 HP 10/2003 - 06/2009
1.6 MZ-CD 1560 CCM 90 HP 06/2006 - 12/2009
3 (BL)
Description Cylinder Capacity Horse Power Year
1.6 MZR CD (BL14) 1560 CCM 116 HP 09/2010 - 05/2013
1.6 MZR (BL14) 1598 CCM 105 HP 12/2008 - 09/2014
1.6 MZ-CD (BL14) 1560 CCM 109 HP 12/2008 - 05/2013
1.6 MZR 1598 CCM 107 HP 01/2010 - 12/2013
3 Saloon (BL)
Description Cylinder Capacity Horse Power Year
1.6 MZR CD (BL14) 1560 CCM 116 HP 09/2010 - 05/2013
1.6 MZR (BL12) 1598 CCM 105 HP 12/2008 - 09/2014
1.6 MZR CD (BL12) 1560 CCM 109 HP 12/2008 - 05/2013

The Apec Blue SDK6229 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 265 mm outer diameter, 11 mm brake disc thickness, and 72 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 265
Brake Disc Thickness [mm] : 11
Height [mm] : 41
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 72
Number of Holes : 5
Test Mark : 90R-02C0355/0101
  • Vendor APEC BLUE
  • SKU SDK6229
  • Barcode 5028906095796
  • MAZDA : BP4Y26251B BP4Y26251C BP4Y26251D C24Y26251A C24Y26251B C24Y26251C C24Y26251C9A C24Y26251D
  • APEC : DSK2196
  • APEC : SDK6229
  • BLUE PRINT : ADBP430010
  • BLUE PRINT : ADM543115
  • BORG & BECK : BBD4448
  • BOSCH : 0 986 479 C77
  • BOSCH : 0 986 479 S50
  • DELPHI : BG4200
  • Fahren : FBD6229
  • FEBI BILSTEIN : 175209
  • FEBI BILSTEIN : 24619
  • HELLA : 8DD 355 110-901
  • MEYLE : 35-15 523 0022
  • MEYLE : 35-15 523 0022/PD
  • MINTEX : MDC1908
  • NAPA : NBD5597
  • National : NBD1512
  • SKF : VKBD 90740 S2
  • TEXTAR : 92130500
  • VALEO : 672941
