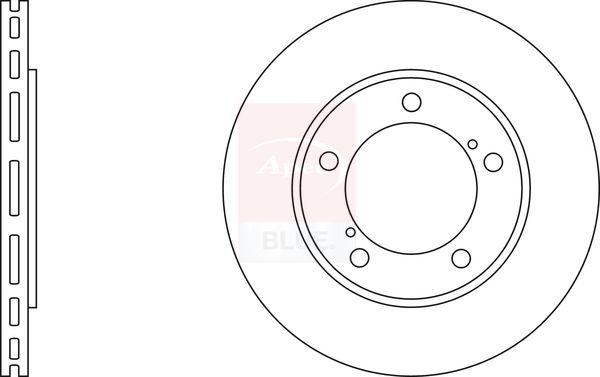

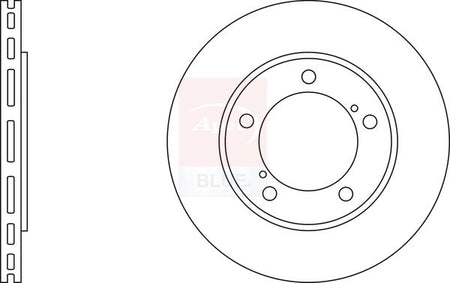

Apec Blue SDK6430 Brake Disc - 1
Apec Blue SDK6430 Brake Disc - 2
Apec Blue SDK6430 Brake Disc - 3
Apec Blue SDK6430 Brake Disc - 1
Apec Blue SDK6430 Brake Disc - 2
Apec Blue SDK6430 Brake Disc - 3
APEC BLUE

Apec Blue SDK6430 Brake Disc

SKU: SDK6430
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£26.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI
GRAND VITARA I (FT, HT)
Description Cylinder Capacity Horse Power Year
2.5 V6 24V 4x4 (TD62, SQ625) 2493 CCM 144 HP 04/1998 - 07/2003
2.0 4x4 (SQ420) 1995 CCM 128 HP 05/1999 - 09/2005
2.0 TD 4x4 (SQ420D) 1998 CCM 87 HP 03/1998 - 07/2003
2.0 HDI 110 16V 4x4 (SQ420D, TD83V, JA420WD) 1997 CCM 109 HP 07/2001 - 09/2005
2.7 4x4 (JA627, SQ627W2) 2736 CCM 173 HP 09/2001 - 07/2003
2.5 V6 24V 4x4 (SQ625) 2493 CCM 158 HP 08/2004 - 11/2005
2.0 4x4 (SQ 420) 1995 CCM 140 HP 04/1998 - 08/2005
2.0 TD 4x4 (SQ 420D) 1998 CCM 86 HP 04/2000 - 09/2005
2.0 HDI 110 4x4 (SQ420D, TD82V) 1997 CCM 109 HP 02/2001 - 12/2003
2.0 4x4 (SQ 420) 1995 CCM 132 HP 08/1998 - 11/2004
2.5 V6 24V 4x4 2493 CCM 160 HP 09/2003 - 09/2005
GRAND VITARA I Open Off-Road Vehicle (GT)
Description Cylinder Capacity Horse Power Year
1.6 4x4 (SQ416) 1590 CCM 94 HP 03/1998 - 07/2003
GRAND VITARA II (JT, TE, TD)
Description Cylinder Capacity Horse Power Year
2.7 All-wheel Drive (JB627) 2737 CCM 188 HP 04/2005 - 08/2008

The Apec Blue SDK6430 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 309 mm outer diameter, 22 mm brake disc thickness, and 108 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 309
Brake Disc Thickness [mm] : 22
Height [mm] : 29
Bolt Hole Circle Ø [mm] : 140
Centering Diameter [mm] : 108
Number of Holes : 5
Test Mark : 90R-02C0349/0935
  • Vendor APEC BLUE
  • SKU SDK6430
  • Barcode 5028906134396
  • SUZUKI : 5521165D10 5521165D11 5521165D12 5521165D13 5521165D14 5521165D21 5521167D01
  • APEC : DSK2346
  • APEC : SDK6430
  • BLUE PRINT : ADK84312
  • BORG & BECK : BBD4688
  • BORG & BECK : BBD5219
  • BOSCH : 0 986 478 839
  • FEBI BILSTEIN : 28436
  • HELLA : 8DD 355 114-901
  • MEYLE : 33-15 521 0006
  • MINTEX : MDC1591
  • NAPA : NBD5147
  • National : NBD1213
  • SKF : VKBD 80569 V2
  • TEXTAR : 92170503
