APEC BLUE

Apec Blue SDK6483 Brake Disc

SKU: SDK6483

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£28.15 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

CARBODIES

FX FAIRWAY

Description	Cylinder Capacity	Horse Power	Year
2.7 TD	2663 CCM	86 HP	01/1987 - 12/1996

FX4R

Description	Cylinder Capacity	Horse Power	Year
2.25 D	2286 CCM	60 HP	01/1982 - 12/1985

LTI

Description	Cylinder Capacity	Horse Power	Year
2.7 TD	2664 CCM	82 HP	From 01/1997
2.4 TDi	2402 CCM	90 HP	From 10/2002
2.5 TD	2499 CCM	102 HP	From 01/2006
D	2776 CCM	110 HP	From 10/2015

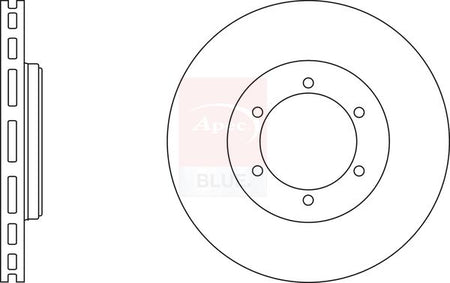

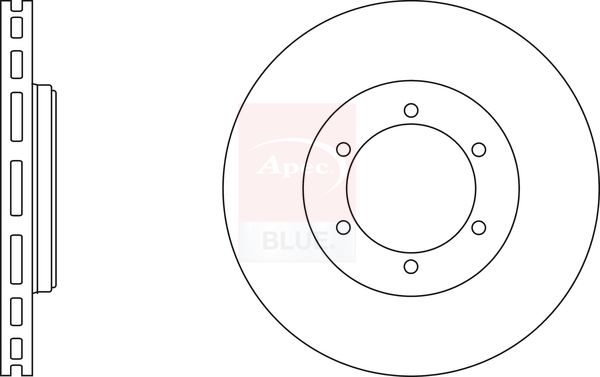

The Apec Blue SDK6483 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 278 mm outer diameter, 24 mm brake disc thickness, and 95 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 278

Brake Disc Thickness [mm] : 24

Height [mm] : 41

Bolt Hole Circle Ø [mm] : 116

Centering Diameter [mm] : 95

Number of Holes : 6

Test Mark : 90R-02C0349/0725

Apec Blue SDK6483 Brake Disc
