Apec Blue SDK6496 Brake Disc - 1
Apec Blue SDK6496 Brake Disc - 2
Apec Blue SDK6496 Brake Disc - 1
Apec Blue SDK6496 Brake Disc - 2
APEC BLUE

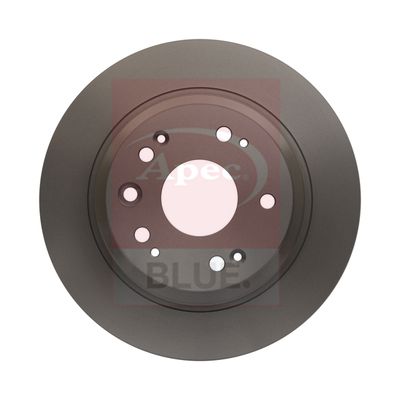

Apec Blue SDK6496 Brake Disc

SKU: SDK6496
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£22.49 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HONDA
ACCORD VII Tourer (CM, CN)
Description Cylinder Capacity Horse Power Year
2.0 (CM1) 1998 CCM 155 HP 04/2003 - 05/2008
2.4 (CM2) 2354 CCM 190 HP 04/2003 - 05/2008
2.2 i-CTDi (CN2) 2204 CCM 140 HP 01/2004 - 05/2008
STEPWGN (LA-RF_, UA-RF_)
Description Cylinder Capacity Horse Power Year
2.0 (RF3, RF5) 1998 CCM 160 HP 10/2000 - 09/2005
2.0 4WD (RF4) 1998 CCM 160 HP 10/2000 - 09/2005
STEPWGN (DBA-RG_)
Description Cylinder Capacity Horse Power Year
2.0 (RG1) 1998 CCM 155 HP 10/2005 - 09/2009
2.0 4WD (RG2) 1998 CCM 155 HP 10/2005 - 09/2009
STEPWGN (DBA-RK_)
Description Cylinder Capacity Horse Power Year
2.0 i-VTEC (RK5, RK1) 1997 CCM 150 HP 10/2009 - 03/2015

The Apec Blue SDK6496 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 282 mm outer diameter, 9 mm brake disc thickness, and 64 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 282
Brake Disc Thickness [mm] : 9
Height [mm] : 61
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 64
Number of Holes : 5
Test Mark : 90R-02C0357/0578
  • Vendor APEC BLUE
  • SKU SDK6496
  • Barcode 5028906135058
  • HONDA : 42510SLJ020 42510SZ3900 42510SZ3J00
  • APEC : DSK2494
  • APEC : SDK6496
  • BLUE PRINT : ADH24393
  • BORG & BECK : BBD4612
  • BOSCH : 0 986 479 A91
  • Fahren : FBD6496
  • FEBI BILSTEIN : 170706
  • HELLA : 8DD 355 119-041
  • MINTEX : MDC1858
  • NAPA : NBD5770
  • National : NBD1390
  • SKF : VKBD 90621 S2
  • TEXTAR : 92165803
