Apec Blue SDK6509 Brake Disc
Your selected vehicle
Regular price
£28.60
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

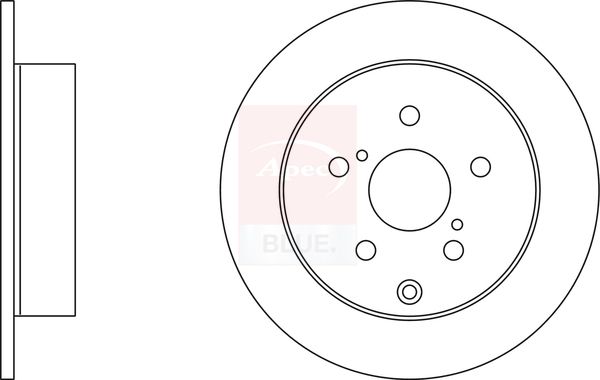

The Apec Blue SDK6509 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 290 mm outer diameter, 10 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Brake Disc Type :
solid
Outer Diameter [mm] :
290
Brake Disc Thickness [mm] :
10
Height [mm] :
57
Bolt Hole Circle Ø [mm] :
114
Centering Diameter [mm] :
62
Number of Holes :
5
Test Mark :
90R-02C0357/0684
- Vendor APEC BLUE
- SKU SDK6509
- TOYOTA : 424310F010
- APEC : DSK2523
- APEC : SDK6509
- BLUE PRINT : ADT343196
- BORG & BECK : BBD4602
- BOSCH : 0 986 479 448
- Fahren : FBD6509
- FEBI BILSTEIN : 27238
- HELLA : 8DD 355 119-021
- MEYLE : 30-15 523 0082
- MINTEX : MDC1840
- NAPA : NBD5401
- National : NBD1454
- SKF : VKBD 90391 S2
- TEXTAR : 92164803
