Apec Blue SDK6525 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: SDK6525

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£34.46 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

LEXUS

GS (_S19_)

Description	Cylinder Capacity	Horse Power	Year
450h (GRS191_, GWS191_, GRS191R, GWS191R)	3456 CCM	345 HP	02/2006 - 11/2011
300 (GRS190_, GRS190R)	2995 CCM	249 HP	04/2005 - 11/2011
430 (UZS190_, UZS190R)	4293 CCM	283 HP	04/2005 - 11/2011
460 (URS190_, URS190R)	4608 CCM	347 HP	09/2007 - 11/2011

IS II (_E2_)

Description	Cylinder Capacity	Horse Power	Year
200d (ALE20_, ALE20R)	2231 CCM	150 HP	07/2010 - 07/2012
250 (GSE20)	2499 CCM	208 HP	08/2005 - 03/2013
220d (ALE20)	2231 CCM	177 HP	08/2005 - 07/2012

IS C (GSE2_)

Description	Cylinder Capacity	Horse Power	Year
250 (GSE20)	2499 CCM	208 HP	04/2009 - 06/2015

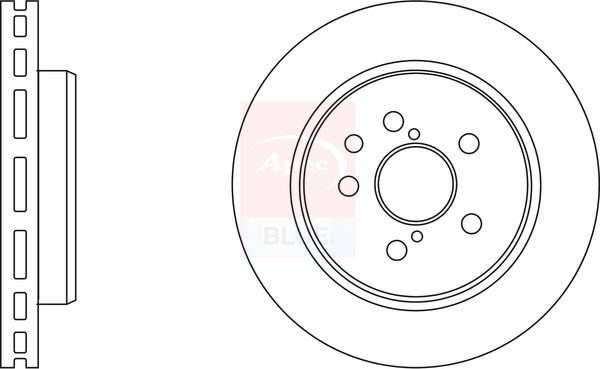

The Apec Blue SDK6525 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 310 mm outer diameter, 18 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 310

Brake Disc Thickness [mm] : 18

Height [mm] : 68

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 62

Number of Holes : 5

Test Mark : 90R-02C0443/1398
