APEC BLUE

Apec Blue SDK6539 Brake Disc

SKU: SDK6539

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£34.72 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

LEXUS

RX (_U3_)

Description	Cylinder Capacity	Horse Power	Year
300 (MCU35_, MCU35R)	2995 CCM	204 HP	05/2003 - 12/2008
350 AWD (GSU35_, GSU35R)	3456 CCM	276 HP	02/2006 - 12/2008
330 AWD (MCU38)	3311 CCM	232 HP	04/2003 - 12/2008
330 (MCU38_, MCU38R)	3311 CCM	232 HP	04/2003 - 01/2006
400h (MHU38_, MHU38R)	3311 CCM	272 HP	09/2005 - 12/2008
400h AWD (MHU38_, MHU38R)	3311 CCM	272 HP	09/2005 - 12/2008
350 (GSU30_)	3456 CCM	276 HP	01/2006 - 12/2008

RX (_L1_)

Description	Cylinder Capacity	Horse Power	Year
350 AWD (GGL15_, GGL15R)	3456 CCM	277 HP	12/2008 - 08/2015
350 (GGL10_, GGL10W)	3456 CCM	275 HP	01/2009 - 09/2015

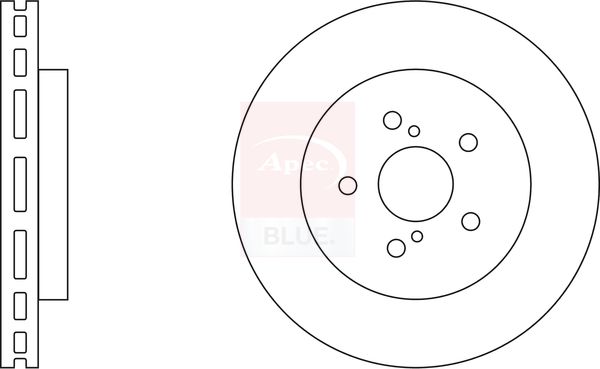

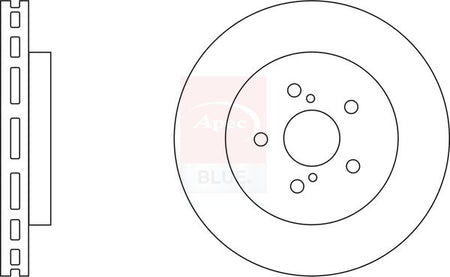

The Apec Blue SDK6539 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 319 mm outer diameter, 28 mm brake disc thickness, and 62 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 319

Brake Disc Thickness [mm] : 28

Height [mm] : 49

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 62

Number of Holes : 5

Test Mark : 90R-02C0349/0846

APEC : DSK2580
APEC : SDK6539
BLUE PRINT : ADT343192
BORG & BECK : BBD4509
BORG & BECK : BBD4683
BOSCH : 0 986 479 722
FEBI BILSTEIN : 108487
HELLA : 8DD 355 114-981
MEYLE : 30-15 521 0122/PD
MINTEX : MDC1856
NAPA : NBD5619
National : NBD1254
SKF : VKBD 80477 V2
TEXTAR : 92171503

Apec Blue SDK6539 Brake Disc
