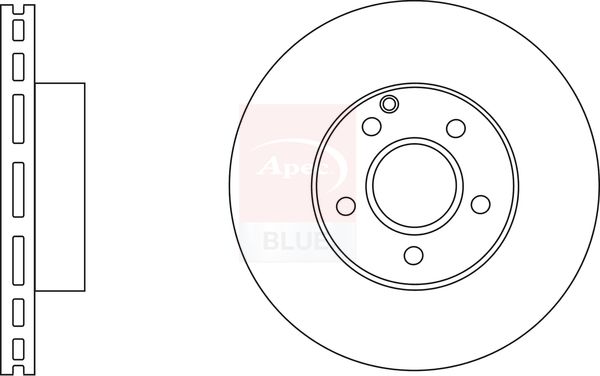

Apec Blue SDK6542 Brake Disc - 1
Apec Blue SDK6542 Brake Disc - 1
APEC BLUE

Apec Blue SDK6542 Brake Disc

SKU: SDK6542
Your selected vehicle
Out of stock
Out of Stock
£30.77 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
C-CLASS (W204)
Description Cylinder Capacity Horse Power Year
C 180 CDI (204.000) 2143 CCM 120 HP 04/2010 - 03/2014
C 200 CDI (204.001) 2143 CCM 136 HP 11/2009 - 03/2014
C 200 CDI (204.007, 204.006) 2148 CCM 136 HP 01/2007 - 12/2009
C 180 Kompressor (204.046) 1796 CCM 156 HP 01/2007 - 01/2009
C-CLASS T-Model (S204)
Description Cylinder Capacity Horse Power Year
C 200 CDI (204.201) 2143 CCM 136 HP 08/2010 - 08/2014
C 180 CGI (204.249) 1796 CCM 156 HP 11/2009 - 08/2014
C 180 CDI (204.200) 2143 CCM 120 HP 04/2010 - 08/2014
C 180 Kompressor (204.246) 1796 CCM 156 HP 08/2007 - 08/2014
C 200 CDI (204.207) 2148 CCM 136 HP 08/2007 - 12/2009
C-CLASS Coupe (C204)
Description Cylinder Capacity Horse Power Year
C 180 (204.349) 1796 CCM 156 HP From 06/2011
C 180 (204.331) 1595 CCM 156 HP From 01/2013

The Apec Blue SDK6542 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 288 mm outer diameter, 25 mm brake disc thickness, and 67 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 288
Brake Disc Thickness [mm] : 25
Height [mm] : 64
Bolt Hole Circle Ø [mm] : 112
Centering Diameter [mm] : 67
Number of Holes : 5
Test Mark : 90R-02C0448/1334
  • Vendor APEC BLUE
  • SKU SDK6542
  • Barcode 5028906135515
  • MERCEDES-BENZ : 0004211912 2044210012 A0004211912 A2044210012
  • APEC : DSK2585
  • APEC : SDK6542
  • BLUE PRINT : ADU174313
  • BORG & BECK : BBD4502
  • BORG & BECK : BBD4721
  • BOSCH : 0 986 479 406
  • BOSCH : 0 986 479 S83
  • Fahren : FBD6542
  • FEBI BILSTEIN : 30556
  • HELLA : 8DD 355 113-861
  • MEYLE : 015 521 2098
  • MEYLE : 083 521 2098/PD
  • MINTEX : MDC2057C
  • NAPA : NBD5202
  • National : NBD1550
  • SKF : VKBD 80143 V2
  • TEXTAR : 92159603
