APEC BLUE

Apec Blue SDK6578 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: SDK6578

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

In stock

Orders placed by 17:00 are usually dispatched the same working day

£40.86 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MAZDA

CX-7 (ER)

Description	Cylinder Capacity	Horse Power	Year
2.2 MZR-CD AWD (ER10A)	2184 CCM	163 HP	01/2012 - 03/2013
2.3 MZR DISI Turbo AWD (ER3P)	2261 CCM	258 HP	10/2007 - 08/2009
2.3 MZR DISI Turbo AWD (ER3P)	2261 CCM	260 HP	06/2009 - 03/2013
2.2 MZR-CD AWD (ER10A)	2184 CCM	173 HP	07/2009 - 03/2013

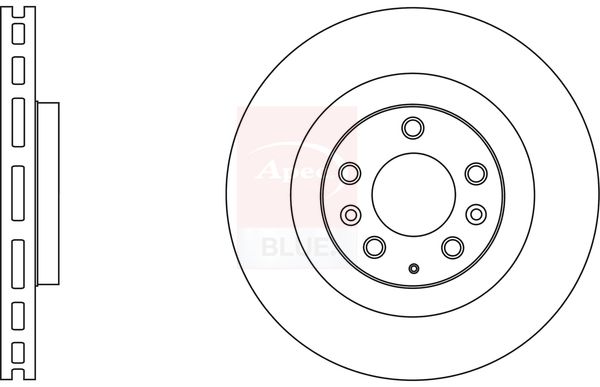

The Apec Blue SDK6578 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 320 mm outer diameter, 28 mm brake disc thickness, and 72 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 320

Brake Disc Thickness [mm] : 28

Height [mm] : 48

Bolt Hole Circle Ø [mm] : 114

Centering Diameter [mm] : 72

Number of Holes : 5

Test Mark : 90R-02C0349/0659
