Apec Blue SDK6591 Brake Disc - 1
Apec Blue SDK6591 Brake Disc - 1
APEC BLUE

Apec Blue SDK6591 Brake Disc

SKU: SDK6591
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£44.23 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MITSUBISHI
PAJERO/SHOGUN IV (V8_W, V9_W)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 190 HP From 02/2007
3.8 V6 (V87W, V97W) 3828 CCM 250 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 160 HP From 02/2007
3.2 DI-D (V88W, V98W) 3200 CCM 170 HP From 02/2007
3.2 DI-D 4WD (V98W, V88W) 3200 CCM 200 HP From 01/2009
3.8 V6 (V87W) 3828 CCM 248 HP From 10/2006
3.2 DI-D 3200 CCM 167 HP From 02/2007
3.2 4WD (V98W) 3200 CCM 192 HP From 10/2016
PAJERO/SHOGUN IV Van (V9_, V8_, V8_V)
Description Cylinder Capacity Horse Power Year
3.2 DI-D 3200 CCM 160 HP From 11/2006
3.2 TD 4WD (V88V, V98V) 3200 CCM 200 HP From 01/2010
3.2 DI-D 4WD (V88W, V98W) 3200 CCM 190 HP From 02/2007

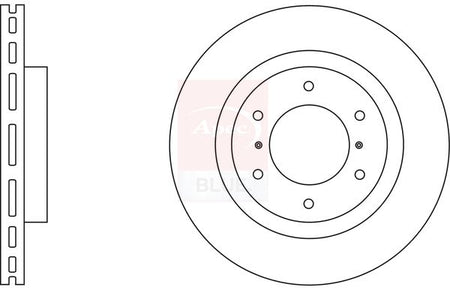

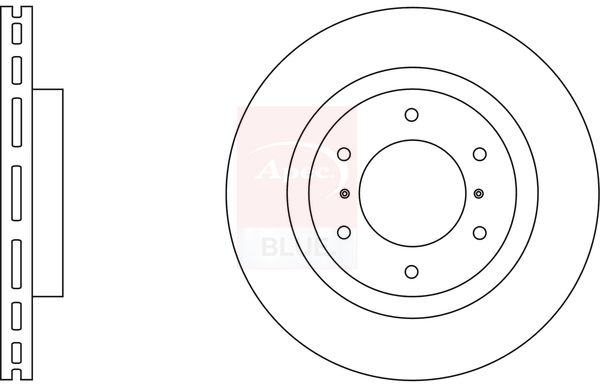

The Apec Blue SDK6591 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 332 mm outer diameter, 28 mm brake disc thickness, and 94 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 332
Brake Disc Thickness [mm] : 28
Height [mm] : 56
Bolt Hole Circle Ø [mm] : 140
Centering Diameter [mm] : 94
Number of Holes : 6
Test Mark : 90R-02C0349/1407
  • Vendor APEC BLUE
  • SKU SDK6591
  • Barcode 5028906136000
  • MITSUBISHI : 4615A038
  • APEC : DSK2668
  • APEC : SDK6591
  • BLUE PRINT : ADC443114
  • BORG & BECK : BBD4754
  • BOSCH : 0 986 479 782
  • Fahren : FBD6591
  • FEBI BILSTEIN : 170599
  • HELLA : 8DD 355 119-081
  • MEYLE : 32-15 521 0027/PD
  • MINTEX : MDC2039
  • NAPA : NBD5629
  • National : NBD1800
  • SKF : VKBD 80433 V1
  • TEXTAR : 92167203
