Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Apec Blue SDK6601 Brake Disc - 1
Apec Blue SDK6601 Brake Disc - 1
APEC BLUE

Apec Blue SDK6601 Brake Disc

SKU: SDK6601
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£48.08 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
SANTA FÉ II (CM)
Description Cylinder Capacity Horse Power Year
2.0 CRDi 1995 CCM 150 HP 12/2010 - 12/2012
2.0 CRDi 4x4 1995 CCM 150 HP 12/2010 - 12/2012
2.7 4x4 2656 CCM 170 HP 03/2006 - 12/2012
2.7 2656 CCM 170 HP 03/2006 - 12/2012
2.2 CRDi 2188 CCM 139 HP 03/2006 - 12/2012
2.2 CRDi 4x4 2188 CCM 139 HP 03/2006 - 12/2012
2.7 V6 GLS 2656 CCM 189 HP 03/2006 - 12/2009
2.7 V6 GLS 4x4 2656 CCM 189 HP 03/2006 - 12/2009
2.2 CRDi GLS 2188 CCM 150 HP 03/2006 - 12/2009
2.2 CRDi GLS 4x4 2188 CCM 150 HP 03/2006 - 12/2009
2.2 CRDi 2188 CCM 155 HP 03/2006 - 12/2009
2.2 CRDi 4x4 2188 CCM 155 HP 03/2006 - 12/2009
SANTA FÉ II SUV Van (CM)
Description Cylinder Capacity Horse Power Year
CRDi 2188 CCM 155 HP 09/2006 - 12/2011

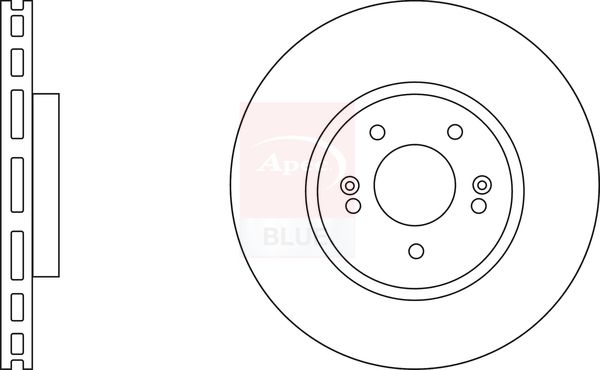

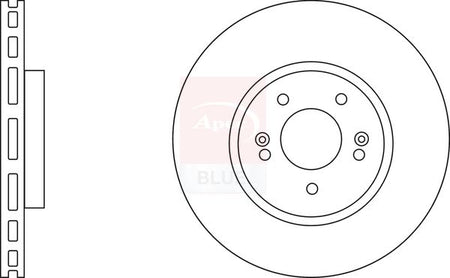

The Apec Blue SDK6601 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 321 mm outer diameter, 28 mm brake disc thickness, and 69 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 321
Brake Disc Thickness [mm] : 28
Height [mm] : 49
Bolt Hole Circle Ø [mm] : 114
Centering Diameter [mm] : 69
Number of Holes : 5
Test Mark : 90R-02C0349/0233
  • Vendor APEC BLUE
  • SKU SDK6601
  • Barcode 5028906136109
  • HYUNDAI : 517122B700
  • APEC : DSK2693
  • APEC : SDK6601
  • BLUE PRINT : ADG043122
  • BORG & BECK : BBD5906S
  • BOSCH : 0 986 479 536
  • FEBI BILSTEIN : 29350
  • HELLA : 8DD 355 118-161
  • MEYLE : 37-15 521 0033
  • MEYLE : 37-15 521 0033/PD
  • MINTEX : MDC2023
  • NAPA : NBD5336
  • National : NBD1542
  • SKF : VKBD 81092 V1
  • TEXTAR : 92166003
  • TEXTAR : 92166005
  • VALEO : 672968
