APEC BLUE

Apec Blue SDK6636 Brake Disc

SKU: SDK6636

Your selected vehicle

Out of stock

Out of Stock

£29.15 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA

HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)

Description	Cylinder Capacity	Horse Power	Year
2.5 D 4WD (KUN25)	2494 CCM	102 HP	03/2005 - 05/2015
2.5 D-4D 4WD (KUN25_, KUN25R)	2494 CCM	120 HP	06/2006 - 05/2015
3.0 D-4D 4WD (KUN26)	2982 CCM	171 HP	08/2005 - 09/2015
2.5 D-4D 4WD (KUN25)	2494 CCM	144 HP	12/2007 - 05/2015
2.5 D-4D 4WD (KUN25_)	2494 CCM	128 HP	11/2004 - 12/2005
3.0 D-4D 4WD (KUN26)	2982 CCM	197 HP	05/2008 - 12/2012
3.0 D-4D 4WD (KUN26)	2982 CCM	169 HP	08/2005 - 05/2015

The Apec Blue SDK6636 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 297 mm outer diameter, 25 mm brake disc thickness, and 15 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Brake Disc Type : Vented

Outer Diameter [mm] : 297

Brake Disc Thickness [mm] : 25

Height [mm] : 67

Bolt Hole Circle Ø [mm] : 140

Wheel Bolt Bore Diameter [mm] : 15

Centering Diameter [mm] : 108

Number of Holes : 6

Test Mark : 90R-02C0349/1236

APEC : DSK2782
APEC : SDK6636
BLUE PRINT : ADT343211
BORG & BECK : BBD4815
BOSCH : 0 986 479 A96
Fahren : FBD6636
FEBI BILSTEIN : 108399
HELLA : 8DD 355 116-821
MEYLE : 30-15 521 0126
MINTEX : MDC2184
NAPA : NBD5284
National : NBD1733
SKF : VKBD 80346 V2
TEXTAR : 92222600

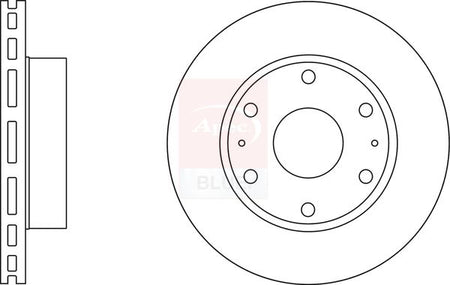

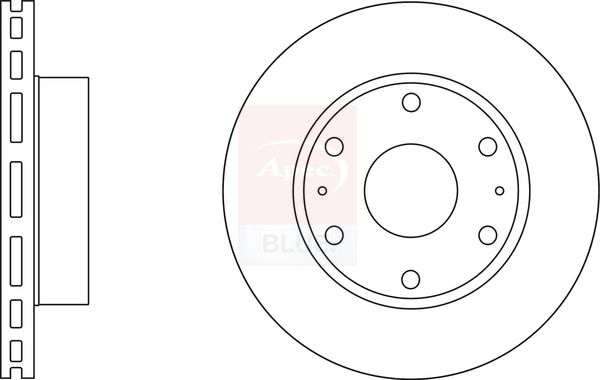

Apec Blue SDK6636 Brake Disc
