Apec Blue SDK6648 Brake Disc - 1
Apec Blue SDK6648 Brake Disc - 1
APEC BLUE

Apec Blue SDK6648 Brake Disc

SKU: SDK6648
Your selected vehicle
Only 5 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£38.40 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
RANGER (ER, EQ, R_)
Description Cylinder Capacity Horse Power Year
2.5 TD 4x4 2500 CCM 109 HP 10/1999 - 06/2006
RANGER (ET)
Description Cylinder Capacity Horse Power Year
2.5 TDCi 4x4 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 4x4 2953 CCM 156 HP 05/2006 - 07/2012
2.5 TDdi 2499 CCM 143 HP 05/2006 - 07/2012
3.0 TDCi 2953 CCM 156 HP 05/2006 - 07/2012
MAZDA
B-SERIE (UN)
Description Cylinder Capacity Horse Power Year
2.5 TD 4WD 2499 CCM 109 HP 06/1999 - 07/2006
2.5 D 4WD 2499 CCM 84 HP 12/2002 - 11/2006
2.5 D 4WD 2499 CCM 83 HP 11/1999 - 12/2001
BT-50 Platform/Chassis (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 CDVi (UNY0W3) 2500 CCM 143 HP From 12/2006
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP From 12/2006
BT-50 Pickup (CD, UN)
Description Cylinder Capacity Horse Power Year
2.5 MRZ-CD 4x4 (UNY0W3) 2499 CCM 143 HP 12/2006 - 12/2015
3.0 CDVi 4x4 (UNY0E3) 2953 CCM 156 HP 10/2006 - 12/2015
2.5 MRZ-CD (UNY0W3) 2499 CCM 143 HP 08/2006 - 06/2013

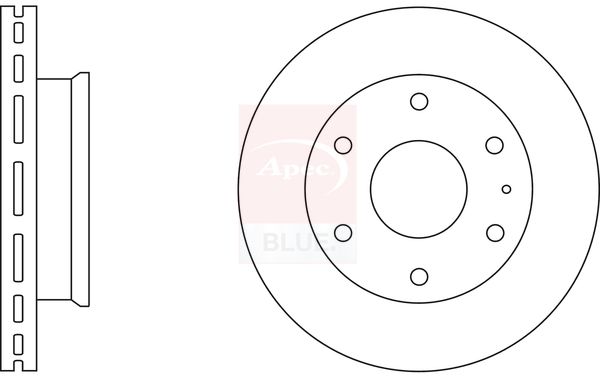

The Apec Blue SDK6648 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 289 mm outer diameter, 28 mm brake disc thickness, and 13 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 289
Brake Disc Thickness [mm] : 28
Height [mm] : 70
Bolt Hole Circle Ø [mm] : 140
Wheel Bolt Bore Diameter [mm] : 13
Centering Diameter [mm] : 98
Number of Holes : 6
Test Mark : 90R-02C0349/0452
  • Vendor APEC BLUE
  • SKU SDK6648
  • Barcode 5028906136574
  • FORD : 1490412 4429562 6M341027DA
  • MAZDA : UM5133251 UMY133251 UR6133251
  • APEC : DSK2806
  • APEC : SDK6648
  • BLUE PRINT : ADM54377
  • BORG & BECK : BBD4793
  • BORG & BECK : BBD5766S
  • BOSCH : 0 986 479 711
  • Fahren : FBD6648
  • FEBI BILSTEIN : 44104
  • HELLA : 8DD 355 129-181
  • MINTEX : MDC2217
  • NAPA : NBD5637
  • National : NBD1312
  • SKF : VKBD 80538 V1
  • TEXTAR : 92223000
