Apec Blue SDK6690 Brake Disc - 1
Apec Blue SDK6690 Brake Disc - 1
APEC BLUE

Apec Blue SDK6690 Brake Disc

SKU: SDK6690
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£40.69 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
4 RUNNER IV (_N21_)
Description Cylinder Capacity Horse Power Year
4.7 4WD (UZN215) 4663 CCM 264 HP 01/2005 - 12/2009
4.7 (UZN210) 4663 CCM 264 HP 01/2005 - 12/2009
HILUX VIGO VII Pickup (_N1_, _N2_, _N3_)
Description Cylinder Capacity Horse Power Year
2.5 D-4D (KUN15, KUN35) 2494 CCM 144 HP 01/2010 - 05/2015
2.5 D-4D 4WD (KUN25_, KUN25R) 2494 CCM 120 HP 06/2006 - 05/2015
3.0 D-4D 4WD (KUN26) 2982 CCM 171 HP 08/2005 - 09/2015
2.5 D-4D 4WD (KUN25) 2494 CCM 144 HP 12/2007 - 05/2015
2.5 D-4D 4WD (KUN25_) 2494 CCM 128 HP 11/2004 - 12/2005
3.0 D-4D 4WD (KUN26) 2982 CCM 197 HP 05/2008 - 12/2012
3.0 D-4D 4WD (KUN26) 2982 CCM 169 HP 08/2005 - 05/2015
HILUX VII Platform/Chassis (_N1_, _N2_)
Description Cylinder Capacity Horse Power Year
3.0 D 4WD (KUN26) 2982 CCM 171 HP From 02/2005
HILUX VIII Platform/Chassis (_N1_)
Description Cylinder Capacity Horse Power Year
2.4 D 4WD (GUN125_, GUN125R) 2393 CCM 150 HP From 07/2015
2.4 D (GUN112_, GUN122_, GUN135_, GUN125_) 2393 CCM 150 HP From 07/2015
HILUX VIII Pickup (_N1_)
Description Cylinder Capacity Horse Power Year
2.4 D (GUN112_, GUN122_, GUN135_, GUN120_, GUN135R,... 2393 CCM 150 HP From 05/2015
2.4 D 4WD (GUN125_, GUN125R) 2393 CCM 150 HP From 05/2015
2.8 D-4D (GUN123_, GUN136_, GUN136) 2755 CCM 177 HP From 05/2015
2.8 D-4D 4WD (GUN126_, GUN126R) 2755 CCM 177 HP From 05/2015
2.4 D (GUN135) 2393 CCM 170 HP From 10/2018
2.4 D 4WD (GUN125) 2393 CCM 170 HP From 10/2018
2.8 TD 4WD (GUN126) 2755 CCM 204 HP From 06/2020
2.8 GD-6 48V MHEV 4WD 2755 CCM 204 HP From 03/2024

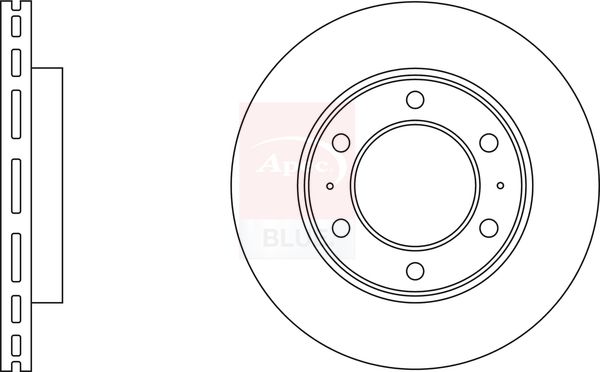

The Apec Blue SDK6690 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 319 mm outer diameter, 28 mm brake disc thickness, and 14 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 319
Brake Disc Thickness [mm] : 28
Height [mm] : 67
Bolt Hole Circle Ø [mm] : 140
Wheel Bolt Bore Diameter [mm] : 14
Centering Diameter [mm] : 108
Number of Holes : 6
Test Mark : 90R-02C0349/1183
  • Vendor APEC BLUE
  • SKU SDK6690
  • Barcode 5028906136994
  • TOYOTA : 435120K100 435120K101 4351235320 4351235321
  • APEC : DSK2898
  • APEC : SDK6690
  • BLUE PRINT : ADT343219
  • BORG & BECK : BBD5289
  • BORG & BECK : BBD5761S
  • BOSCH : 0 986 479 R46
  • BOSCH : 0 986 479 T36
  • Fahren : FBD6690
  • FEBI BILSTEIN : 108411
  • HELLA : 8DD 355 117-261
  • MEYLE : 30-15 521 0121/PD
  • MINTEX : MDC2260
  • NAPA : NBD5178
  • National : NBD1734
  • SKF : VKBD 81135 V1
  • TEXTAR : 92230400
  • TEXTAR : 92230403
