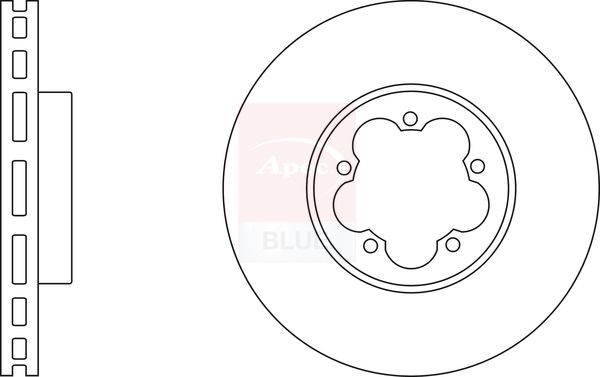

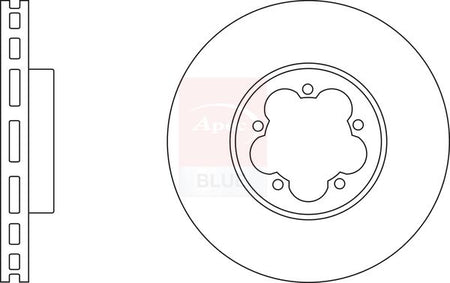

Apec Blue SDK6707 Brake Disc - 1
Apec Blue SDK6707 Brake Disc - 1
APEC BLUE

Apec Blue SDK6707 Brake Disc

SKU: SDK6707
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£39.20 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
2.3 16V RWD 2261 CCM 145 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 100 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 140 HP 04/2006 - 08/2014
3.2 TDCi RWD 3199 CCM 200 HP 09/2007 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.2 TDCi RWD 2198 CCM 135 HP 09/2011 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
2.4 TDCi RWD 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 140 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 100 HP 04/2006 - 08/2014
2.3 16V RWD 2261 CCM 145 HP 04/2006 - 08/2014
3.2 TDCi RWD 3199 CCM 200 HP 09/2007 - 08/2014
TRANSIT TOURNEO Bus
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 131 HP 07/2006 - 08/2014
2.2 2198 CCM 125 HP 10/2011 - 08/2014

The Apec Blue SDK6707 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 300 mm outer diameter, 28 mm brake disc thickness, and 12 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 28
Height [mm] : 54
Bolt Hole Circle Ø [mm] : 112
Wheel Bolt Bore Diameter [mm] : 12
Centering Diameter [mm] : 93
Number of Holes : 5
  • Vendor APEC BLUE
  • SKU SDK6707
  • Barcode 5028906137168
  • FORD : 1543340 2256891 8C1V1125AA ME8C1J1125AA
  • APEC : DSK2928
  • APEC : SDK6707
  • BLUE PRINT : ADF124330
  • BORG & BECK : BBD4520
  • BORG & BECK : BBD4562
  • BORG & BECK : BBD5341
  • FEBI BILSTEIN : 44034
  • HELLA : 8DD 355 113-281
  • MEYLE : 715 521 7042
  • MINTEX : MDC1760
  • MINTEX : MDC1760C
  • NAPA : NBD5970
  • National : NBD1870
  • SKF : VKBD 81286 V1
  • TEXTAR : 92151900
  • TEXTAR : 92151903
