Apec Blue SDK6717 Brake Disc - 1
Apec Blue SDK6717 Brake Disc - 1
APEC BLUE

Apec Blue SDK6717 Brake Disc

SKU: SDK6717
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£17.97 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SEAT
Mii (KF1, KE1)
Description Cylinder Capacity Horse Power Year
1.0 999 CCM 60 HP 10/2011 - 07/2019
1.0 999 CCM 75 HP 10/2011 - 07/2019
1.0 EcoFuel 999 CCM 68 HP 10/2012 - 07/2019
electric 83 HP From 01/2020
SKODA
CITIGO (NF1)
Description Cylinder Capacity Horse Power Year
1.0 999 CCM 60 HP 10/2011 - 08/2019
1.0 999 CCM 75 HP 10/2011 - 08/2019
1.0 CNG 999 CCM 68 HP 11/2012 - 08/2019
E-CITIGO (NE1)
Description Cylinder Capacity Horse Power Year
e iV 83 HP 09/2019 - 09/2021
VW
LOAD UP! (121, 122, BL1, BL2)
Description Cylinder Capacity Horse Power Year
e-Load Up 82 HP 12/2014 - 08/2019
1.0 EcoFuel 999 CCM 68 HP 11/2012 - 08/2020
1.0 999 CCM 60 HP 11/2012 - 11/2019
UP! (121, 122, BL1, BL2, BL3, 123)
Description Cylinder Capacity Horse Power Year
1.0 999 CCM 60 HP 08/2011 - 08/2020
1.0 999 CCM 75 HP 08/2011 - 11/2019
1.0 EcoFuel 999 CCM 68 HP 11/2012 - 11/2023
e-Up 82 HP 07/2013 - 08/2019
1.0 TSI 999 CCM 90 HP 05/2016 - 08/2019
e-Up 83 HP From 08/2019
1.0 999 CCM 65 HP 08/2020 - 11/2023

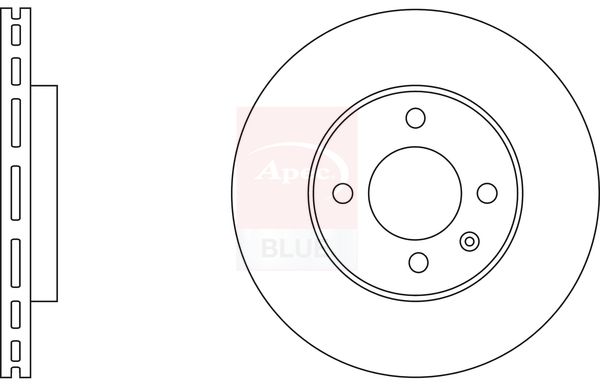

The Apec Blue SDK6717 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records vented disc construction, 256 mm outer diameter, 22 mm brake disc thickness, and 14 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : Vented
Outer Diameter [mm] : 256
Brake Disc Thickness [mm] : 22
Height [mm] : 37
Bolt Hole Circle Ø [mm] : 100
Wheel Bolt Bore Diameter [mm] : 14
Centering Diameter [mm] : 65
Number of Holes : 4
Test Mark : 90R-02C0411/0609
  • Vendor APEC BLUE
  • SKU SDK6717
  • Barcode 5028906137267
  • VW : 1S0615301 1S0615301H 1S0615301J 1S0615301L 1S0615301M
  • APEC : DSK2946
  • APEC : SDK6717
  • BLUE PRINT : ADV184351
  • BORG & BECK : BBD4390
  • BORG & BECK : BBD5236
  • BOSCH : 0 986 479 776
  • Fahren : FBD6717
  • FEBI BILSTEIN : 43841
  • HELLA : 8DD 355 118-261
  • HELLA : 8DD 355 125-391
  • MEYLE : 115 521 0006
  • MEYLE : 183 521 0006/PD
  • MINTEX : MDC2758
  • NAPA : NBD5330
  • National : NBD1792
  • SKF : VKBD 80096 V2
  • TEXTAR : 92287003
