Apec Blue SDK6727 Brake Disc - 1
Apec Blue SDK6727 Brake Disc - 1
APEC BLUE

Apec Blue SDK6727 Brake Disc

SKU: SDK6727
Your selected vehicle
Out of stock
Out of Stock
£27.25 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TRANSIT Platform/Chassis (FM_ _, FN_ _, FF_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
2.3 16V RWD 2261 CCM 145 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 140 HP 04/2006 - 08/2014
2.4 TDCi 4x4 2402 CCM 140 HP 11/2006 - 08/2014
TRANSIT Bus (FD_ _, FB_ _, FS_ _, FZ_ _, FC_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi 2198 CCM 125 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 100 HP 10/2011 - 08/2014
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.2 TDCi 2198 CCM 85 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 110 HP 04/2006 - 08/2014
2.2 TDCi 2198 CCM 130 HP 04/2006 - 08/2014
2.4 TDCi 4x4 2402 CCM 140 HP 11/2006 - 08/2014
TRANSIT Van (FA_ _)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 125 HP 09/2011 - 12/2014
2.2 TDCi RWD 2198 CCM 155 HP 10/2011 - 08/2014
2.4 TDCi RWD 2402 CCM 115 HP 04/2006 - 08/2014
2.4 TDCi RWD 2402 CCM 140 HP 04/2006 - 08/2014
2.3 16V RWD 2261 CCM 145 HP 04/2006 - 08/2014
2.4 TDCi 4x4 2402 CCM 140 HP 11/2006 - 08/2014
TRANSIT TOURNEO Bus
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 110 HP 07/2006 - 08/2014
2.2 TDCi 2198 CCM 131 HP 07/2006 - 08/2014
2.2 2198 CCM 125 HP 10/2011 - 08/2014

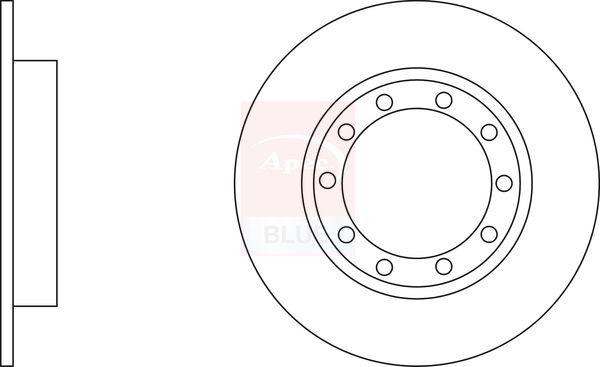

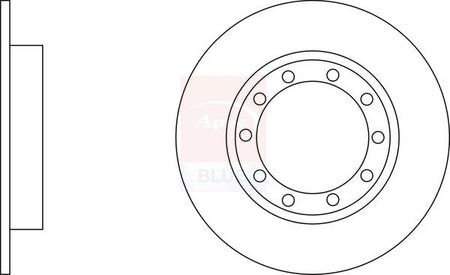

The Apec Blue SDK6727 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 284 mm outer diameter, 16 mm brake disc thickness, and 11 mm wheel bolt bore diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 284
Brake Disc Thickness [mm] : 16
Height [mm] : 44
Bolt Hole Circle Ø [mm] : 124
Wheel Bolt Bore Diameter [mm] : 11
Centering Diameter [mm] : 107
Number of Holes : 10
Test Mark : 90R-02C0355/0860
  • Vendor APEC BLUE
  • SKU SDK6727
  • Barcode 5028906137366
  • FORD : 1488311 8C1V2A315AA
  • APEC : DSK2959
  • APEC : SDK6727
  • BLUE PRINT : ADF124331
  • BORG & BECK : BBD4571
  • BORG & BECK : BBD5301
  • BOSCH : 0 986 479 A34
  • FEBI BILSTEIN : 40644
  • HELLA : 8DD 355 118-521
  • MEYLE : 715 523 0037/PD
  • MINTEX : MDC2386
  • National : NBD1887
  • TEXTAR : 93242500
