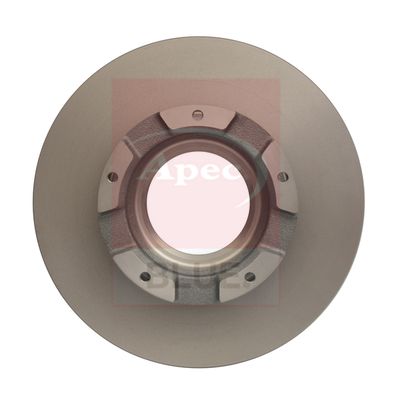

Apec Blue SDK6737 Brake Disc

SKU: SDK6737
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£47.00 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TOURNEO CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
TRANSIT CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
TRANSIT CUSTOM V362 Van (FY, FZ)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 09/2012 - 06/2016
2.2 TDCi 2198 CCM 125 HP 09/2012 - 04/2016
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 130 HP 05/2019 - 12/2023
1.0 EcoBoost PHEV 996 CCM 125 HP 04/2020 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 170 HP 05/2019 - 12/2023
2.0 EcoBlue 1995 CCM 185 HP 05/2019 - 12/2023
2.0 EcoBlue mHEV 1995 CCM 185 HP 05/2019 - 12/2023
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 12/2014 - 12/2018
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue mHEV 1995 CCM 130 HP From 05/2019
2.0 EcoBlue mHEV 1995 CCM 170 HP 05/2019 - 06/2024
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024

The Apec Blue SDK6737 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records solid disc construction, 308 mm outer diameter, 16 mm brake disc thickness, and 120 mm centering diameter. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Brake Disc Type : solid
Outer Diameter [mm] : 308
Brake Disc Thickness [mm] : 16
Supplementary Article/Supplementary Info 2 : with ABS sensor ring
Height [mm] : 69
Bolt Hole Circle Ø [mm] : 160
Centering Diameter [mm] : 120
Number of Holes : 5
  • Vendor APEC BLUE
  • SKU SDK6737
  • Barcode 5028906137465
  • FORD : 1783910 2040064 2633658 BK212A097EB
  • APEC : DSK2978
  • APEC : SDK6737
  • BLUE PRINT : ADBP430019
  • BORG & BECK : BBD6073S
  • BOSCH : 0 986 479 F62
  • Fahren : FBD6737
  • FEBI BILSTEIN : 171451
  • HELLA : 8DD 355 126-591
  • MEYLE : 715 523 0025
  • MEYLE : 715 523 0025/PD
  • MINTEX : MDC2810C
  • NAPA : NBD5645
  • National : NBD1856
  • SKF : VKBD 91316 S1
  • TEXTAR : 92292603
  • VALEO : 673008
